| Machine type | Random access, open reagent & locked reagent (optional) |
|---|
| Test speed | Constant 400 tests/hour (Mono reagent or double reagent) |
|---|
| Test principle | Colorimetric method, turbidimetry |
|---|
| Test method | 1 point end, 2 point end, Fixed-Time, Kinetics |
|---|
| Calibration type | Linear & nonlinear |
|---|
| Sample unit | Sample unit |
|---|

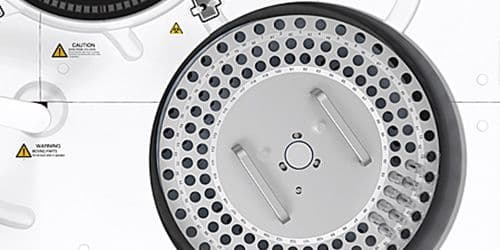

| Sample tray | 120 sample positions |
|---|
| Sample tube | Micro cup & test tube & blood collection tube can be used.(φ12 -13 )mm * (25 -100 )mm |
|---|
| Sample volume | 2-30µL step by 0.1µL |
|---|

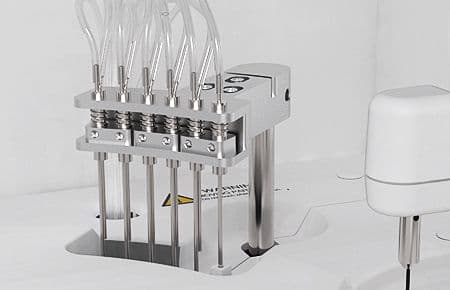

| Sample probe | Liquid surface detection, timely tracking for liquid volume.Collision avoidance |
|---|
| Sample barcode | Sample barcode reader (optional) |
|---|
| Reagent unit | Reagent unit |
|---|
| Reagent tray | 90 reagent positions, Non-stop cooling system with peltier pad inside, 24 hours 2°C-14°C, open system, could accept any reagent |
|---|
| Reagent volume | 20-300µL, step by 1µL |
|---|
| Reagent needle | Liquid surface detection, timely tracking for liquid volume.Collision avoidance. |
|---|
| Regent barcode | Regent barcode reader (optional) |
|---|
| Reaction unit | Reaction unit |
|---|

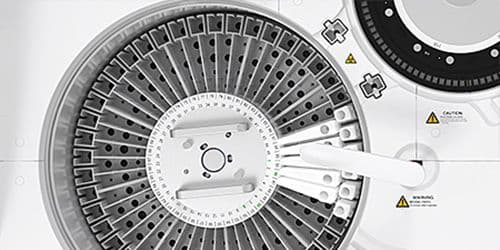

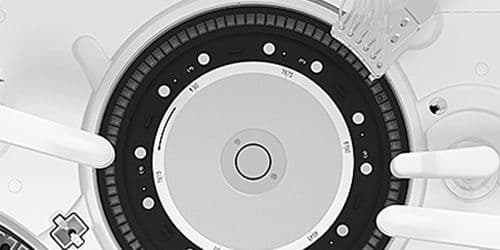

| Reaction tray | 90 reaction cuvettes, new amorphous optical plastics reaction cups, perfect transmittance |
|---|
| Reaction volume | 150µL-330µL |
|---|
| Reaction time | 10 minutes |
|---|
| Temperature | Peltier pad incubation system, reaction temperature (37°C ±0.1 °C) |
|---|
| Mixing system | Mixing system |
|---|
| Mixer | paddle-type mixing, effective reducing of carry-over |
|---|
| Optical system | Optical system |
|---|
| Light source | Halogen lamp |
|---|
| Wavelength | 340nm; 405nm; 450nm; 505nm; 546nm; 578nm; 630nm; 700nm(4 more options) |
|---|
| Absorbance range | 0-4.0 Abs |
|---|
| Resolution | 0.0001 Abs |
|---|
| Operating system | Operating system |
|---|

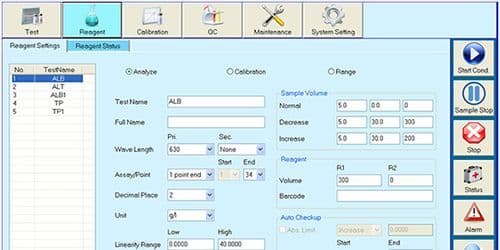

| Operation system | Windows XP, Windows 7, Windows 8, Windows 10 |
|---|
| Data processing | Automatic calibration, test combination, effective time management of reagents, serum index, whole process detection, linear expansion of enzyme, blank deduction,dirty cuvette memory , cross infection prevention, patient information memory and association input, automatic report audit, data fuzzy query, report statistics and printing, reference range grading, alarm information classification, user operation privilege classification management |
|---|
| Report printing | 6 formats optional, support custom pattern |
|---|
| Interface | TCP/IP network interface |
|---|
| Working conditions | Working conditions |
|---|
| Power supply | AC 110/220V ± 10%, 50/60 Hz 650W |
|---|
| Water consumption | 15L/hour(maximum) |
|---|
| Dimension | 1110mm * 765mm * 1150mm(L*W*H) |
|---|
| Weight | 200kg |
|---|
| Language | All languages |
|---|
