Foto produk resmi · 2 tampilan
General Lab

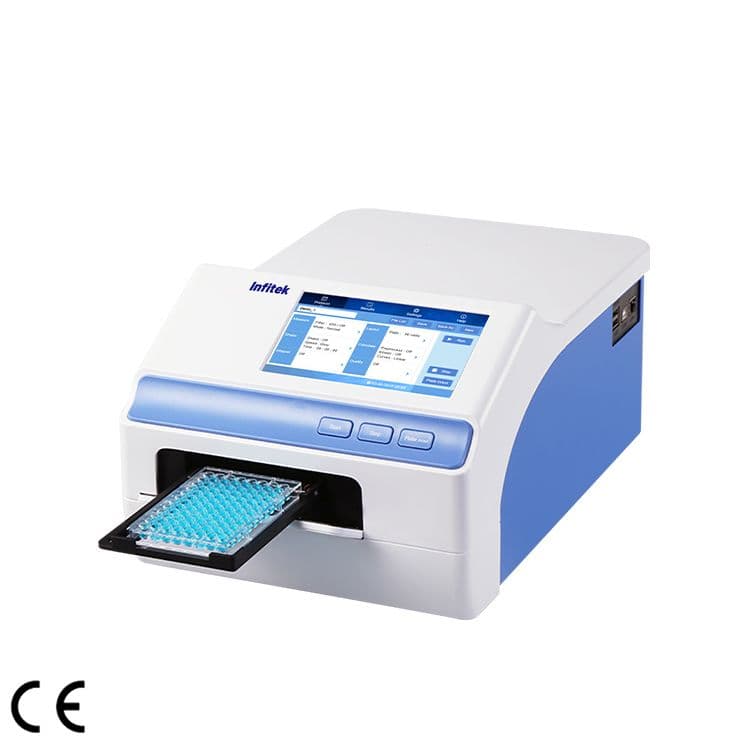

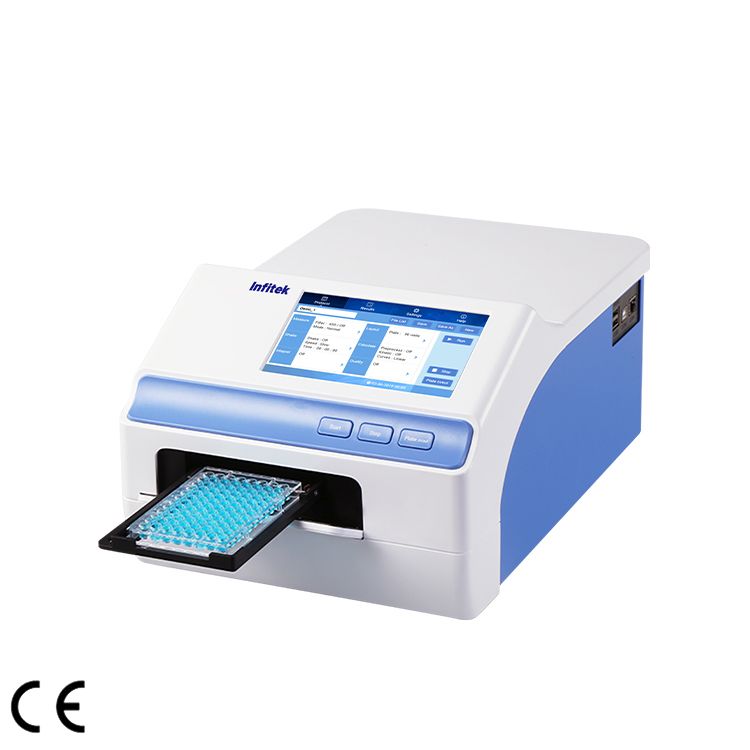

Microplate Reader MPR-100/MPR-100T dilengkapi layar sentuh kapasitif 7 inci resolusi tinggi, lampu halogen 6V/10W berumur hingga 2000 jam, rentang panjang gelombang 340nm~750nm, dan detektor photodiode bersensitivitas tinggi untuk pengukuran absorbansi yang akurat.
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
MPR-100/MPR-100T adalah microplate reader absorbansi cahaya berbasis filter berkualitas tinggi dengan rentang panjang gelombang 340nm~750nm, cocok untuk aplikasi riset dan klinis. Dilengkapi layar LCD sentuh berwarna 7 inci tanpa memerlukan keyboard, mudah digunakan.
| Parameter | MPR-100 | MPR-100T |
|---|---|---|
| Display | 7 inch high resolution capacitive touch screen | 7 inch high resolution capacitive touch screen |
| Light Source | 6V, 10 W halogen lamp (Lifespan up to 2000h) | 6V, 10 W halogen lamp (Lifespan up to 2000h) |
| Wavelength Range | 340nm ~ 750nm | 340nm ~ 750nm |
| Optical Filter | 8-position filter wheel, standard 4 filters: 405nm, 450nm, 492nm, 630nm | 8-position filter wheel, standard 4 filters: 405nm, 450nm, 492nm, 630nm |
| Absorbance Range | 0-4.0Abs | 0-4.0Abs |
| Resolution | 0.001 Abs | 0.001 Abs |
| Linear Range | R² ≥0.995 absorbance range 0~3.0 Abs | R² ≥0.995 [0,3 Abs] |
| Wavelength Accuracy | ≤±2nm | ≤±2nm |
| Absorbance Repeatability | CV≤0.3 % [0,3 Abs); CV≤1 % [3,4 Abs) | CV≤0.3 % [0,3 Abs); CV≤1 % [3,4 Abs) |
| Absorbance Stability | ≤0.005 Abs [0,3 Abs) ≤2.0 % [3,4 Abs) | ≤±0.005 Abs [0,2 Abs) ≤0.3 % [2,3 Abs) ≤2.0 % [3,4 Abs) |
| Absorbance Accuracy | ≤±0.005 Abs [0,2 Abs) ≤±0.01 Abs [2,3 Abs) ≤±1.5 % [3,4 Abs) | ≤±0.005 Abs [0,2 Abs) ≤±1 % [2,3 Abs) ≤±1.5 % [3,4 Abs) |
| Sensitivity / Detector | ≥0.01 A / photodiode | ≥0.01 A / photodiode |
| Measuring Speed | 6s / 96-well plate, fast mode; single wavelength <15 s / 96-well, dual wavelength <28s / 96-well (common mode) | 6s / 96-well plate, fast mode; single wavelength <15 s / 96-well, dual wavelength <28s / 96-well (common mode) |
| Shaking | Linear, 3 speeds adjustable | Linear, 3 speeds adjustable |
| Incubation Temperature Range | —— | —— |
| Temperature Accuracy | —— | —— |
| Temperature Uniformity | —— | —— |

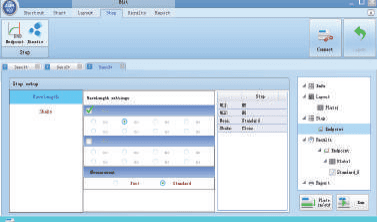

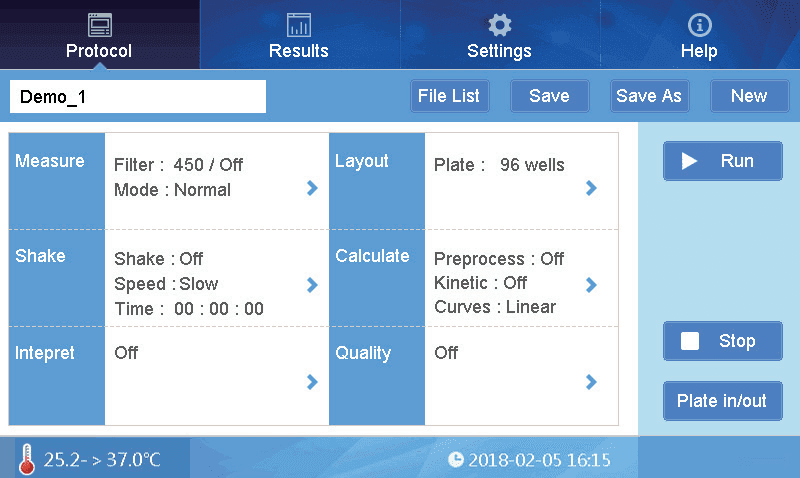

| User Interface | Built-in software, touch screen input, external mouse | Built-in software, touch screen input, external mouse |
| Internal Storage | Can store 1000 measurement programs and measurement results | Can store 1000 measurement programs and measurement results |
| Port | 3×USB ports, connecting computer, printer and USB drive | 3×USB ports, connecting computer, printer and USB drive |
| Electricity | AC 100-240 V, 50-60 Hz, 2 A | AC 100-240 V, 50-60 Hz, 2 A |
| External Dimension (W*D*H) | 295*440*225 mm | 295*440*225 mm |
| N.W./G.W. | 10kg/14kg | 10kg/14kg |
| Package Dimension (W*D*H) | 560*430*390mm | 560*430*390mm |
Tim sales kami akan mengirimkan quotation lengkap (harga, lead time, biaya instalasi) dalam 1×24 jam kerja.
