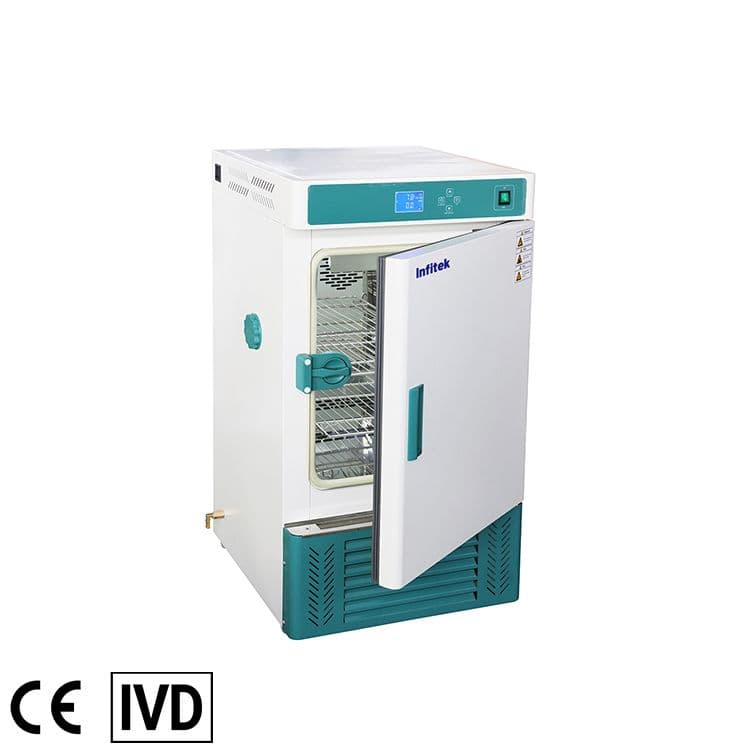

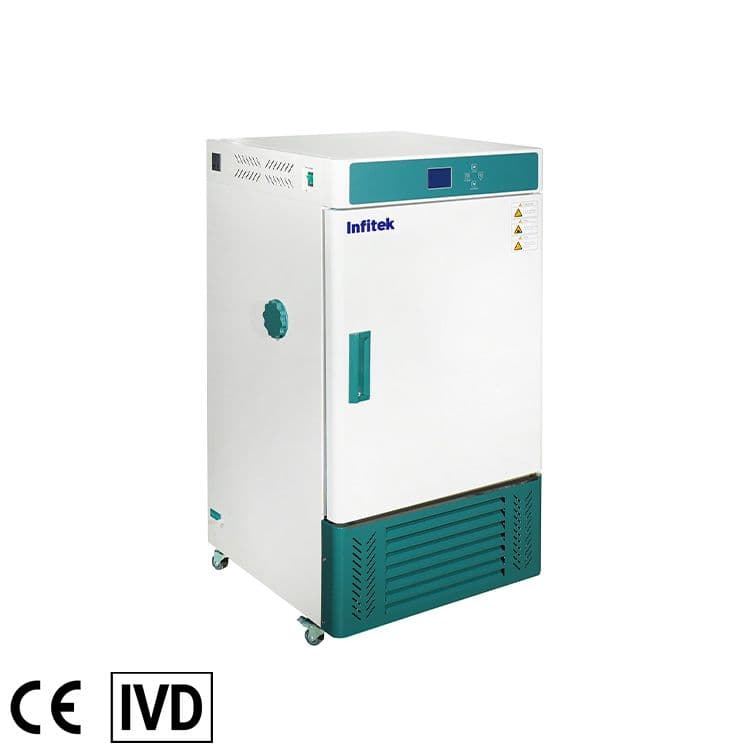

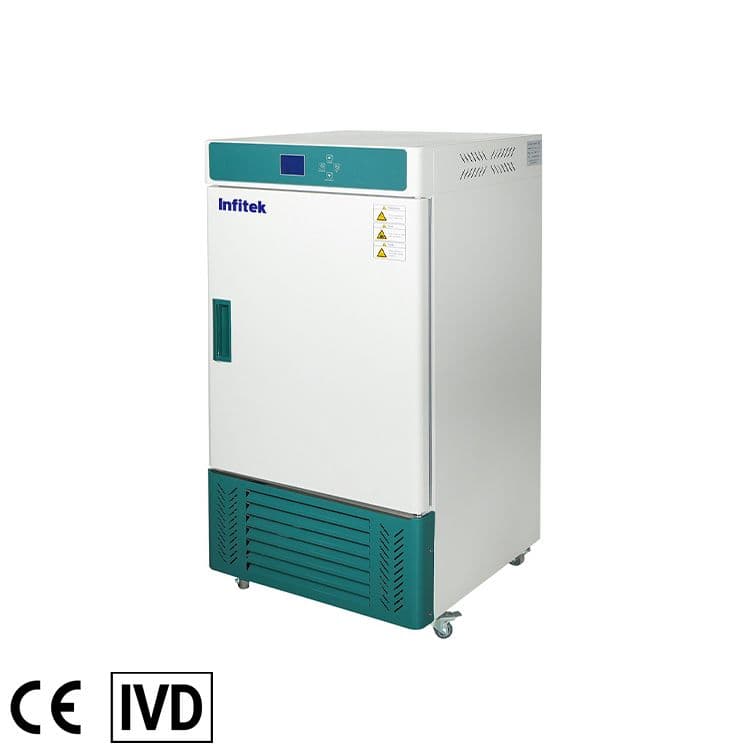

| Model | ICB-B70 | ICB-B150 | ICB-B250 |
|---|
| Mode siklus | Forced convection | Forced convection | Forced convection |
|---|
| Fungsi — Rentang suhu | 0~65℃ | 0~65℃ | 0~65℃ |
|---|
| Fungsi — Rasio resolusi suhu | 0.1℃ | 0.1℃ | 0.1℃ |
|---|
| Fungsi — Gerakan suhu | High Temp.: ±0.5℃ Low Temp.: ±1℃ | High Temp.: ±0.5℃ Low Temp.: ±1℃ | High Temp.: ±0.5℃ Low Temp.: ±1℃ |
|---|
| Fungsi — Keseragaman suhu | ±1.5℃ | ±1.5℃ | ±1.5℃ |
|---|
| Struktur — Ruang dalam | Mirror Stainless Steel | Mirror Stainless Steel | Mirror Stainless Steel |
|---|
| Struktur — Bahan luar | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior |
|---|
| Struktur — Lapisan insulasi | Polyurethane | Polyurethane | Polyurethane |
|---|
| Struktur — Pemanas | Stainless steel heater | Stainless steel heater | Stainless steel heater |
|---|
| Struktur — Daya pengenal | 0.8kW | 1.0kW | 1.2kW |
|---|
| Struktur — Kompresor | Air-cooled hermetic compressor | Air-cooled hermetic compressor | Air-cooled hermetic compressor |
|---|
| Struktur — Cryogen | R134a | R134a | R134a |
|---|
| Struktur — Struktur defrost | Automatic control intelligent defrosting | Automatic control intelligent defrosting | Automatic control intelligent defrosting |
|---|
| Struktur — Lubang uji | Inner diameter 43mm(one) | Inner diameter 43mm(one) | Inner diameter 43mm(one) |
|---|
| Struktur — Controlled External Power Supply | Outer universal socket (one), inner waterproof socket(one) | Outer universal socket (one), inner waterproof socket(one) | Outer universal socket (one), inner waterproof socket(one) |
|---|
| Struktur — Mode pengaturan suhu | Touch button setting | Touch button setting | Touch button setting |
|---|
| Struktur — Mode tampilan suhu | Measuring temperature: LCD upper screen; setting temperature: the lower row | Measuring temperature: LCD upper screen; setting temperature: the lower row | Measuring temperature: LCD upper screen; setting temperature: the lower row |
|---|
| Struktur — Timer | E model: 0~99.9h Without E model: 0~99.9h×10 segment(with timing wait function) | E model: 0~99.9h Without E model: 0~99.9h×10 segment(with timing wait function) | E model: 0~99.9h Without E model: 0~99.9h×10 segment(with timing wait function) |
|---|
| Struktur — Fungsi operasi | E model: Fixed value operation、timing function, auto stop. | E model: Fixed value operation、timing function, auto stop. | E model: Fixed value operation、timing function, auto stop. |
|---|
| Struktur — Fungsi operasi | Without E model: Program operation | Without E model: Program operation | Without E model: Program operation |
|---|
| Struktur — Sensor | PT100 | PT100 | PT100 |
|---|
| Struktur — Fungsi tambahan | E model: LED light, Deviation correction, Menu key lock, Power failure parameter memory | E model: LED light, Deviation correction, Menu key lock, Power failure parameter memory | E model: LED light, Deviation correction, Menu key lock, Power failure parameter memory |
|---|
| Struktur — Fungsi tambahan | Without E model: Loop self diagnosis, sensor fault alarm | Without E model: Loop self diagnosis, sensor fault alarm | Without E model: Loop self diagnosis, sensor fault alarm |
|---|
| Perangkat keselamatan | Over temperature alarm | Over temperature alarm | Over temperature alarm |
|---|
| Spesifikasi — Ukuran ruang dalam (W×L×H)(mm) | 415×350×500 | 490*400*750 | 500*500*950 |
|---|
| Spesifikasi — Ukuran luar (W×L×H)(mm) | 571×591×1051 | 646*641*1301 | 656*741*1501 |
|---|
| Spesifikasi — Ukuran kemasan (W×L×H)(mm) | 676×680×1235 | 751*730*1490 | 761*830*1690 |
|---|
| Spesifikasi — Volume | 70L | 150L | 250L |
|---|
| Spesifikasi — Beban per rak | 15kg | 15kg | 15kg |
|---|
| Spesifikasi — Jumlah rak | 5 | 9 | 12 |
|---|
| Spesifikasi — Ruang rak | 60mm | 60mm | 60mm |
|---|
| Spesifikasi — Power Supply Current Rating | AC220V/2.3A | AC220V/3.6A | AC220V/5.5A |
|---|
| Spesifikasi — Berat bersih/berat kotor (kg) | 69/92 | 86/114 | 100/139 |
|---|
| Aksesori — Rak | 2 | 2 | 2 |
|---|
| Aksesori — Rangka rak | 4 | 4 | 4 |
|---|
| Aksesori opsional | Shelf, touch screen controller, RS485 interface, printer, remote control, USB data storage | Shelf, touch screen controller, RS485 interface, printer, remote control, USB data storage | Shelf, touch screen controller, RS485 interface, printer, remote control, USB data storage |
|---|
| Aksesori opsional | Shelf, touch screen controller, RS485 interface, printer, remote control, USB data storage | Shelf, touch screen controller, RS485 interface, printer, remote control, USB data storage | Shelf, touch screen controller, RS485 interface, printer, remote control, USB data storage |
|---|
