General Lab

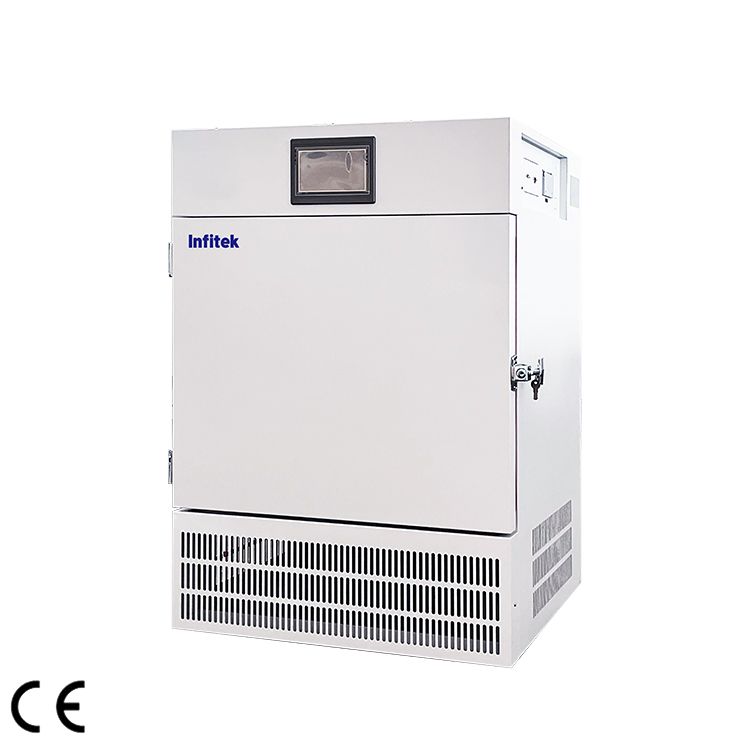

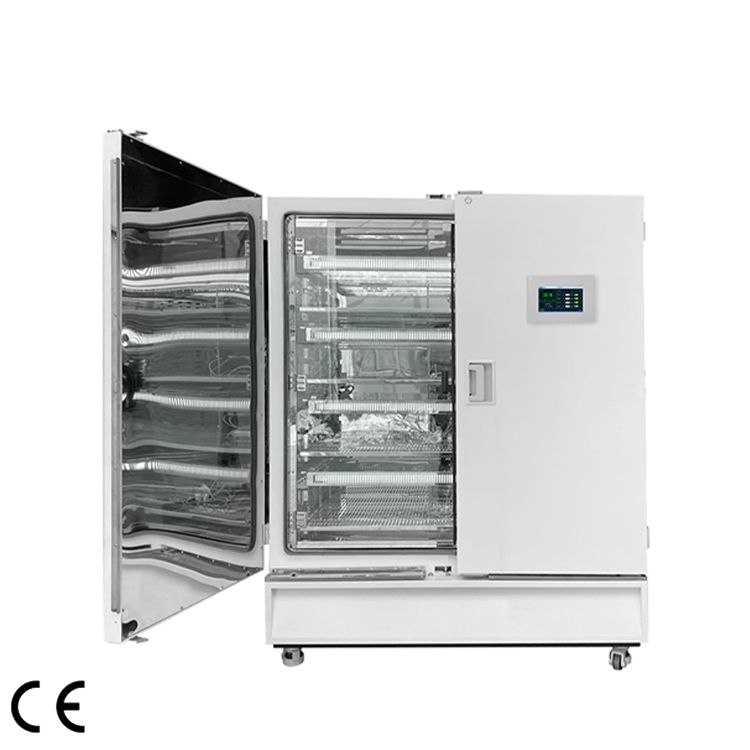

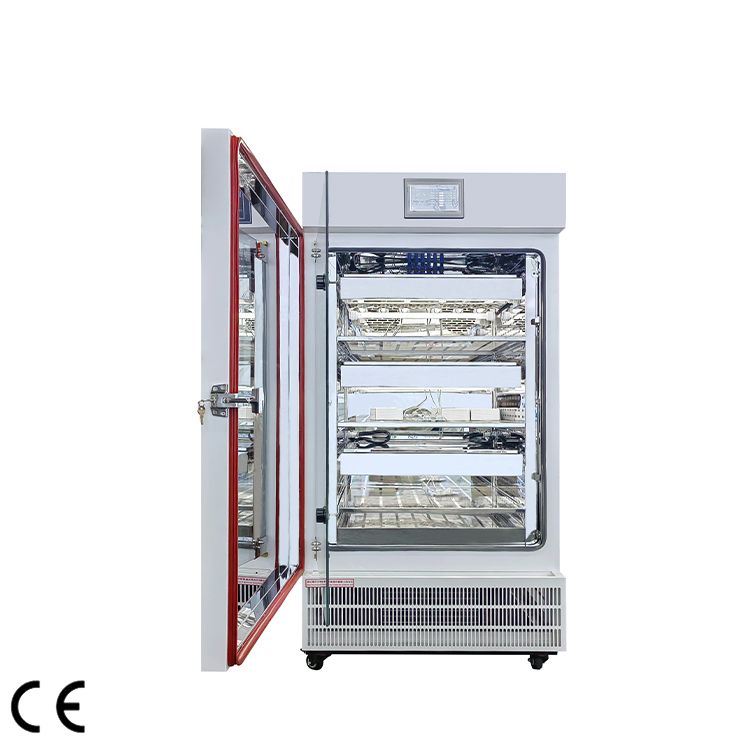

Infitek ICB-MS-LL Series Medicine Stability Testing Chamber
Medicine Stability Testing Chamber ICB-MS-LL Series tersedia dalam kapasitas 150L, 500L, dan 1000L dengan rentang suhu 15–50°C, dilengkapi cahaya tampak dan UVA. Iluminasi tiap rak dapat disetel secara independen, didukung tiga lapis proteksi keamanan termasuk proteksi kebocoran arus kritis.
Yang akan anda dapatkan jika membeli Infitek ICB-MS-LL Series Medicine Stability Testing Chamber dari kami
- ✓
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
- ✓
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
- ✓
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
- ✓
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Spesifikasi Teknis
Geser tabel ke samping untuk melihat seluruh 3 varian model.
| Parameter | ICB-MS150-LL | ICB-MS500-LL | ICB-MS1000-LL |
|---|---|---|---|
| Capacity (L) | 150 | 500 | 1000 |
| Temperature Range (℃) | 15～50 | 15～50 | 15～50 |
| Temperature Fluctuation (℃) | ±1 | ±1 | ±1 |
| Temperature Uniformity (℃) | ±2 (same level) | ±2 (same level) | ±2 (same level) |
| Visible Light | Illuminance Range: 100~8,000 Lux | Illuminance Range: 100~8,000 Lux | Illuminance Range: 100~8,000 Lux |
| Visible Light | Illuminance Uniformity: 4,500 ± 500 Lux | Illuminance Uniformity: 4,500 ± 500 Lux | Illuminance Uniformity: 4,500 ± 500 Lux |
| Visible Light | Total Illuminance: ≥ 1.2 × 10⁶ Lux·hr | Total Illuminance: ≥ 1.2 × 10⁶ Lux·hr | Total Illuminance: ≥ 1.2 × 10⁶ Lux·hr |
| UVA | Irradiance Range: 0.84~5 W/m² | Irradiance Range: 0.84~5 W/m² | Irradiance Range: 0.84~5 W/m² |
| UVA | Total UVA: ≥ 200 W·hr/m² | Total UVA: ≥ 200 W·hr/m² | Total UVA: ≥ 200 W·hr/m² |
| UVA | UVA Spectral Range: 320 ~ 400nm | UVA Spectral Range: 320 ~ 400nm | UVA Spectral Range: 320 ~ 400nm |
| Electricity | 220V, 50Hz/60Hz | 220V, 50Hz/60Hz | 220V, 50Hz/60Hz |
| Power (kW) | 1.5 | 2.1 | 2.5 |
| Ambient Temperature (℃) | 5 ~35 | 5 ~35 | 5 ~35 |
| Network | Connection via network port | Connection via network port | Connection via network port |
| Internal Dimensions (W*D*H) (mm) | 650*490*500 | 680*680*1080 | 1360*490*1360 |
| External Dimensions (W*D*H) (mm) | 830*790*1250 | 860*1050*1850 | 1620*910*1990 |
| Remarks | 1 layer of light, Visible Light + UVA | 3 layers of light, Visible Light + UVA | 3 layers of light, Visible Light + UVA |
Hardware Configuration
| Compressor | Imported fully enclosed compressor; High efficiency, low noise |
|---|---|
| Evaporator | Coating process with doubled corrosion resistance |
| Controller | 7-inch color programmable touch screen; Three-level authority: Configurable for more levels; Audit trail: Storage of operation records; Frequency conversion: Display the frequency output; Prompt Reminder: Periodic maintenance reminders |
| Alarm System | On-site audible and visual alarm; Remote information alarm (optional) |
| Structural Material | Interior: 304 stainless steel; Polyurethane foam insulation |
| Double Door | Inner door: Tempered glass; Inner wall of outer door: SUS304 stainless steel |
| Safety Protection | Three layers of protection; Including independent over-temperature protection |
Software Configuration
| Data Storage | Built-in storage hard drive, USB export |
|---|---|
| Data Storage | 5 years |
| Data Printing | Dot matrix micro-printer |
| Data Printing | Long-term storage |
| Data Network Version | Server version |
| Data Network Version | Complies with FDA 21 CFR Part 11 |
Fitur Utama
- Kendali Zona Independen: iluminasi tiap rak dapat disetel secara terpisah.
- Proteksi Keamanan Menyeluruh: tiga lapis proteksi keamanan, termasuk proteksi kebocoran arus kritis.
Butuh penawaran resmi untuk produk ini?
Tim sales kami akan mengirimkan quotation lengkap (harga, lead time, biaya instalasi) dalam 1×24 jam kerja.
