Aksesori Opsional:
DOF-85E: Rak
DOF-85: Rak, printer, perangkat kontrol suhu terprogram, penyimpanan data USB.
Foto produk resmi · 2 tampilan
General Lab

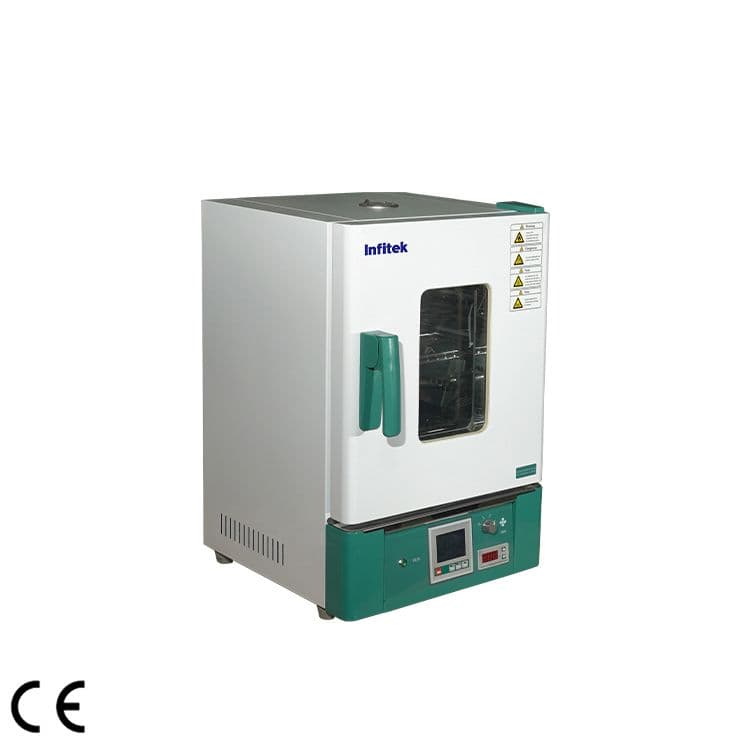

Forced Air Drying Oven, DOF-85, DOF-85E
DOF-85EDOF-85
Forced Air Drying Oven DOF-85/DOF-85E dengan mode sirkulasi forced convection, rentang suhu RT+10 hingga 300°C, dua segmen suhu, dan kontrol PID cerdas.
Yang akan anda dapatkan jika membeli Forced Air Drying Oven, DOF-85, DOF-85E dari kami
- ✓
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
- ✓
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
- ✓
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
- ✓
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Spesifikasi Teknis
| DOF-85 | DOF-85E |
|---|
Tabel Spesifikasi 2
| Parameter | DOF-85E | DOF-85 |
|---|---|---|
| Cycle Mode | Forced air convection | Forced air convection |
| Volume | 85L | 85L |
| Temp. Range | RT+10~300℃ | RT+10~300℃ |
| Temp. Resolution | 0.1℃ | 0.1℃ |
| Temp. Uniformity | ±2.5% | ±2.5% |
| Inner Chamber Material | Mirror Stainless Steel | Mirror Stainless Steel |
| Temp. Display | Measuring temperature: display on the four digital tubes, upper row, setting temperature: display on the lower row; | Measuring temperature display on upper LCD screen, setting temperature display on the lower row; |
| Structure | External material: cold rolling steel electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Stainelss steel heater; Exhaust hole: φ28mm top (with function of test hole); | External material: cold rolling steel electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Stainelss steel heater; Exhaust hole: φ28mm top (with function of test hole); |
| Controller | Temp. sensor: PT100; Temp. set: soft touch button; Temp. control: Intelligent PID for Two temperature section; Operation function: fixed temperature operation, timing function, auto stop; | Temp. sensor: PT100; Temp. set: soft touch button; Temp. control: Intelligent PID for Two temperature section; Operation function: fixed temperature operation, timing function, auto stop; |
| Additional function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory; | High precision digital independent temperature limiter, 3-grade adjustable speed fan (230 and 625 without fan speed adjustor), sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory; |
| Timing Setting | 0~9999mins(with timing wait function) | 0~9999mins(with timing wait function) |
| Alarm | Over-temperature Alarm, audible and visual alarm | Over-temperature Alarm, audible and visual alarm |
| Shelves | 2pcs/adjustable, max. load 15kg/shelf, shelf space 35mm | 2pcs/adjustable, max. load 15kg/shelf, shelf space 35mm |
| Consumption | 600W | 600W |
| Power Supply | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz |
| Internal Size(W*D*H) | 450*420*450mm | 450*420*450mm |
| External Size(W*D*H) | 590*610*830mm | 590*610*830mm |
| Package Size(W*D*H) | 690*695*985mm | 690*695*985mm |
| Net/Gross Weight | 50/56kg | 50/56kg |
Fitur Utama
- Udara panas bersirkulasi secara alami dan siklikal di dalam ruang kerja.
- Kontroler suhu PID mikrokomputer cerdas dengan layar digital.
- Handle anti-panas.
Butuh penawaran resmi untuk produk ini?
Tim sales kami akan mengirimkan quotation lengkap (harga, lead time, biaya instalasi) dalam 1×24 jam kerja.
