General Lab

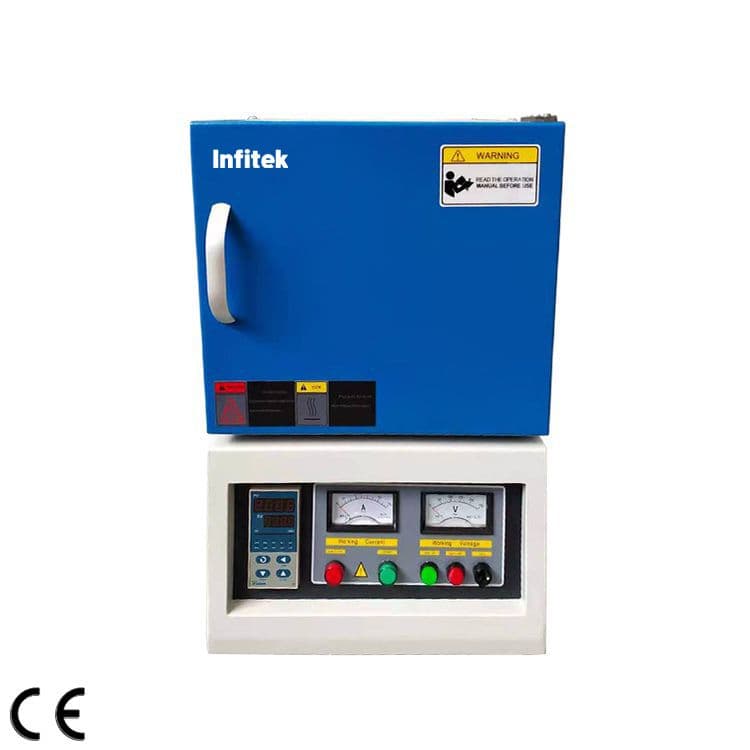

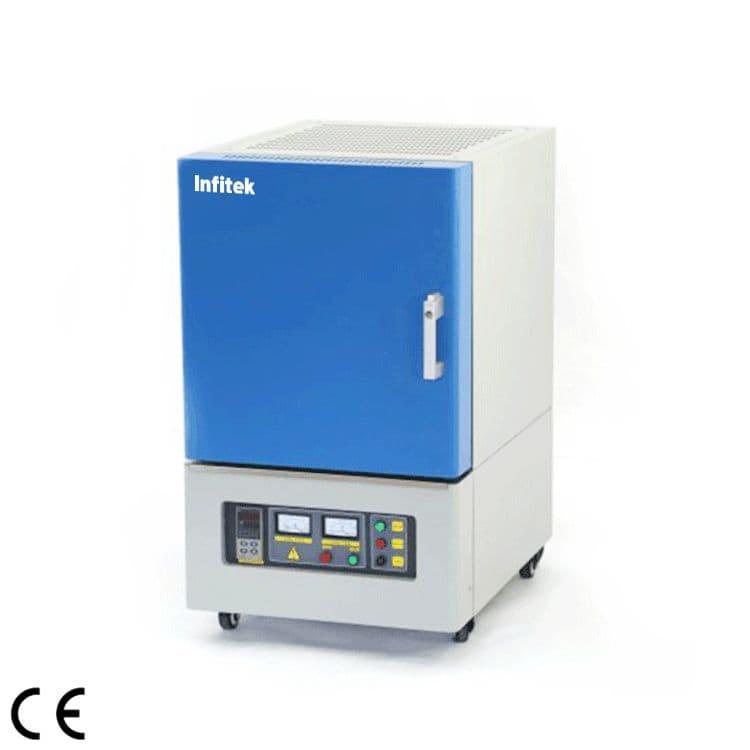

Muffle Furnace FNC-BX1200 Series mencapai suhu maksimum 1200°C dengan suhu kerja kontinu ≤1100°C, thermocouple tipe K, dan elemen pemanas resistance wire dengan Mo.
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Aksesori Standar
Sarung tangan tahan panas | Crucible tongs | Thermocouple | Furnace door block | Buku panduan
Opsional
Tersedia berbagai ukuran chamber sesuai kebutuhan. Layar sentuh (dengan interface USB). Perangkat lunak koneksi komputer, perangkat kontrol (RKC, program 16 segmen + interface + software). Catatan: Anda hanya dapat memilih salah satu antara opsi 2 dan 3;
| — | Model / FNC-BX1200-1 / FNC-BX1200-2II / FNC-BX1200-3 / FNC-BX1200-6 / FNC-BX1200-9 |
|---|---|
| Temperature | Max. Temp(℃) / 1200 |
| Temperature | Continuous Working Temp.(℃) / ≤1100 |
| Temperature | Heating Rate / 0~30℃/min, suggest to be 15℃/min; |
| Temperature | Accuracy(℃) / ±1℃ |
| Temperature | Uniformity(℃) / ±5℃ |
| Chamber Dimension(W*D*H)(mm) | Chamber Dimension(W*D*H)(mm) / 100*100*100 (Or customize as your requirement) / 150*200*150(Or customize as your requirement) / 200*300*120(Or customize as your requirement) / 200*300*200(Or customize as your requirement) / 300*400*300(Or customize as your requirement) |
| External Size(W*D*H)(mm) | External Size(W*D*H)(mm) / 350*470*570mm / 510*700*810mm / 470*700*640mm / 550*700*895mm / 640*850*1050mm |
| Capacity(L) | Capacity(L) / 1 / 4.5 / 7.2 / 12 / 36 |
| Heating Element | Heating Element / Resistance wire with Mo |
| Thermocouple | Thermocouple / K type |

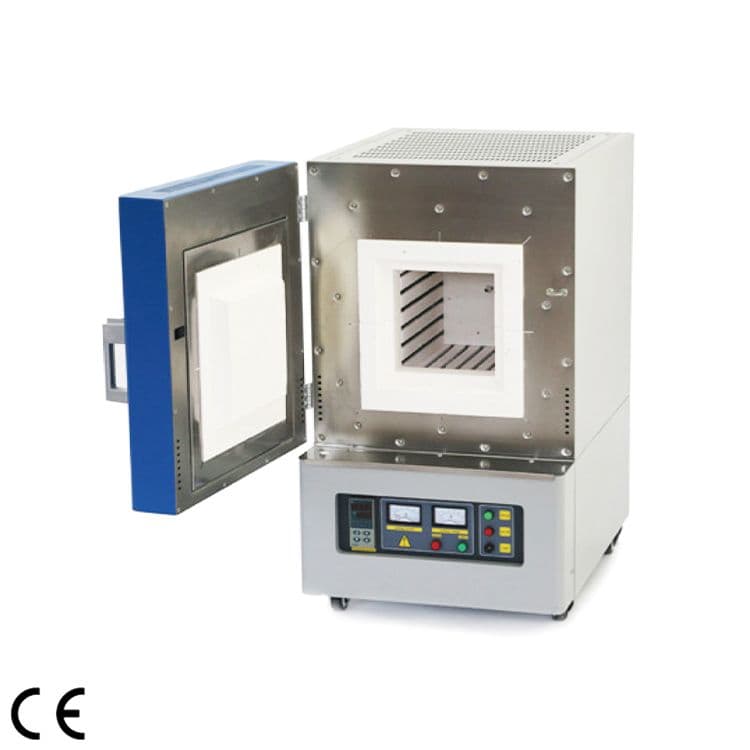

| Chamber Material | Chamber Material / High purity alumina polycrystalline fiber |
| Electricity | Electricity / AC 220V,50Hz/60Hz / AC 380V, 50Hz/60Hz |
| Max. Consumption | Max. Consumption / 1kW / 2kW / 3kW / 6kW / 9kW |
Tim sales kami akan mengirimkan quotation lengkap (harga, lead time, biaya instalasi) dalam 1×24 jam kerja.
