General Lab

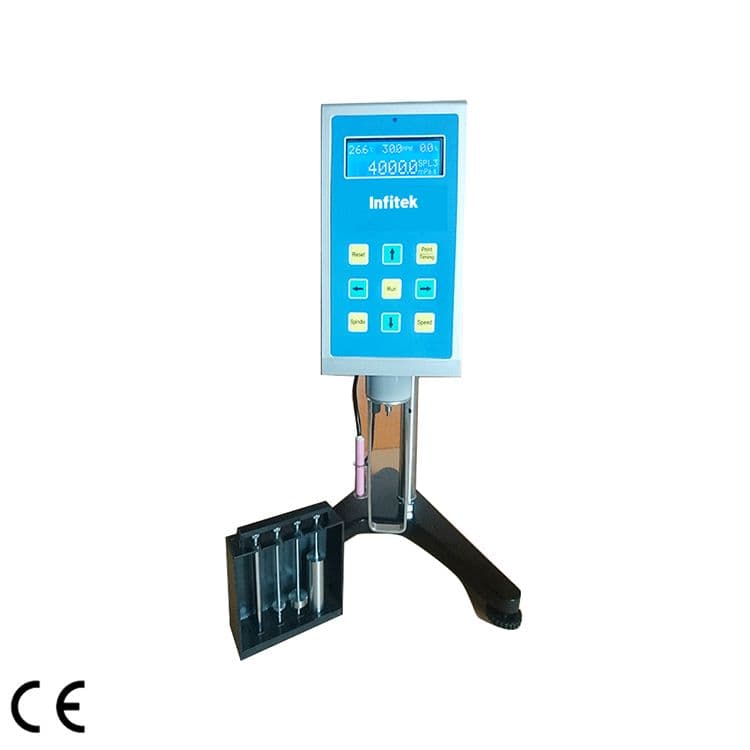

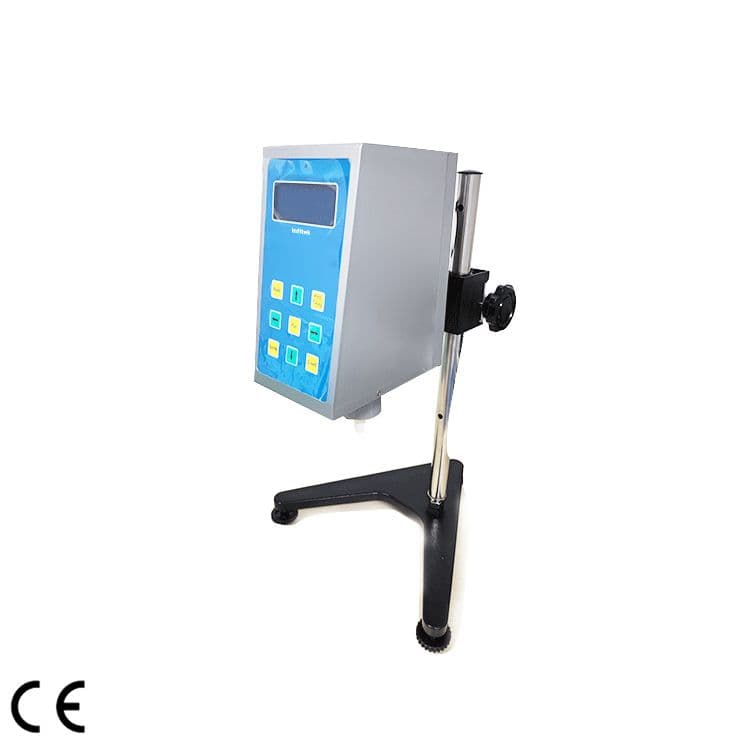

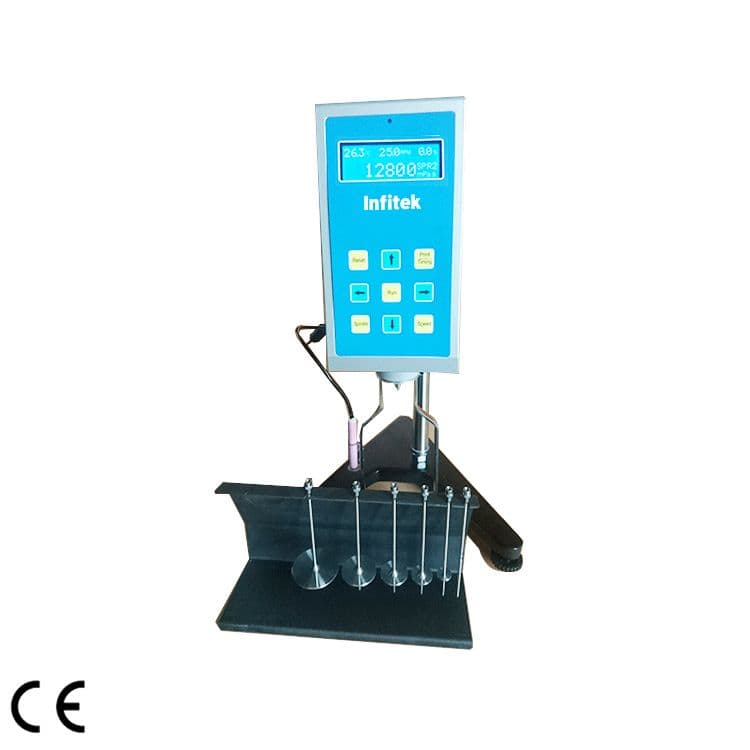

Digital Viscometer, VSC-E Series
Digital Viscometer VSC-E Series memiliki rentang pengukuran 6~320,000,000 mPa·s dengan kecepatan putar 0.1~99.9/0.1~200 RPM (stepless gear), 4/6 spindle, akurasi ±1%, dan repeatability ±0.5% dari full scale range yang digunakan.
Yang akan anda dapatkan jika membeli Digital Viscometer, VSC-E Series dari kami
- ✓
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
- ✓
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
- ✓
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
- ✓
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Spesifikasi Teknis
Geser tabel ke samping untuk melihat seluruh 6 varian model.
| Parameter | VSC-E1 VSC-E1-1 | VSC-E1 VSC-E1-2 | VSC-E1 VSC-E1-3 | VSC-E2 VSC-E2-1 | VSC-E2 VSC-E2-2 | VSC-E2 VSC-E2-3 |
|---|---|---|---|---|---|---|
| Measuring Range (mPa·s) | 12～6,000,000 | 80～40,000,000 | 640～320,000,000 | 6～6,000,000 | 40～40,000,000 | 320～320,000,000 |
| Rotating Speed (RPM) | 0.1～99.9 (Stepless Gear) | 0.1～99.9 (Stepless Gear) | 0.1～99.9 (Stepless Gear) | 0.1～200 (Stepless Gear) | 0.1～200 (Stepless Gear) | 0.1～200 (Stepless Gear) |
| Number of Spindles | Spindles (Code L1, L2, L3, L4) are equipped with the product | Spindles (Code R2, R3, R4, R5, R6, R7) are equipped with the product | Spindles (Code R2, R3, R4, R5, R6, R7) are equipped with the product | Spindles (Code L1, L2, L3, L4) are equipped with the product | Spindles (Code R2, R3, R4, R5, R6, R7) are equipped with the product | Spindles (Code R2, R3, R4, R5, R6, R7) are equipped with the product |
| Accuracy | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use | ±1% full scale range in use |
| Repeatability | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use | ±0.5% full scale range in use |
| Readability | 1.when viscosity is lower than 10.0 cp: 0.01 | 1.when viscosity is lower than 10.0 cp: 0.01 | 1.when viscosity is lower than 10.0 cp: 0.01 | 1.when viscosity is lower than 10.0 cp: 0.01 | 1.when viscosity is lower than 10.0 cp: 0.01 | 1.when viscosity is lower than 10.0 cp: 0.01 |
| Readability | 2.when viscosity is lower than 10000 cp: 0.1 | 2.when viscosity is lower than 10000 cp: 0.1 | 2.when viscosity is lower than 10000 cp: 0.1 | 2.when viscosity is lower than 10000 cp: 0.1 | 2.when viscosity is lower than 10000 cp: 0.1 | 2.when viscosity is lower than 10000 cp: 0.1 |
| Readability | 3.when viscosity is equal or higher than 10000 cp: 1 | 3.when viscosity is equal or higher than 10000 cp: 1 | 3.when viscosity is equal or higher than 10000 cp: 1 | 3.when viscosity is equal or higher than 10000 cp: 1 | 3.when viscosity is equal or higher than 10000 cp: 1 | 3.when viscosity is equal or higher than 10000 cp: 1 |
| Power | Power adapter (input: 100-240V, 50/60Hz) | Power adapter (input: 100-240V, 50/60Hz) | Power adapter (input: 100-240V, 50/60Hz) | Power adapter (input: 100-240V, 50/60Hz) | Power adapter (input: 100-240V, 50/60Hz) | Power adapter (input: 100-240V, 50/60Hz) |
| LCD screen display | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. |
| Package Size(mm) | 410*360*530 | 410*360*520 | 410*360*520 | 400*350*360 | 400*350*550 | 400*350*550 |
| Net weight(kg) | 8kg | 10.5kg | 10.5kg | 8kg | 10.5kg | 10.5kg |
Apparatus to be equipped
| digital viscosity meter | 1 pce / ascending and falling rack / 1 set |
|---|---|
| standard spindle | 1 set / power adapter / 1 pce |
| protective frame of spindle | 1 pce / spanner |
| Seat and leveling feet | 1 set / RS232 standard output interface / 1 pce |
| RTD temperature probe | 1 pce |
Fitur Utama
- Adaptor viscometer untuk viskositas sangat rendah (dengan satu spindle L0).
- Adaptor sampel kecil (dengan spindle 21, 27, 28, dan 29 masing-masing satu).
- Heater dengan kontrol suhu (dengan spindle 21, 27, 28, dan 29 masing-masing satu).
- Spindle L5.
- Software khusus untuk pengumpulan data secara otomatis.
- Software kontrol program DV yang dapat diunduh.
- Printer khusus.
