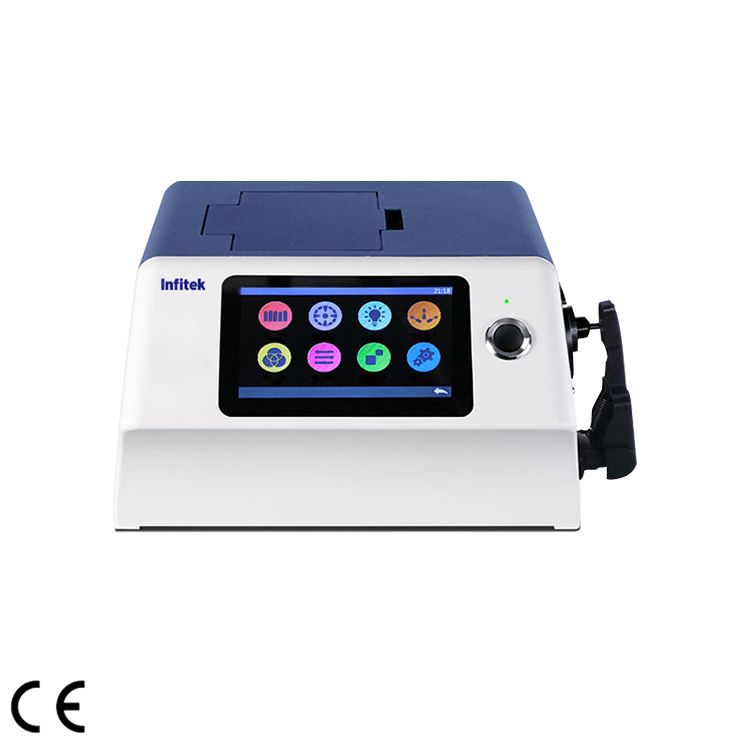

Infitek SP-CLR601 Benchtop Spectrocolorimeter
SP-CLR601
Spectrocolorimeter Benchtop Type SP-CLR601 bekerja pada rentang panjang gelombang 360-780nm dengan sensor CMOS double array 256 elemen, identifikasi aperture pengukuran otomatis, dan detektor sumber cahaya independen.
Yang akan anda dapatkan jika membeli Infitek SP-CLR601 Benchtop Spectrocolorimeter dari kami
- ✓
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
- ✓
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
- ✓
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
- ✓
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Spesifikasi Teknis
| Parameter | SP-CLR601 |
|---|---|
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) ; SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing) ; SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source; Haze(ASTM D1003), Conforms to CIE No.15，GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 |
| Application | It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. |
| Integrating Sphere Size | Φ154mm |
| Light Source | 360 nm to 780 nm, Combined LED Light, 400nm cut-off light source |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360-780nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Reflective : Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive : Φ30mm/Φ25mm; Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position |
| Specular Component | Reflectance: SCI&SCE / Transmittance: SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color Difference Formula | ΔE * ab ,ΔE * uv ,ΔE * 94 ,ΔE * cmc(2:1) ,ΔE * cmc(1:1) ,ΔE * 00 , DINΔE 99 ,ΔE (Hunter), |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness,Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003) |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 2.4s (Measure SCI & SCE about 5s) |
| Repeatability | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.15 |
| Inter-instrument Error | (Average for 12 BCRA Series II color tiles) |
| Dimension | L*W*H=370x300x200mm |
| Weight | Approx. 9.6kg |
| Power | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB & Print serial port |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs |
| Language | Simplified Chinese, Traditional Chinese, English, |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 8 caliber, 4 caliber |
| Optional Accessory | Micro-printer, Transmissive Test Component, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components |
| Notes | The specifications are subject to change without notice. |
Fitur Utama
- Konfigurasi hardware tinggi: layar sentuh kapasitif TFT warna 7 inci dan concave grating.
- Sensor CMOS double array 256 elemen; LED dan UV LED berumur panjang dan stabil.
- Dengan spektrum reflektif dan transmisif serta nilai Lab yang akurat, alat ini baik untuk menghitung formula warna dan melakukan transmisi warna secara presisi.

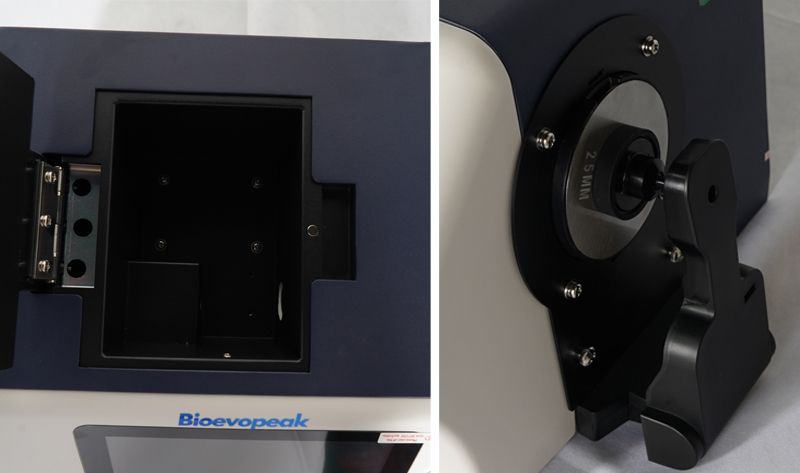

- Mengidentifikasi aperture pengukuran secara otomatis. Dapat ditukar bebas antara 4 aperture: φ25,4mm/15mm/8mm/4mm. Pengguna juga dapat menyesuaikan aperture sendiri.
- Sensor suhu internal memantau dan mengompensasi suhu pengukuran untuk hasil yang lebih presisi.
- Rentang panjang gelombang 360nm-780nm. Dilengkapi cut off 400nm.
- Detektor sumber cahaya independen yang memantau kondisi sumber cahaya secara berkelanjutan untuk memastikan keandalannya.
- Beberapa mode pengukuran: Quality Management Mode dan Sample Mode, untuk memenuhi lebih banyak kebutuhan pengguna.
- Berbagai aksesori opsional: alat penahan sampel reflektif, fixture transmisi, komponen uji transmisi aperture mikro 4mm, dan komponen uji instrumen posisi terbalik, cocok untuk lebih banyak kondisi kerja;
- Penyimpanan data berkapasitas besar untuk 20.000 hasil pengujian.
- Dilengkapi camera locating.
- Software PC memiliki fungsi ekstensi yang lebih lengkap.
Aplikasi
Spectrophotometer benchtop SP-CLR601 digunakan untuk analisis dan transmisi warna secara presisi di laboratorium. Alat ini dapat diaplikasikan secara luas di berbagai industri seperti plastik, elektronik, cat dan tinta, percetakan, garmen, kulit, kertas, otomotif, medis, kosmetik, makanan, institusi riset, dan laboratorium.
