General Lab

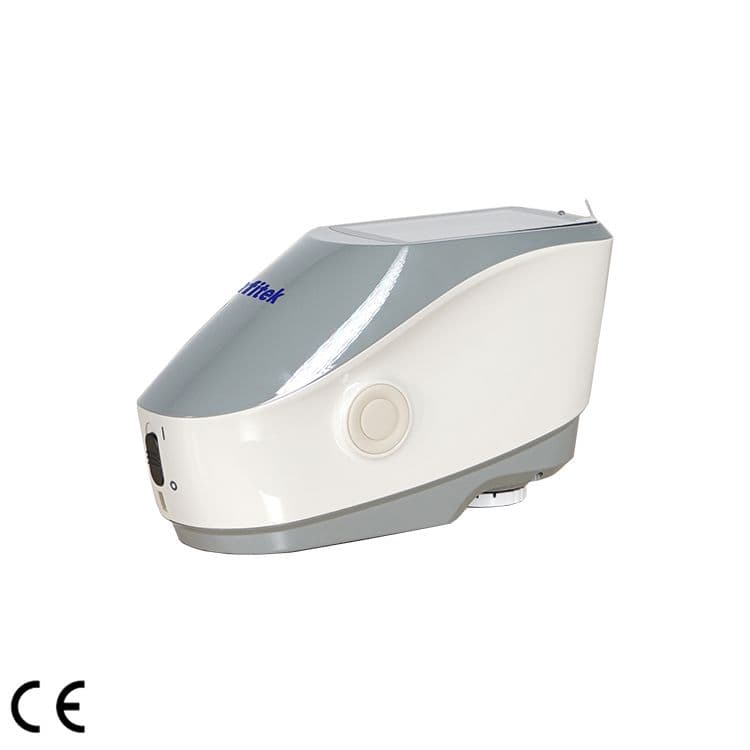

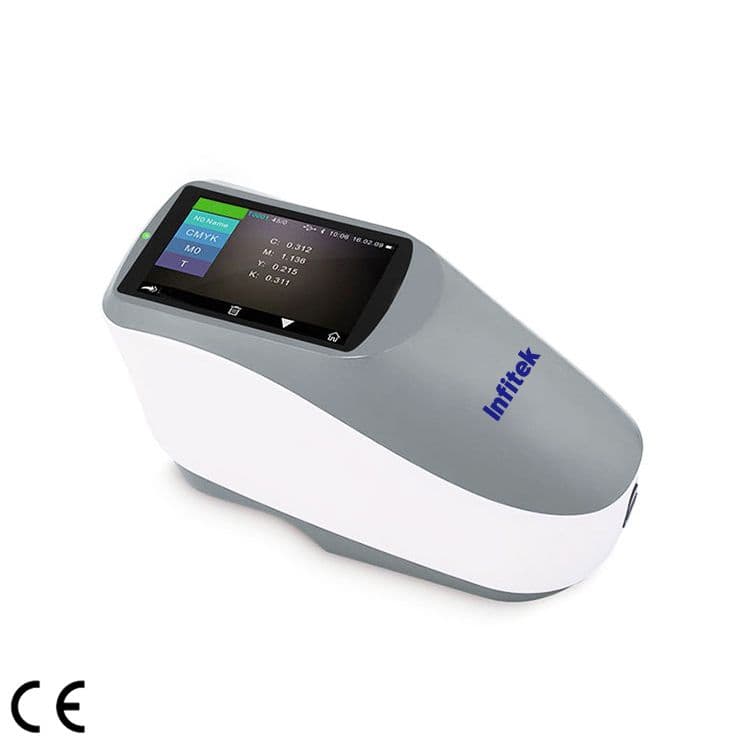

Grating Spectrodensitometer, SP-CLD501
SP-CLD501
Grating Spectrodensitometer SP-CLD501 digunakan pada industri percetakan tinta, pemrosesan film, tekstil printing dan pewarnaan, plastik elektronik, dan industri lainnya. Alat ini bekerja pada rentang panjang gelombang 400-700 nm dengan standar densitas ISO Status A, E, I, T, serta sumber cahaya LED gabungan.
Yang akan anda dapatkan jika membeli Grating Spectrodensitometer, SP-CLD501 dari kami
- ✓
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
- ✓
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
- ✓
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
- ✓
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Spesifikasi Teknis
| Parameter | SP-CLD501 |
|---|---|
| Measurement Geometry | 45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15 |
| Features | Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm. |
| Light Source | Combined LED Light, UV Light |
| Spectral separation device | Concave Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Measurement Conditions | Compliance with ISO 13655 measurement conditions; M0 (CIE Light Soure A) M1 (CIE Light Soure D50) M2 (Excluding UV light source) M3 (M2+Polarized light filter) |
| Density Standards | ISO Status A, E, I, T |
| Density index | Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level |
| Measurement aperture | Customized one aperture: Φ2mm,Φ4mm,Φ8mm optional |
| Color Spaces | CIE LAB,XYZ,Yxy,LCh |
| Color Difference Formula | ΔE*ab,ΔE*94,ΔE*00 |
| Other Colorimetric Index | / |
| Observer Angle | 2°/10° |
| Illuminants | A,C,D50,D55,D65,D75,F2,F7,F11,F12 |
| Measurement Time | About 1.5s |
| Repeatability | Density: Within 0.01 D; Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3 |
| Inter-instrument Error | Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3 |
| Measurement mode | Single Measurement, Average Measurement(2-99) |
| Size(L*W*H) | 184*77*105mm |
| Weight | About 600g |
| Package Dimension (W*D*H) | 360*170*320mm |
| G.W. | 3kg |
| Power source | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, |
| Data memory | 10000 pcs |
| Language | Simplified Chinese, English, Traditional Chinese |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation)) |

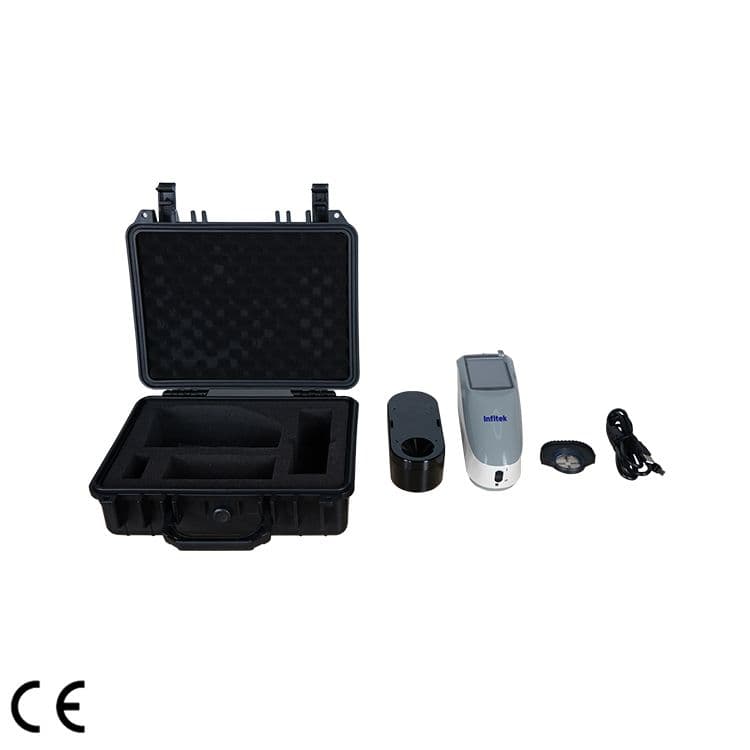

| Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate |
| Optional Accessory | Micro Printer |
| Notes: The specifications are subject to change without notice. | Notes: The specifications are subject to change without notice. |
Fitur Utama
- Perpaduan sempurna antara desain tampilan menarik dan struktur ergonomis;
- Sumber cahaya LED gabungan dengan usia pakai panjang dan konsumsi daya rendah, termasuk cahaya UV;
- Aperture opsional: Φ2/4/8mm, menyesuaikan lebih banyak jenis sampel;
- Mengukur spektrum reflektansi, densitas CMYK, dan nilai Lab sampel secara akurat;
- Perangkat keras elektronik berkonfigurasi tinggi: layar TFT true-color 3,5 inci, layar sentuh kapasitif, grating cekung, sensor gambar CMOS dual-array 256-piksel, dan lainnya;
- Dua sudut pengamat standar: 2°/10°, berbagai mode sumber cahaya dan sistem warna;
- Mode USB serbaguna;
- Ruang penyimpanan berkapasitas besar, lebih dari 10.000 data uji;
- Sangat cocok untuk kontrol proses dan kontrol kualitas di pabrik percetakan;
- Perangkat lunak PC memiliki fungsi ekspansi yang andal.
