Foto produk resmi · 1 tampilan
General Lab

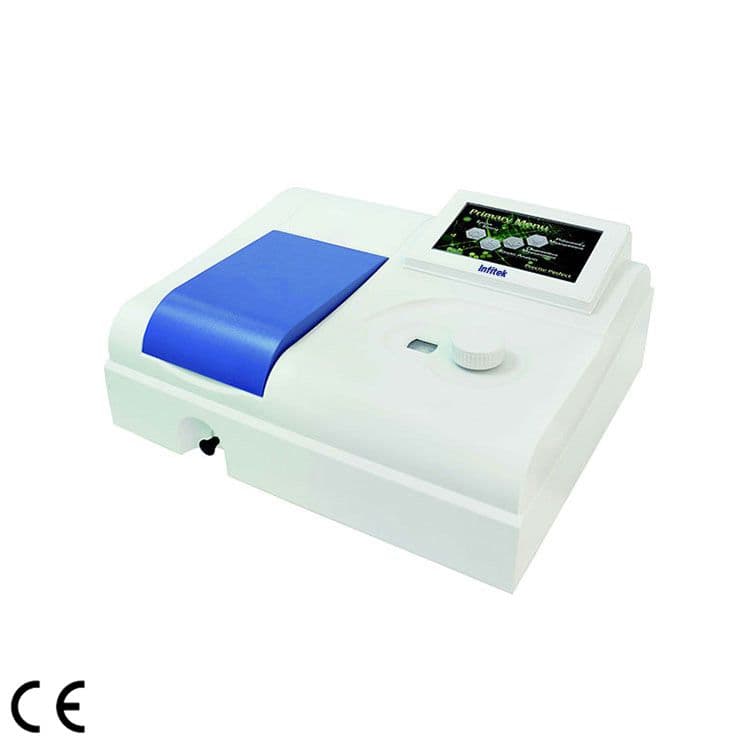

UV VIS Spectrophotometer Single Beam SP-IUV752N Plus / SP-IV722N menggunakan monochromator tipe Czerny-Turner dengan rentang panjang gelombang 200-1000nm, akurasi ±2nm, dan ruang sampel untuk cuvette 5-50mm.
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Cuvette holder 50mm
| Parameter | SP-IUV752N Plus | SP-IV722N |
|---|---|---|
| Photometry | Single Beam | Single Beam |
| Monochromator Type | Czerny-Turner | Czerny-Turner |
| Focal Length | 160mm | 160mm |
| Grating | 1200 lines/mm | 1200 lines/mm |
| Detector | Silicon Photocell | Silicon Photocell |
| Wavelength Setting | Manual Turn Knob | Manual Turn Knob |
| Wavelength Range | 200-1000nm | 325-1000nm |
| Wavelength Accuracy | ±2nm | ±2nm |
| Wavelength Repeatability | ≤1nm | ≤1nm |
| Spectrum Bandwidth | 2nm | 2nm |
| Stray Light | ≤0.1%T (at 220nm NaI, 360nm NaNo2) | ≤0.1%T (at 220nm NaI, 360nm NaNo2) |
| Photometric Range | 0-100.0%T | 0-100.0%T |
| Photometric Range | 0-1.999A | 0-1.999A |
| Photometric Range | 0-1999C | 0-1999C |
| Photometric Accuracy | ±0.5%T | ±0.5%T |
| Photometric Repeatability | ≤0.2%T | ≤0.2%T |
| Noise | 100% (T) noise≤0.3%(T), 0% (T) noise≤0.2%(T) | 100% (T) noise≤0.3%(T), 0% (T) noise≤0.2%(T) |
| Cuvette Holder Size | 10mm | 10mm |
| Packaging Size | 580mm×460mm×345mm 0.1M 3 | 580mm×460mm×345mm 0.1M 3 |
| Power | AC220V±22V 50Hz±1Hz,120W | AC220V±22V 50Hz±1Hz,120W |
| G.W. | 16.5kg | 16.5kg |
Tim sales kami akan mengirimkan quotation lengkap (harga, lead time, biaya instalasi) dalam 1×24 jam kerja.
