General Lab

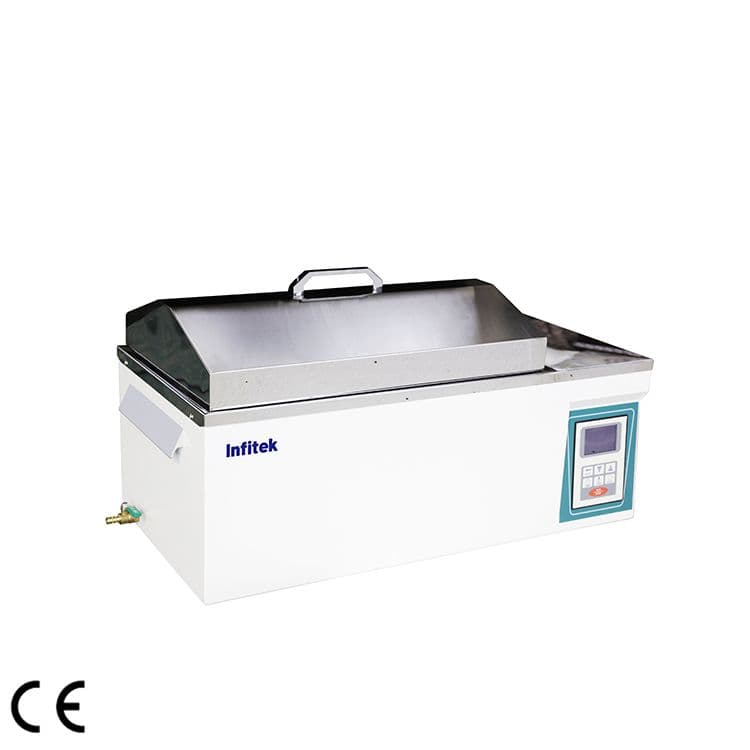

Water Bath Shaker WB-S30 bertipe reciprocal shaking water bath dengan volume dalam 31 L, rentang kecepatan 20-180 r/min, dan rentang suhu RT~100°C.
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Water Bath Shaker (juga disebut shaking water bath) berfungsi mengocok dan mencampur sampel secara stabil sambil menjaga suhu konstan. Digunakan dalam aplikasi seperti kultur sel, hibridisasi, dan uji biologi molekuler.
Layar LCD besar menampilkan nilai terukur, nilai setel, waktu setel, dan waktu tersisa.
| Parameter | WB-S30 |
|---|---|
| Type | Reciprocating oscillation + thermostatic water bath |
| Function — Operating Temp Range | RT～100℃ |
| Function — Tem. Resolution Ratio | 0.1℃ |
| Function — Tem. Motion | ±0.1℃ |
| Function — Tem. Uniformity | ±0.2℃ |
| Function — Reciprocal Oscillation Amplitude | 16 or 24mm (Ex-factory is 16mm) |
| Function — Reciprocating Frequeny Range | 20～180 (r/min) |
| Function — Reciprocating Frequeny Accuracy | ±1rpm |
| Structure — Water Tank | Mirror stainless steel |
| Structure — Outer Shell | Cold rolling steel electrostatic spraying exterior |
| Structure — Upper Cover | Mirror stainless steel |
| Structure — Insulating Layer | Polyurethane |
| Structure — Heater | Stainless Steel Heater |
| Structure — Driving Mode | Crankshaft+ double link + four wheels |
| Structure — Shelf | Mirror stainless steel |
| Structure — Power rating | 1.5kW |
| Controller — Tem. Control Mode | LCD PID Intelligent control |
| Controller — Reciprocating Control Mode | LCD PID Intelligent control |
| Controller — Setting Mode | Touch button setting |
| Controller — Tem. Display Mode | LCD Display |
| Controller — Speed Display Mode | LCD Display |
| Controller — Timer | 0～9999 min |
| Controller — Operation Function | Fixed value operation, timing function, auto stop, quickly stop start |
| Controller — Temperature Sensor | Pt100 |
| Controller — Speed Sensor | Hoare |
| Controller — Additional Function | Deviation correction, menu keys, locked, power-off memory |
| Safety device | over temperature alarm, menu locked, water full or shortage protection, Motor shaft lock protection; |
| Specification — Water Tank Size (W*L*H)(mm) | 500*310*200 |
| Specification — Exterior Size (W*L*H)(mm) | 828*360*425 |
| Specification — Packing Size (W*L*H)(mm) | 930*520*620 |
| Specification — Spring Shock Basket Size (mm) | 395*250 |
| Specification — Shock Basket Largest Single Size (ml /piece) | 100ml*12/250*8/500*6 |
| Specification — Inside Volume | 31L |
| Specification — Shock Basket Bearing | 5kg/layer |
| Specification — Current Rating (50Hz) | AC220V/6.8A |
| Specification — NW/GW (kg) | 20/30 |

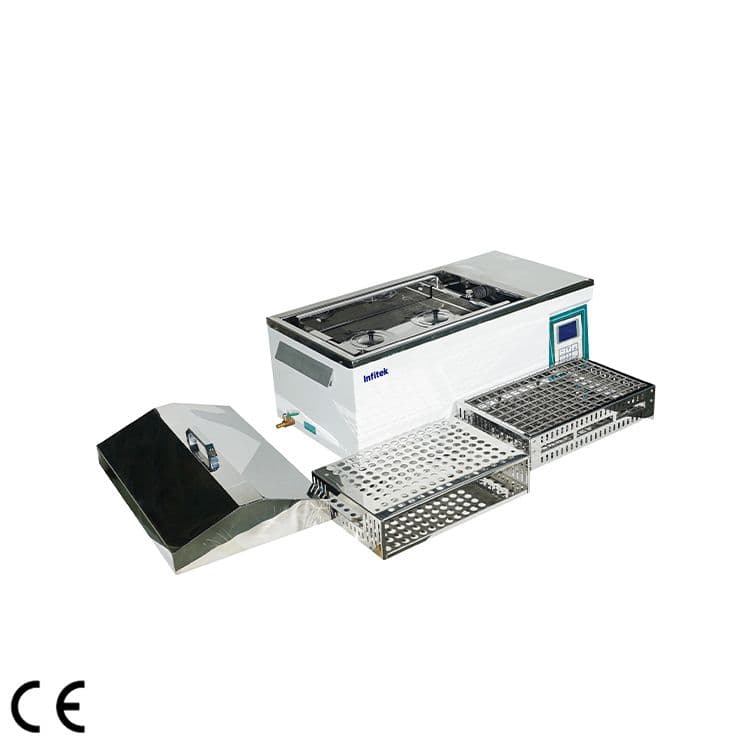

| Accessories | Water bath flask seat, tube rack |
