Foto produk resmi · 3 tampilan
General Lab

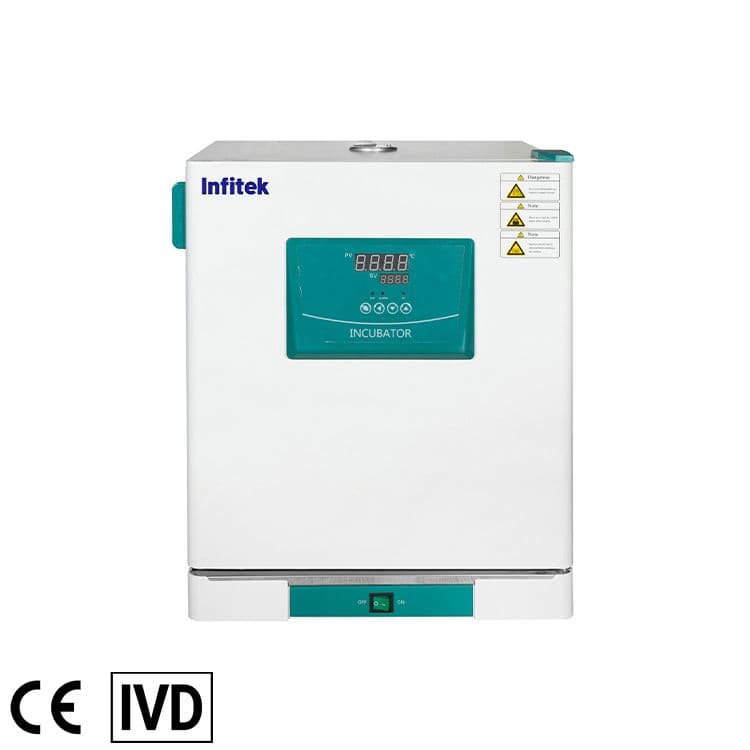

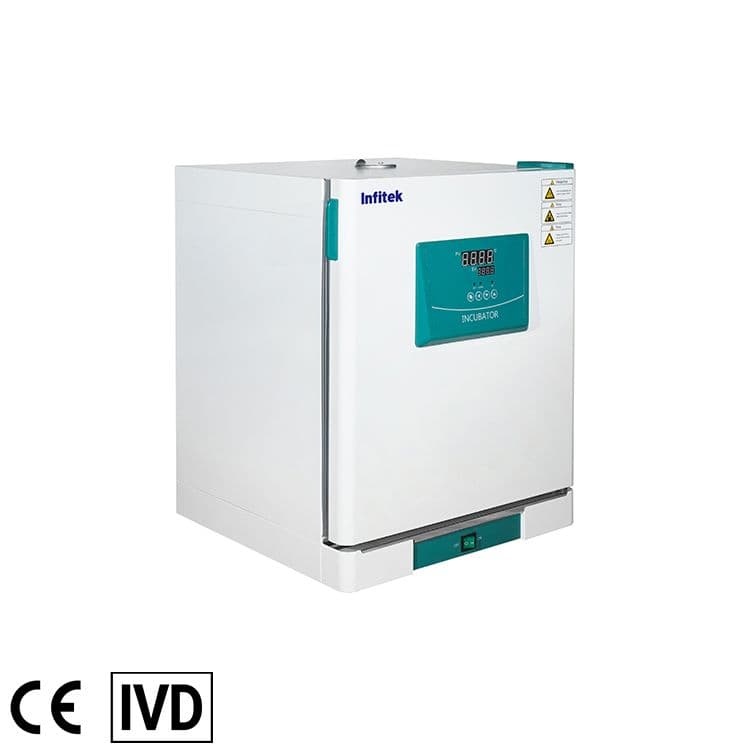

Heating Incubator ICB Series tersedia dalam volume 45L, 65L, 125L, dan 210L, dengan rentang suhu RT+5~70°C, heater berupa mica electrothermal film, ruang dalam mirror stainless steel, dan aksesori rak opsional.
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.

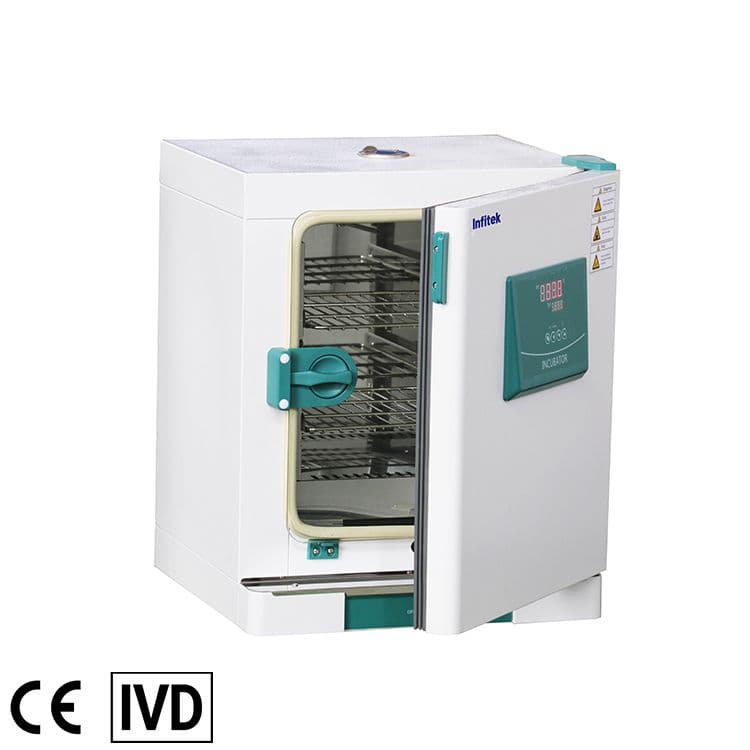

Struktur pintu ganda menggunakan kaca berkualitas tinggi sehingga sampel mudah diamati; pintu dengan strip magnetik mudah dibuka-tutup, tersegel dengan baik, dan dilengkapi fungsi mati otomatis saat pintu dibuka.

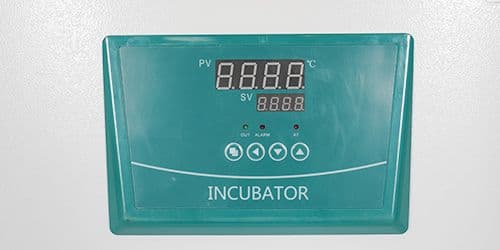

Mode Kontrol Suhu: PID Intelligent
Mode Pengaturan Suhu: Pengaturan tombol sentuh
Mode Tampilan Suhu: Suhu terukur pada baris atas LED; suhu yang diatur pada baris bawah.
Geser tabel ke samping untuk melihat seluruh 8 varian model.
| Parameter | ICB-45E | ICB-65E | ICB-125E | ICB-210E | ICB-45 | ICB-65 | ICB-125 | ICB-210 |
|---|---|---|---|---|---|---|---|---|
| Capacity(L) | 45 | 65 | 125 | 210 | 45 | 65 | 125 | 210 |
| Circulation Mode | Natural convection | Natural convection | Natural convection | Natural convection | Natural convection | Natural convection | Natural convection | Natural convection |
| Dimension(W*D*H) — Internal (mm) | 350*350*350 | 400*350*450 | 500*450*550 | 600*580*600 | 350*350*350 | 400*350*450 | 500*450*550 | 600*580*600 |
| Dimension(W*D*H) — External (mm) | 525*480*620 | 575*480*720 | 675*580*820 | 775*710*870 | 525*480*620 | 575*480*720 | 675*580*820 | 775*710*870 |
| Temperature — Range (℃) | RT+5~70 | RT+5~70 | RT+5~70 | RT+5~70 | RT+5~70 | RT+5~70 | RT+5~70 | RT+5~70 |
| Temperature — Fluctuation (℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Temperature — Resolution (℃) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature — Uniformity (℃) | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 | ±1.5 |
| Temperature — Sensor | PT100 | PT100 | PT100 | PT100 | PT100 | PT100 | PT100 | PT100 |
| Controller | PID Intelligent | PID Intelligent | PID Intelligent | PID Intelligent | PID Intelligent | PID Intelligent | PID Intelligent | PID Intelligent |
| Display | Digital LED | Digital LED | Digital LED | Digital LED | Digital LED | Digital LED | Digital LED | Digital LED |
| Timer(min) | 0~9999min (with timing wait function) | 0~9999min (with timing wait function) | 0~9999min (with timing wait function) | 0~9999min (with timing wait function) | 0~9999min (with timing wait function) | 0~9999min (with timing wait function) | 0~9999min (with timing wait function) | 0~9999min (with timing wait function) |
| Material — Internal | High strength galvanized sheet | High strength galvanized sheet | High strength galvanized sheet | High strength galvanized sheet | Mirror stainless steel | Mirror stainless steel | Mirror stainless steel | Mirror stainless steel |
| Material — External | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior | Cold rolled steel electrostatic spraying exterior |
| Shelves(Standard / Max ) | 2 / 7 | 2 / 10 | 2 / 13 | 2 / 14 | 2 / 7 | 2 / 10 | 2 / 13 | 2 / 14 |
| Exhaust hole | Φ35mm top with function of test hole | Φ35mm top with function of test hole | Φ35mm top with function of test hole | Φ35mm top with function of test hole | Φ35mm top with function of test hole | Φ35mm top with function of test hole | Φ35mm top with function of test hole | Φ35mm top with function of test hole |
| Safety Device | Over temperaure Visible& Audible alarm | Over temperaure Visible& Audible alarm | Over temperaure Visible& Audible alarm | Over temperaure Visible& Audible alarm | Over temperaure Visible& Audible alarm | Over temperaure Visible& Audible alarm | Over temperaure Visible& Audible alarm | Over temperaure Visible& Audible alarm |
| Electricity — Voltage/Frequency | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz | AC 220/110V, 50/60Hz |
| Electricity — Consumption (W) | 350 | 450 | 600 | 700 | 350 | 450 | 600 | 700 |
| N.W./G.W. (kg) | 27/40 | 32/53 | 45/60 | 55/70 | 27/40 | 32/45 | 45/60 | 55/70 |
| Package Dimension (W*D*H) (mm) | 595*562*795 | 650*650*960 | 745*662*990 | 850*810*1050 | 595*562*795 | 645*562*885 | 745*662*990 | 845*792*1040 |
| Optional | Spare shelf | Spare shelf | Spare shelf | Spare shelf | Spare shelf | Spare shelf | Spare shelf | Spare shelf |
Tim sales kami akan mengirimkan quotation lengkap (harga, lead time, biaya instalasi) dalam 1×24 jam kerja.
