Foto produk resmi · 3 tampilan
General Lab

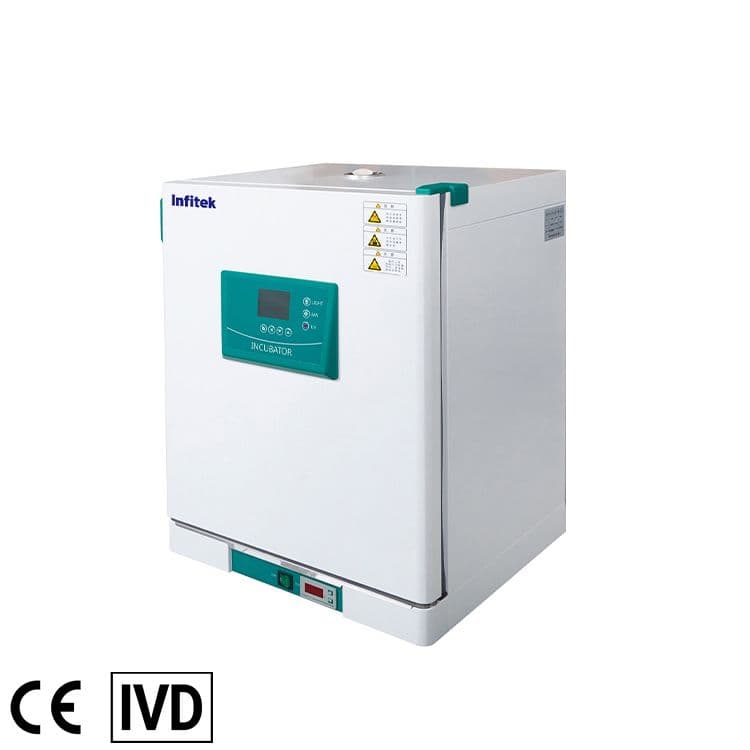

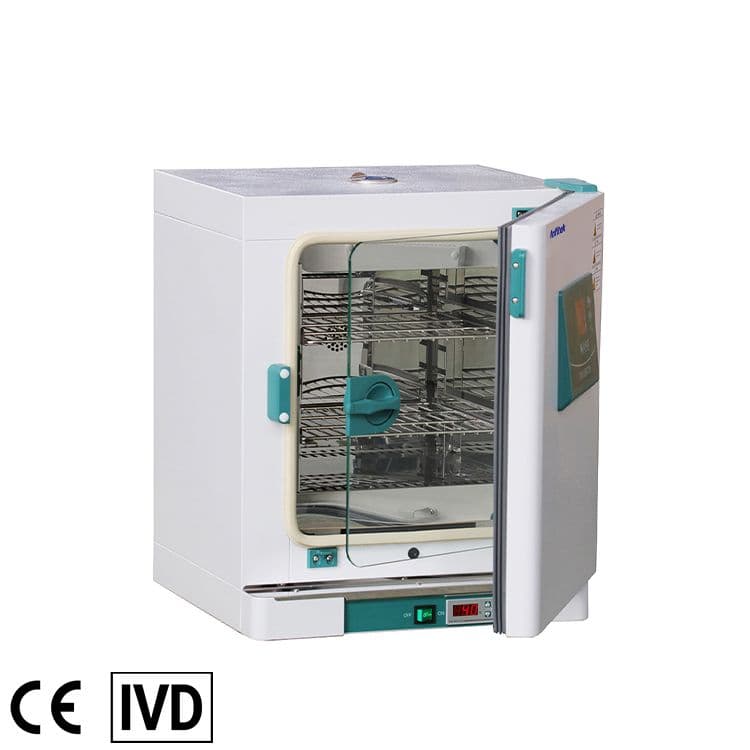

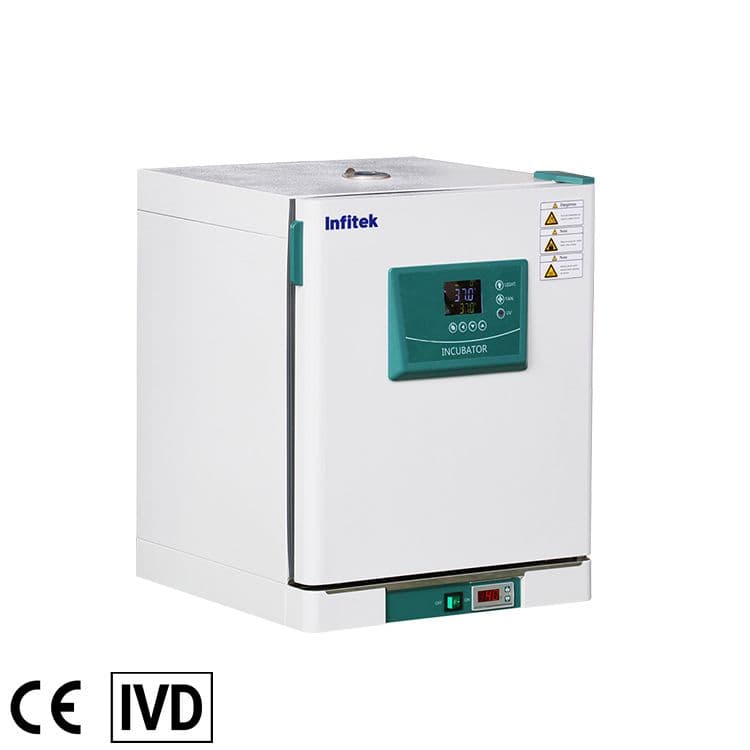

Constant Temperature Incubator ICB-P Series tersedia dalam volume interior 45L, 65L, 125L, dan 210L, dengan rentang suhu RT+5~70°C, sirkulasi udara breeze, ruang dalam mirror stainless steel, dan kontrol suhu PID Intelligent.
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Dilengkapi lampu standar, lampu UV, dan kipas sirkulasi breeze.
Pembatas suhu digital independen berpresisi tinggi.
Geser tabel ke samping untuk melihat seluruh 4 varian model.
| Parameter | ICB-45P | ICB-65P | ICB-125P | ICB-210P |
|---|---|---|---|---|
| Cycle Mode | Breeze circulation | Breeze circulation | Breeze circulation | Breeze circulation |
| Function — Tem. Range | RT+5~70℃ | RT+5~70℃ | RT+5~70℃ | RT+5~70℃ |
| Function — Tem. Resolution Ratio | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Function — Tem. Motion | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ |
| Function — Tem. Uniformity | ±0.8℃ | ±0.8℃ | ±0.8℃ | ±0.8℃ |
| Structure — Inner Chamber | Mirror stainless steel | Mirror stainless steel | Mirror stainless steel | Mirror stainless steel |
| Structure — Outer Shell | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior | Cold rolling steel electrostatic spraying exterior |
| Structure — Insulation layer | High quality foam board | High quality foam board | High quality foam board | High quality foam board |
| Structure — Heater | Mica electrothermal film | Mica electrothermal film | Mica electrothermal film | Mica electrothermal film |
| Structure — Power Rating | 0.35kW | 0.45kW | 0.6kW | 0.7kW |
| Structure — Exhaust hole | φ28mm top(with function of test hole) | φ28mm top(with function of test hole) | φ28mm top(with function of test hole) | φ28mm top(with function of test hole) |
| Controller — Tem. control mode | PID Intelligent | PID Intelligent | PID Intelligent | PID Intelligent |
| Controller — Tem. setting mode | Touch button setting | Touch button setting | Touch button setting | Touch button setting |
| Controller — Tem. display mode | Digital temperature: LCD upper row; Setting temperature: the lower row | Digital temperature: LCD upper row; Setting temperature: the lower row | Digital temperature: LCD upper row; Setting temperature: the lower row | Digital temperature: LCD upper row; Setting temperature: the lower row |
| Controller — Timer | 0-9999 min (with timing wait function) | 0-9999 min (with timing wait function) | 0-9999 min (with timing wait function) | 0-9999 min (with timing wait function) |
| Controller — Operation function | Fixed temperature operation,timing function, auto stop. | Fixed temperature operation,timing function, auto stop. | Fixed temperature operation,timing function, auto stop. | Fixed temperature operation,timing function, auto stop. |
| Controller — Additional funciton | LED Floodlight, Sensor deviation correction Temperature overshoot self-tuning Power-off parameter memory | LED Floodlight, Sensor deviation correction Temperature overshoot self-tuning Power-off parameter memory | LED Floodlight, Sensor deviation correction Temperature overshoot self-tuning Power-off parameter memory | LED Floodlight, Sensor deviation correction Temperature overshoot self-tuning Power-off parameter memory |
| Controller — Sensor | PT100 | PT100 | PT100 | PT100 |
| Safety device | Digitial, over temperature sound-light alarm | Digitial, over temperature sound-light alarm | Digitial, over temperature sound-light alarm | Digitial, over temperature sound-light alarm |
| Specification — Inner Chamber size(W*L*H)(mm) | 350*350*350 | 400*350*450 | 500*450*550 | 600*580*600 |
| Specification — Exterior size (W*L*H)(mm) | 525*480*620 | 575*480*720 | 675*580*820 | 775*710*870 |
| Specification — Packing size (W*L*H)(mm) | 580*600*780 | 655*572*875 | 680*760*1000 | 855*802*1025 |
| Specification — Volume | 45L | 65L | 125L | 210L |
| Specification — Shelf number | 7 | 9 | 13 | 14 |
| Specification — Load per rack | 15kg | 15kg | 15kg | 15kg |
| Specification — Shelf space | 35mm | 35mm | 35mm | 35mm |
| Specification — Supply(50/60HZ)Current rating | AC220V/1.1A | AC220V/1.1A | AC220V/2.3A | AC220V/2.7A |
| Specification — NW/GW (kg) | 27/44 | 32/35 | 45/49 | 58/63 |
| Accessory — Shelf | 2 | 2 | 2 | 2 |
| Accessory — Shelf frame | 4 | 4 | 4 | 4 |
| Optional Accessories | Shelf, USB interface | Shelf, USB interface | Shelf, USB interface | Shelf, USB interface |
