General Lab
Biological Microscope, MSC-B208T(Siedentopf)
Biological Microscope MSC-B208T dilengkapi kepala pengamatan trinokular Siedentopf dengan sudut 30°, eyepiece Wide Field WF10X18mm, objektif akromatik 4X, 10X, 20X, 40X, dan 100X, serta dapat ditambahkan display atau kamera.
Yang akan anda dapatkan jika membeli Biological Microscope, MSC-B208T(Siedentopf) dari kami
- ✓
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
- ✓
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
- ✓
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
- ✓
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Spesifikasi Teknis
| Parameter | MSC-B208T(Siedentopf) |
|---|---|
| Optics | Finite Distance Optical System / *Infinity Optical System |
| Observation Tube | Tilting trinocular, interpupillary 55-75mm |
| Viewing Head | Siedentopf head, inclined at 30° |
| Optical Coating | Transmittance ≥ 95% |
| Eyepieces | Wide field eyepiece WF10×18mm |
| Eyepieces | *Wide field eyepiece WF10×20mm |

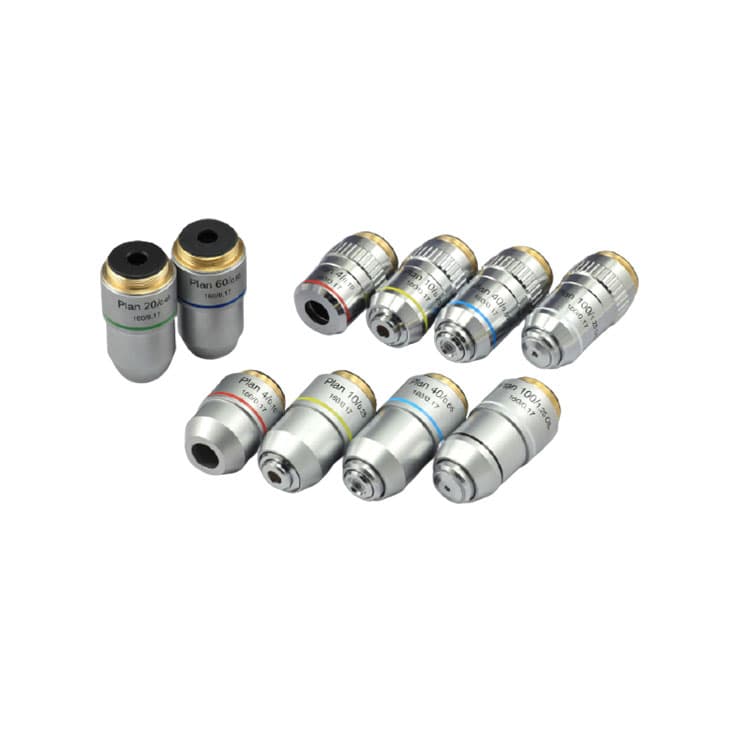

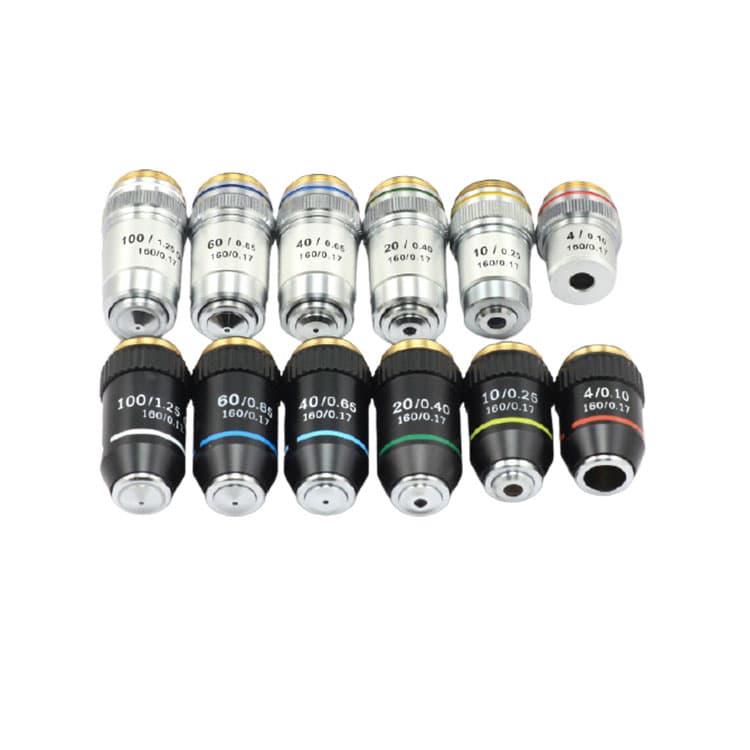

| Objective | Achromatic objective 4X, 10X, *20X,40X, 100X |
| Objective | *Plan achromatic objective: 4X, 10X, *20X, 40X, 100X |
| Objective | *Plan phase objective: Ph10X, 20X, 40X, 100X |
| Objective | *Infinite plan achromatic objective: 4X, 10X, *20X, 40X,100X |
| Nosepiece | Quadruple nosepiece / *Quintuple nosepiece |
| Stage | Double layers mechanical stage 140×135mm / 75×50mm (*Heating module) |
| Condenser | Abbe NA1.25 with iris diaphragm & filter |
| Focusing | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 22mm |
| Illumination | 3W LED Illumination, brightness adjustable |
| Illumination | *6V 20W Halogen lamp, brightness adjustable |
| Electricity | 100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) | 370*260*490 |
| Gross Weight (Kg) | 7 |
| *Optional | Turret phase contrast kit, dark field attachment, 360° rotatable viewing head |
| *Optional | MSC-B208T: Microscope camera (Standard imaging software) / Win 10 Pad / Digital display |
| *Optional Configuration | *Optional Configuration |
