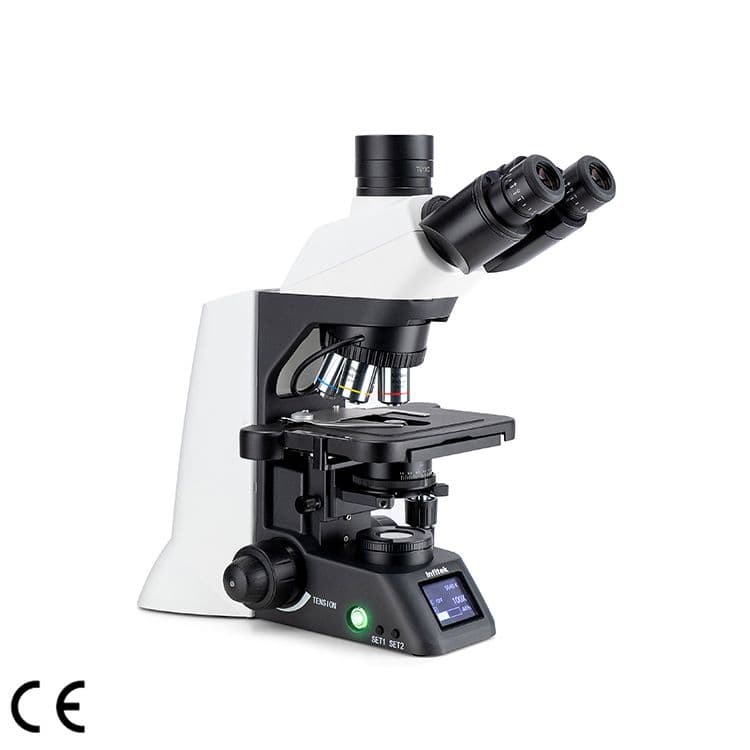

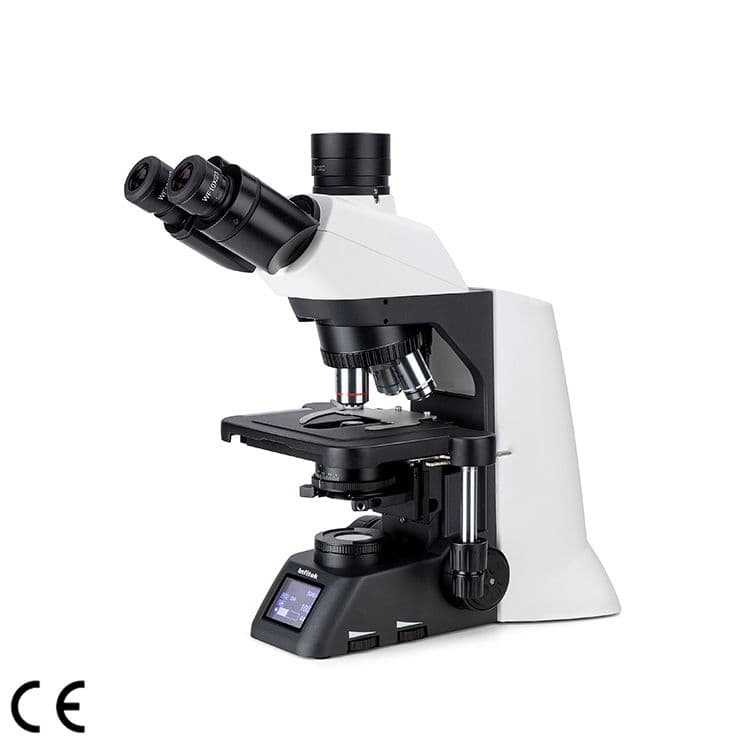

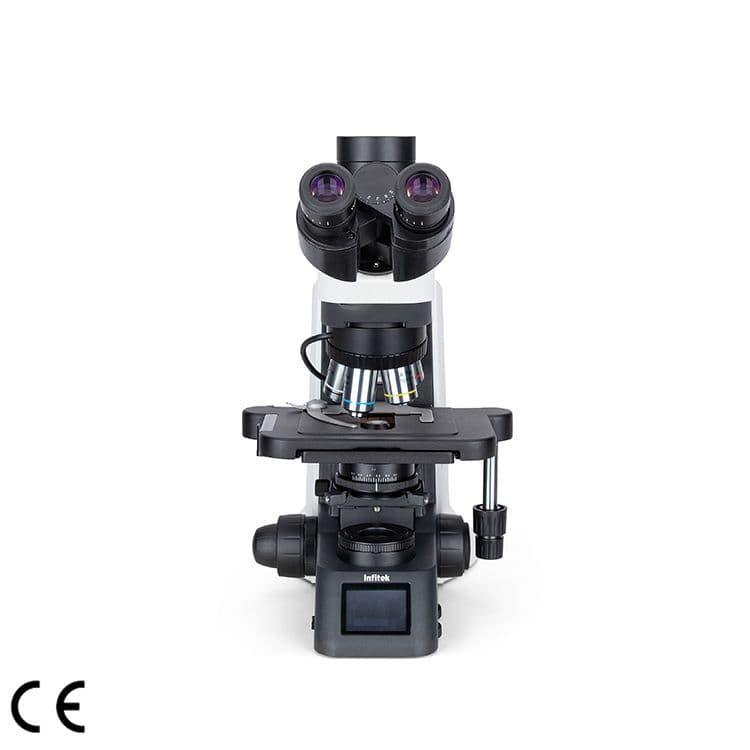

Biological Microscope, MSC-B45
MSC-B45
Biological Microscope MSC-B45 dilengkapi eyepiece wide-field WF10X/F.N. 23, Plan Achromatic Objectives A-plan 4X/10X/40X/100X, dan quintuple nosepiece. Alat ini memiliki layar LCD, fitur ECO sensing, serta fungsi voice broadcast opsional.
Yang akan anda dapatkan jika membeli Biological Microscope, MSC-B45 dari kami
- ✓
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
- ✓
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
- ✓
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
- ✓
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Spesifikasi Teknis
| Parameter | MSC-B45 |
|---|---|
| Optics | Infinity-corrected optical system; bright field observation; upgradable to phase contrast, fluorescence, dark field, etc. |
| Observation Tube | Tilting trinocular, Interpupillary 50-75mm |
| Viewing Head | Siedentopf head, inclined at 30° |
| Eyepiece | Wide-field WF10X / F.N. 23; Diopter adjustable |
| Objective | Plan Achromatic Objectives: A-plan 4X/10X/40X/100X (Other types and magnifications optional) |
| Nosepiece | Inward-facing quintuple coded nosepiece; features brightness memory and brightness adjustment for different magnifications |
| Stage | Mechanical stage, Size: 232 × 158mm, Moving range:80×50mm |
| Focusing | Coaxial coarse and fine adjustment, focusing range 25mm, fine division 0.002mm |
| Transmitted Illumination | Abbe condenser N.A. 1.1; 3W LED light source with continuously adjustable color temperature to provide better illumination for various samples |
| Display | Integrated LCD screen; Real-time display of current objective magnification, brightness level, voice broadcast status, and ECO mode |
| Main Body | ECO sensing function: Auto-off when user is away, auto-on when user returns; improves convenience and energy efficiency. |
| Main Body | Supports powering via external power banks, expanding the microscope’s application range and usage scenarios. |
| Main Body | Supports USB programmable control, allowing for expansion of software-side control and integration. |
| Main Body | Optional voice broadcast function provides real-time announcements of objective magnification when switching, ensuring effortless and convenient operation. |
Fitur Utama
- Layar LCD terintegrasi menampilkan perbesaran objektif, kecerahan, kontrol suara, dan mode ECO secara real time, memberikan kendali penuh atas status alat.
- Sistem optik infinity-corrected untuk kualitas citra yang unggul.
- Quintuple coded nosepiece menghadap ke dalam dan eyepiece wide-field F.N.23.
- Dapat ditingkatkan ke sistem mikroskop motorized dan mode pengamatan fluorescence.
