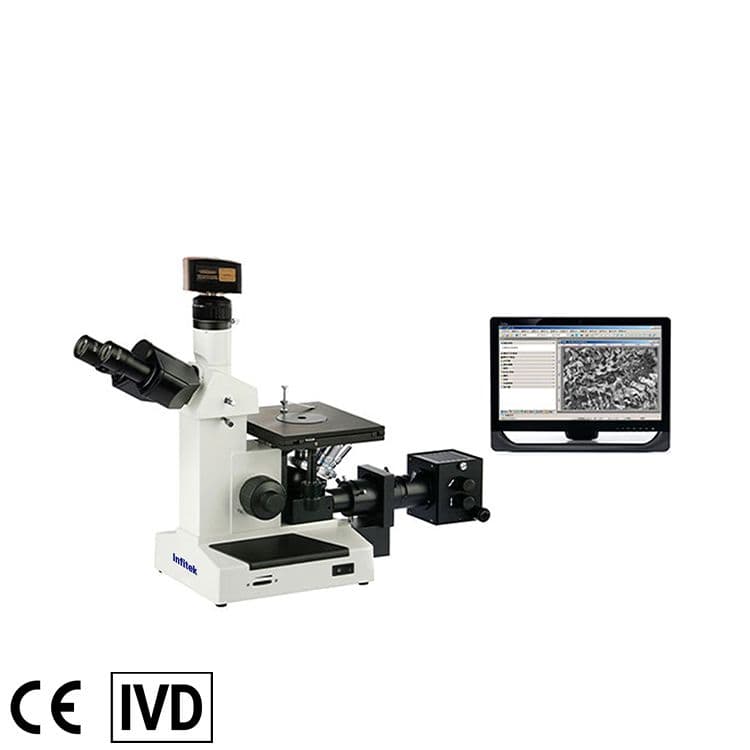

Metallurgical Microscope, MSC-M4XC
MSC-M4XC
Metallurgical Microscope MSC-M4XC menggunakan sistem optik finite distance, binocular tilting dengan jarak interpupil 55-75mm, dan transmitansi ≥95%.
Yang akan anda dapatkan jika membeli Metallurgical Microscope, MSC-M4XC dari kami
- ✓
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
- ✓
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
- ✓
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
- ✓
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Spesifikasi Teknis
| Parameter | MSC-M4XC |
|---|---|
| Optics | Finite Distance Optical System |
| Observation Tubes | Tilting binocular, interpupillary 55-75mm |
| Viewing Head | Seidentopf head, inclined at 30° |
| Optical Coating | Transmittance ≥ 95% |
| Eyepiece | WF10X/18mm, with scale of cross hair |

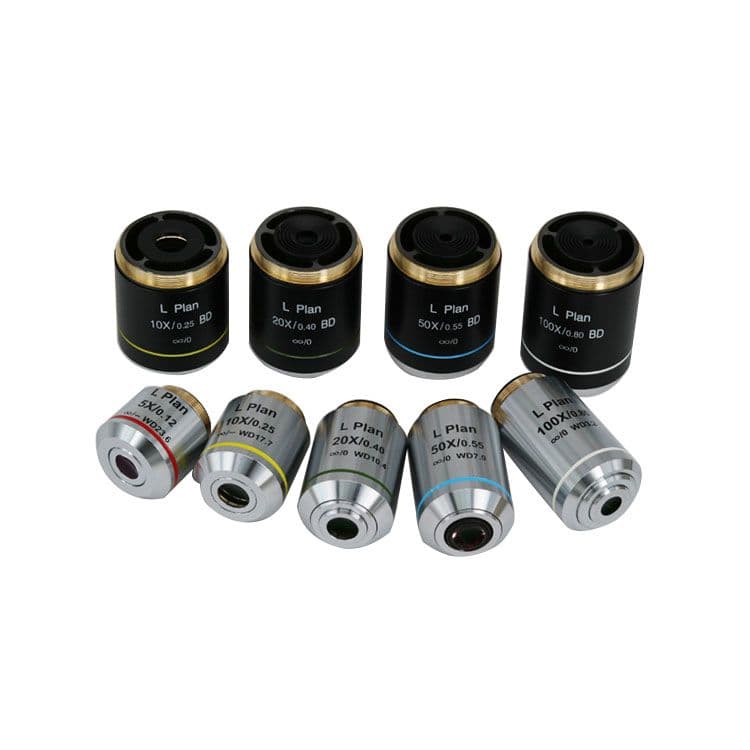

| Objective | PL L10X/0.25 LWD 8.9mm |
| Objective | PL L20X/0.40 LWD 3.75mm |
| Objective | PL L40X/0.60 LWD 2.69mm |
| Objective | SPL 100X/0.90 LWD 0.44mm |
| Objective | *PL L50X/0.70 LWD 2.02mm |
| Objective | *PL L60X/0.75 LWD 1.34mm |
| Objective | *PL L80X/0.80 LWD 0.96mm |
| Objective | *PL L100X/0.85 LWD 0.4mm |
| Nosepiece | Backward quadruple /Backward *Quintuple |
| Stage | Double layer mechanical stage 180×150mm, moving range 15mm×15mm |
| Focusing | Coaxial coarse and fine adjustment, fine division 2um |
| *Software | *Grain size analysis software |
| Illumination System | 6V/20W halogen light, brightness adjustable |
| Illumination System | Polarizer and analyzer |
| Illumination System | Green, blue, yellow filter |
| Electricity | 100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) | 400×300×450 |
| Gross Weight (Kg) | 11 |
| *Optional | Photo/Video attachment; Micrometer scale 0.01mm; Fluorescent attachment |
| *Optional | Photo/Video attachment; Micrometer scale 0.01mm; Fluorescent attachment |
