Big Forced Air Drying Oven, DOF 640-3070 Series — Oven & Furnace Laboratorium

Foto produk resmi · 4 tampilan

General Lab

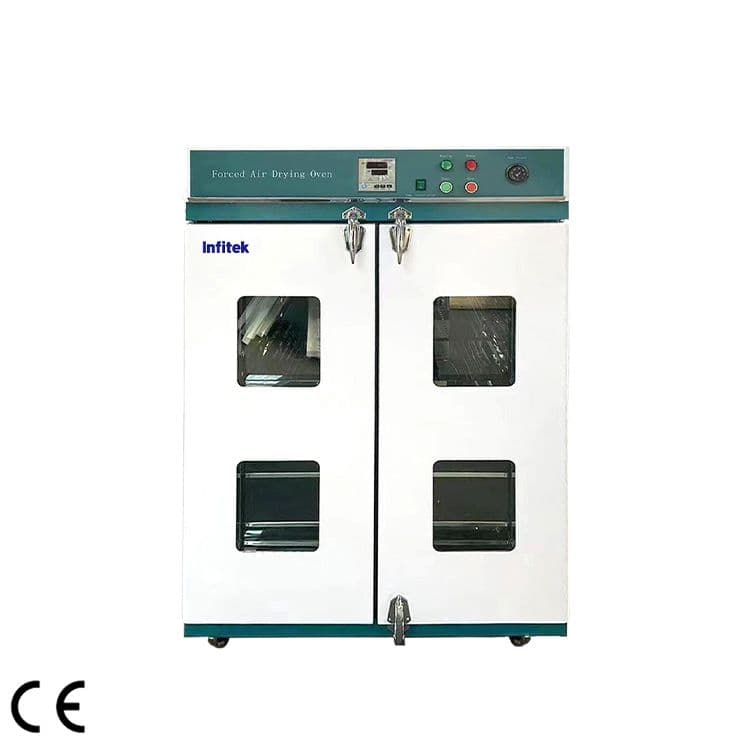

Big Forced Air Drying Oven, DOF 640-3070 Series

Big Forced Air Drying Oven DOF 640-3070 Series tersedia dalam volume 640L, 1000L, 1300L, 1870L, dan 3070L, dengan rentang suhu RT+10-250℃ hingga RT+10~300℃, resolusi suhu 0.1℃, exhaust hole di bagian atas atau samping, serta kontrol suhu PID intelligent control atau multi-segment.

Yang akan anda dapatkan jika membeli Big Forced Air Drying Oven, DOF 640-3070 Series dari kami

  • ✓

    Garansi Resmi Prinsipal

    Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.

  • ✓

    Instalasi & Training

    Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.

  • ✓

    Dukungan Teknis & Sparepart

    Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.

  • ✓

    Opsi Kalibrasi

    Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.

Tanya via WhatsAppMinta Quotation

Spesifikasi Teknis

DOF-640E/DOF-640DOF-1000E/DOF-1000 / DOF-1300E DOF-1300 DOF-1870E DOF-1870 DOF-3070E DOF-3070

Tabel Spesifikasi 2

Geser tabel ke samping untuk melihat seluruh 5 varian model.

ParameterDOF-640E /DOF-640DOF-1000E /DOF-1000DOF-1300E /DOF-1300DOF-1870E /DOF-1870DOF-3070E /DOF-3070
Cycle ModeForced air convectionForced air convectionForced air convectionForced air convectionForced air convection
Volume640L1000L1300L1300L1870L
Temp. RangeRT+10~250℃RT+10~250℃RT+10~250℃RT+10~300℃RT+10~300℃
Temp. Resolution0.1℃0.1℃0.1℃0.1℃0.1℃
Temp. Fluctuation±1℃±1℃±1℃±1℃±1℃
Temp. Uniformity±3%±3%±3%±3%±3%
Inner Chamber MaterialDOF-640/1000/1300/1870/3070E: Iron inner chamber ; DOF-640/1000/1300/1870/3070: Stainless steel inner chamber ;DOF-640/1000/1300/1870/3070E: Iron inner chamber ; DOF-640/1000/1300/1870/3070: Stainless steel inner chamber ;DOF-640/1000/1300/1870/3070E: Iron inner chamber ; DOF-640/1000/1300/1870/3070: Stainless steel inner chamber ;DOF-640/1000/1300/1870/3070E: Iron inner chamber ; DOF-640/1000/1300/1870/3070: Stainless steel inner chamber ;DOF-640/1000/1300/1870/3070E: Iron inner chamber ; DOF-640/1000/1300/1870/3070: Stainless steel inner chamber ;
StructureExternal material: Galvanized sheet electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Stainless steel heating tube ; Exhaust hole: side or top (with function of test hole);External material: Galvanized sheet electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Stainless steel heating tube ; Exhaust hole: side or top (with function of test hole);External material: Galvanized sheet electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Stainless steel heating tube ; Exhaust hole: side or top (with function of test hole);External material: Galvanized sheet electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Stainless steel heating tube ; Exhaust hole: side or top (with function of test hole);External material: Galvanized sheet electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Stainless steel heating tube ; Exhaust hole: side or top (with function of test hole);
ControllerTemp. sensor: PT100; Temp. set: soft touch button; Temp. control: Intelligent PID controller; Temp. display: LED display; Operation function: fixed temperature operation, timing function, auto stop; Additional function: Sensor deviation correction, temperature overshoot, internal parameter locking, power-off parameter memory;Temp. sensor: PT100; Temp. set: soft touch button; Temp. control: Intelligent PID controller; Temp. display: LED display; Operation function: fixed temperature operation, timing function, auto stop; Additional function: Sensor deviation correction, temperature overshoot, internal parameter locking, power-off parameter memory;Temp. sensor: PT100; Temp. set: soft touch button; Temp. control: Intelligent PID controller; Temp. display: LED display; Operation function: fixed temperature operation, timing function, auto stop; Additional function: Sensor deviation correction, temperature overshoot, internal parameter locking, power-off parameter memory;Temp. sensor: PT100; Temp. set: soft touch button; Temp. control: Intelligent PID controller; Temp. display: LED display; Operation function: fixed temperature operation, timing function, auto stop; Additional function: Sensor deviation correction, temperature overshoot, internal parameter locking, power-off parameter memory;Temp. sensor: PT100; Temp. set: soft touch button; Temp. control: Intelligent PID controller; Temp. display: LED display; Operation function: fixed temperature operation, timing function, auto stop; Additional function: Sensor deviation correction, temperature overshoot, internal parameter locking, power-off parameter memory;
Timing Setting0~9999mins(with timing wait function)0~9999mins(with timing wait function)0~9999mins(with timing wait function)0~9999mins(with timing wait function)0~9999mins(with timing wait function)
Safety DeviceOne key to overheat power offOne key to overheat power offOne key to overheat power offOne key to overheat power offOne key to overheat power off
Shelves2pcs/adjustable, max. load 30kg/shelf, shelf space 70mm2pcs/adjustable, max. load 30kg/shelf, shelf space 70mm2pcs/adjustable, max. load 30kg/shelf, shelf space 70mm2pcs/adjustable, max. load 30kg/shelf, shelf space 70mm2pcs/adjustable, max. load 30kg/shelf, shelf space 70mm
Consumption5.4kW6.6kW9kW9kW12kW
Power Supply380V, 50Hz380V, 50Hz380V, 50Hz380V, 50Hz380V, 50Hz
Internal Size(W*D*H)800*800*1000mm1000*1000*1000mm1000*1000*1300mm1000*1000*1300mm1200*1200*1300mm
External Size(W*D*H)940*1000*1400mm1040*1200*1400mm1230*1200*1670mm1230*1200*1670mm1330*1400*1670mm
Package Size(W*D*H)1040*1110*1520mm1260*1290*1520mm1350*1300*1890mm1350*1300*1890mm1550*1500*1890mm
Net/Gross Weight200kg260kg350kg350kg480kg
