General Lab

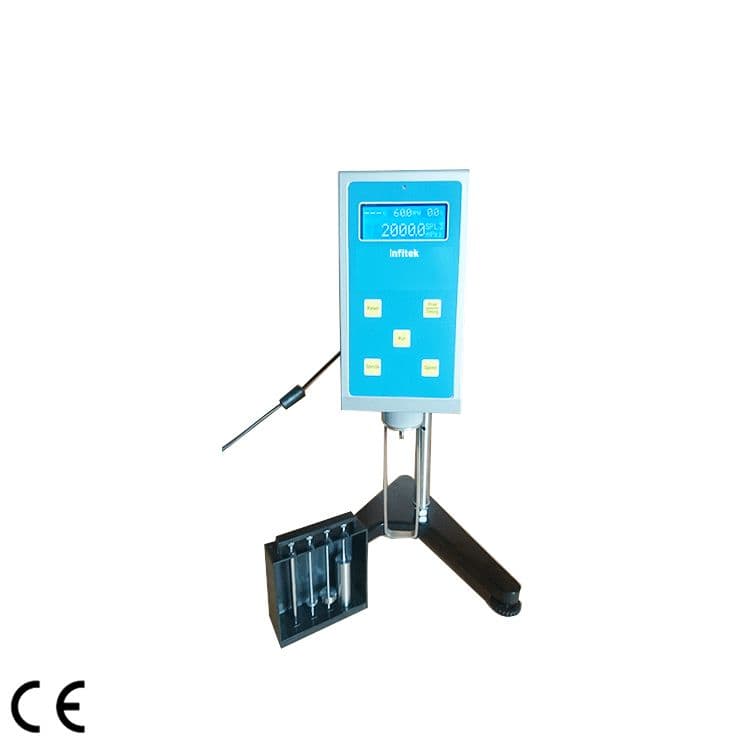

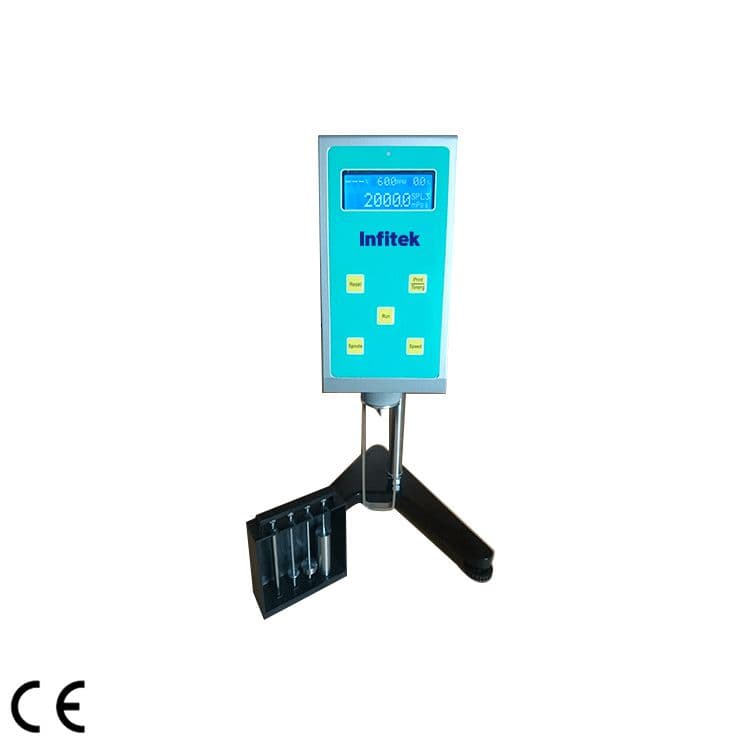

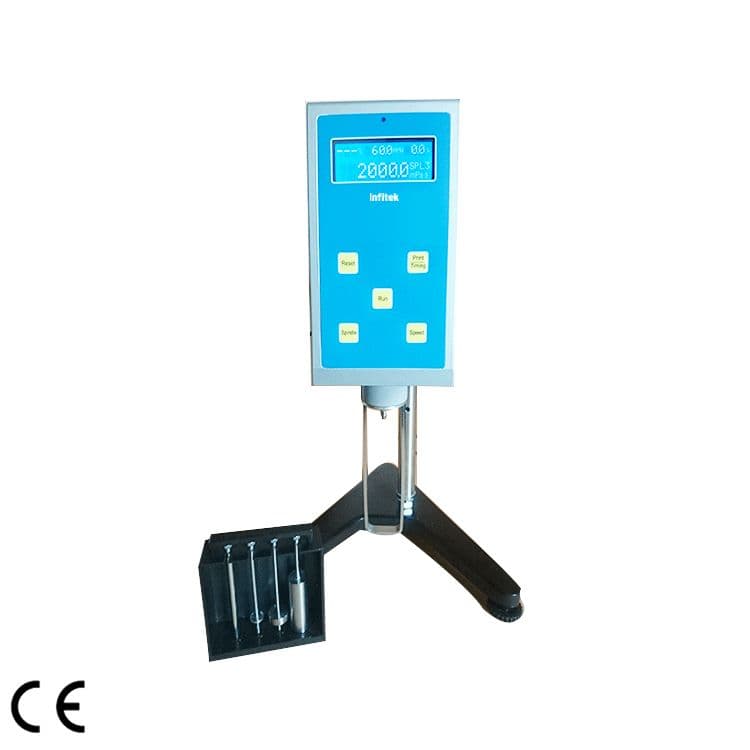

Digital Viscometer VSC-N Series memiliki rentang pengukuran 20~2.000.000 mPa·s, kecepatan rotasi dapat disesuaikan pada 4/8 tingkat (0.3-60 RPM), dan 4 jenis spindle.
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Thermostatic bath opsional yang cocok dipasangkan: A-LC1008, refrigeran ramah lingkungan R134a, berat kemasan 28kg, ukuran 586*485*495mm; A-RC0508, berat kemasan 20.5kg, ukuran 586*485*495mm
Geser tabel ke samping untuk melihat seluruh 3 varian model.
| Parameter | VSC-N4 | VSC-N5 | VSC-N8 |
|---|---|---|---|
| Measuring Range (mPa·s) | 20~2,000,000 | 20~100,000 | 20~2,000,000 |
| Rotating Speed(RPM) | Eight adjustable speed:0.3, 0.6, 1.5, 3, 6, 12, 30, 60 | Four adjustable speed:6, 12, 30, 60 | Eight adjustable speed:0.3, 0.6, 1.5, 3, 6, 12, 30, 60 |
| Number of Spindles | Spindles (Code L1, L2, L3, L4) are equipped with the product | Spindles (Code L1, L2, L3, L4) are equipped with the product | Spindles (Code L1, L2, L3, L4) are equipped with the product |
| Accuracy | ±5% relative error | ±1% full scale range in use | ±1% full scale range in use |
| Return Capacity | ±1% relative error | ±0.5% full scale range in use | ±0.5% full scale range in use |
| Power | Power adapter (input: 100-240V，50/60Hz) | Power adapter (input: 100-240V，50/60Hz) | Power adapter (input: 100-240V，50/60Hz) |
| LCD screen display | The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value. | The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value. |
| Package Dimension (W*D*H)(mm) | 420*370*400 | 420*370*400 | 420*370*400 |
| Weight | 8kg | 8kg | 8kg |
Geser tabel ke samping untuk melihat seluruh 3 varian model.
| Parameter | 1 pce | ascending and falling rack | 1 set |
|---|---|---|---|
| standard spindle | 1 set | power adapter | 1 pce |
| protective frame of spindle | 1 pce | spanner | 1 pce |
| Seat and leveling feet | 1 set | RS232 standard output interface | 1 pce |
Tim sales kami akan mengirimkan quotation lengkap (harga, lead time, biaya instalasi) dalam 1×24 jam kerja.
