Foto produk resmi · 4 tampilan
General Lab

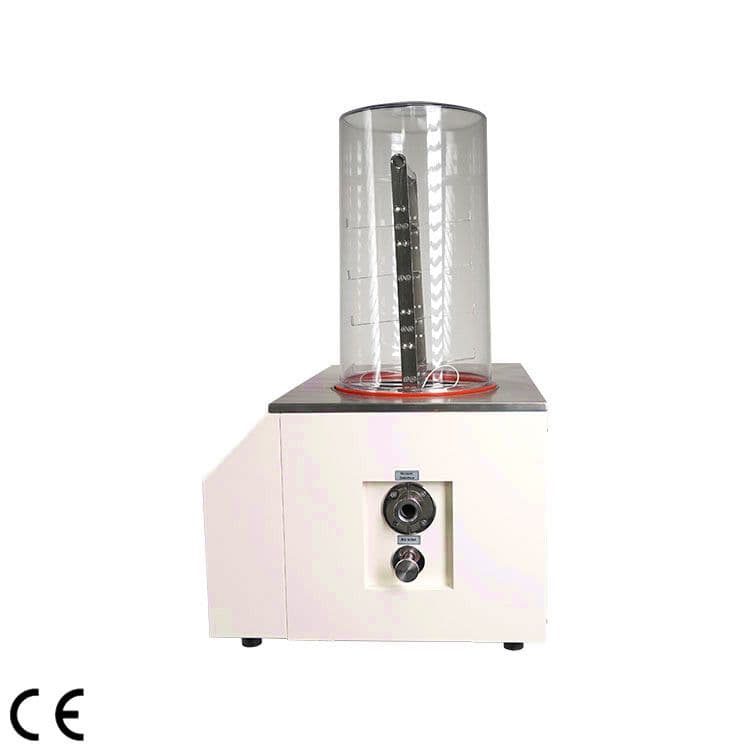

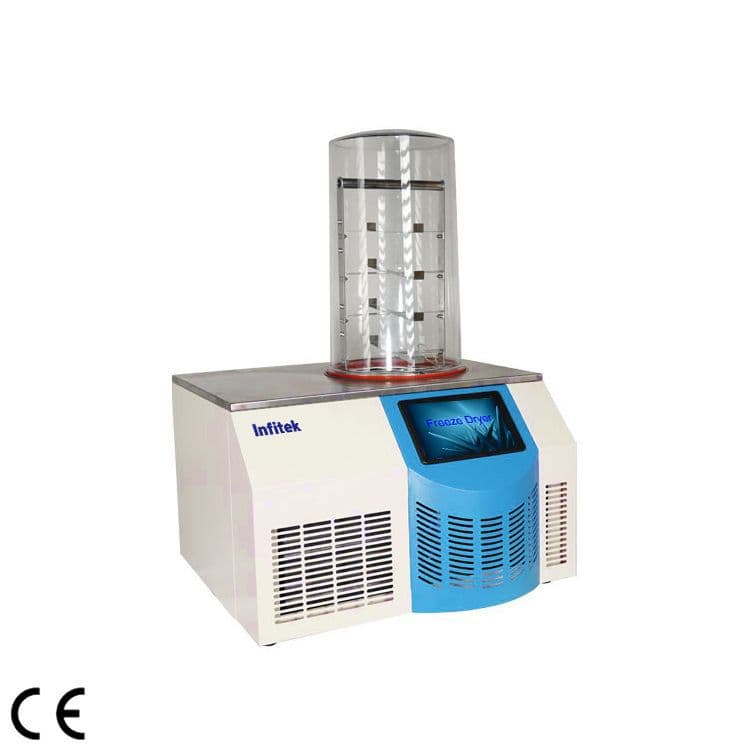

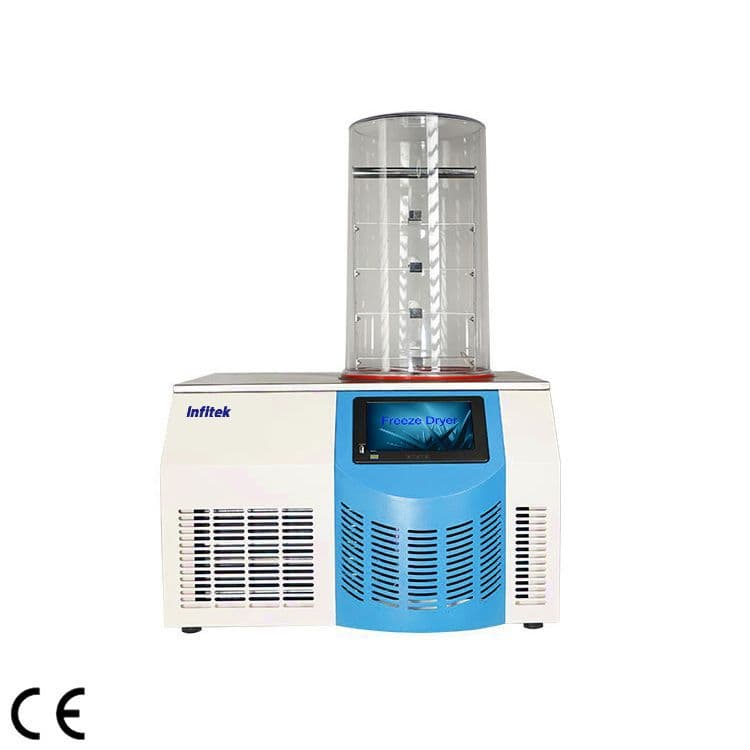

Benchtop Freeze Dryer LYO60B Series memiliki luas freeze drying 0.12m2, suhu condenser akhir -60℃, kapasitas ice condenser 3 Kg/24h, dan kapasitas muat material 1200 ml. Menggunakan compressor SECOP dengan tipe standard chamber.
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
LYO60B-1S Freeze Dryer menggunakan suhu sangat dingin (-60°C) dan vakum untuk menghilangkan kelembapan dari bahan. Umumnya digunakan untuk freeze-dry vaksin, bakteri, obat-obatan, makanan, dan lainnya.
1. Opsional fungsi defrost pemanas listrik untuk condenser.
Geser tabel ke samping untuk melihat seluruh 4 varian model.
| Parameter | LYO60B-1S | LYO60B-1P | LYO60B-1T | LYO60B-1PT |
|---|---|---|---|---|
| Type | Standard chamber | Standard chamber with 8 port manifolds | Stoppering chamber | Stoppering chamber with 8 port manifolds |
| Freeze Drying Area(m²) | 0.12 | 0.12 | 0.09 | 0.09 |
| Tray(Qty) | 4/6(Optional)pcs | 4/6(Optional)pcs | 3pcs | 3pcs |
| Tray Dimensions(Diameter*H)(mm) | Φ200*20 | Φ200*20 | Φ200*20 | Φ200*20 |
| Height Between Trays(mm) | 76/50 | 76/50 | 70(average) | 70(average) |
| Condenser Temperature (℃) | -60 | -60 | -60 | -60 |
| Condenser Capacity (L) | 6.5 | 6.5 | 6.5 | 6.5 |
| Condenser Dimensions(Diameter*H)(mm) | Φ215*190 | Φ215*190 | Φ215*190 | Φ215*190 |
| Vacuum Degree(no-loading) (Pa) | ≤5 | ≤5 | ≤5 | ≤5 |
| Ice Condensing Capacity (kg/24h) | 3 | 3 | 3 | 3 |
| Loading Capacity/ Shelf (mL) | 300 | 300 | 300 | 300 |
| Total Loading Capacity of Material Tray (mL) | 1200 | 1200 | 900 | 900 |
| Drying Chamber Dimensions(standard) | Lower circle:Φ260mm;Upper circle:Φ240mm;Height:Φ450mm | Lower circle:Φ260mm;Upper circle:Φ240mm;Height:Φ450mm | Lower circle:Φ260mm;Upper circle:Φ240mm;Height:Φ450mm | Lower circle:Φ260mm;Upper circle:Φ240mm;Height:Φ450mm |
| Total Qty. Of Vial Φ22 | 260 | 260 | 195 | 195 |
| Total Qty. Of Vial Φ16 | 480 | 480 | 360 | 360 |
| Total Qty. Of Vial Φ12 | 920 | 920 | 690 | 690 |
| Refrigerant | CFC-free | CFC-free | CFC-free | CFC-free |
| Standard Accessories | Vacuum pump 2L/s,8m³/h,material tray,material rack,PC covernitrogen gas filling valve,oil mist filter(for all modes) Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 1P/PT) | Vacuum pump 2L/s,8m³/h,material tray,material rack,PC covernitrogen gas filling valve,oil mist filter(for all modes) Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 1P/PT) | Vacuum pump 2L/s,8m³/h,material tray,material rack,PC covernitrogen gas filling valve,oil mist filter(for all modes) Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 1P/PT) | Vacuum pump 2L/s,8m³/h,material tray,material rack,PC covernitrogen gas filling valve,oil mist filter(for all modes) Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 1P/PT) |
| Optional Function&Accessories | Electric defrost function(for all modes) 800mL wide-mouth flask(only for model 1P/PT) | Electric defrost function(for all modes) 800mL wide-mouth flask(only for model 1P/PT) | Electric defrost function(for all modes) 800mL wide-mouth flask(only for model 1P/PT) | Electric defrost function(for all modes) 800mL wide-mouth flask(only for model 1P/PT) |
| Consumption | 0.85kW | 0.85kW | 0.85kW | 0.85kW |
| Electricity | AC220V,50Hz(standard), other electricity type can be customized | AC220V,50Hz(standard), other electricity type can be customized | AC220V,50Hz(standard), other electricity type can be customized | AC220V,50Hz(standard), other electricity type can be customized |
| External Dimensions(W*D*H)(mm) | 600*540*374/820 | 600*540*374/820 | 600*540*374/880 | 600*540*374/880 |
| Shipping Dimensions(W*D*H) — Main body | 710*680*600mm | 710*680*600mm | 710*680*600mm | 710*680*600mm |
| Shipping Dimensions(W*D*H) — Drying chamber | 360*360*590mm | 360*360*590mm | 360*360*590mm | 360*360*590mm |
| Shipping Dimensions(W*D*H) — Vacuum pump | 590*230*380mm | 590*230*380mm | 590*230*380mm | 590*230*380mm |
| Gross Weight | 110kg | 110kg | 110kg | 110kg |
Freeze dryer seri laboratorium ini cocok untuk uji freeze drying sampel biomedis laboratorium.
Digunakan secara luas di industri obat-obatan, produk biologis, kimia, dan makanan.
Teknologi freeze-drying diterapkan pada zat yang sensitif terhadap panas seperti antibiotik, vaksin, produk darah, hormon, dan enzim jaringan biologis lainnya.
Tim sales kami akan mengirimkan quotation lengkap (harga, lead time, biaya instalasi) dalam 1×24 jam kerja.
