Foto produk resmi · 4 tampilan
General Lab

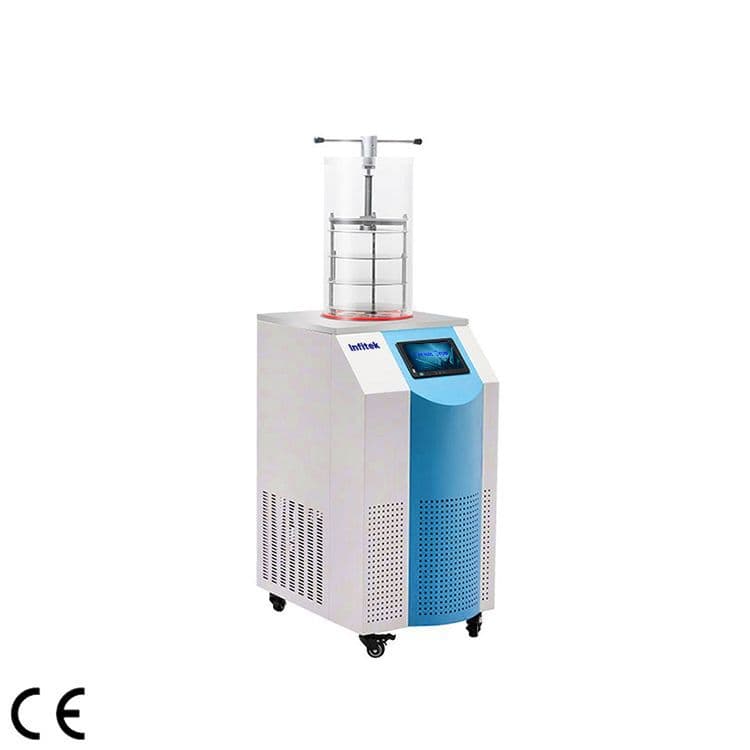

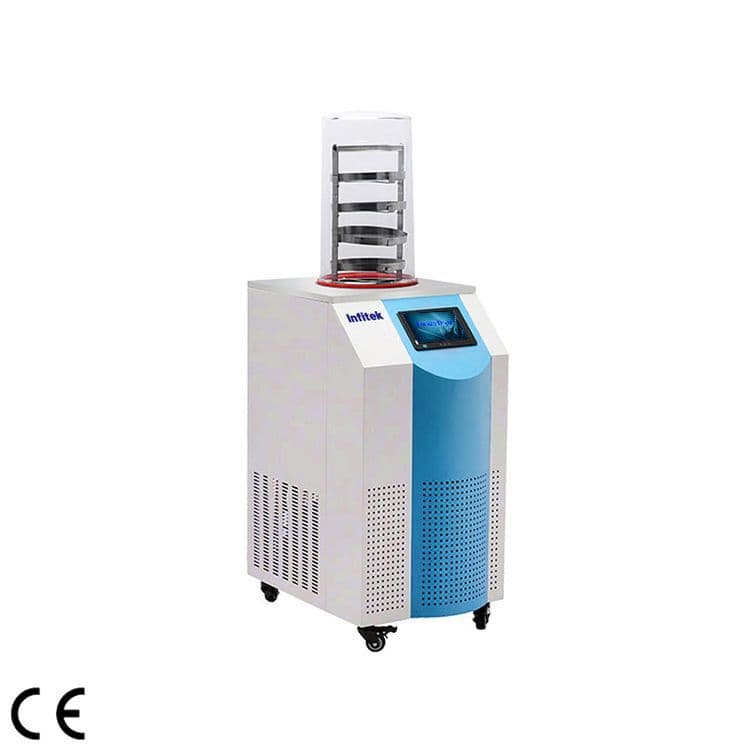

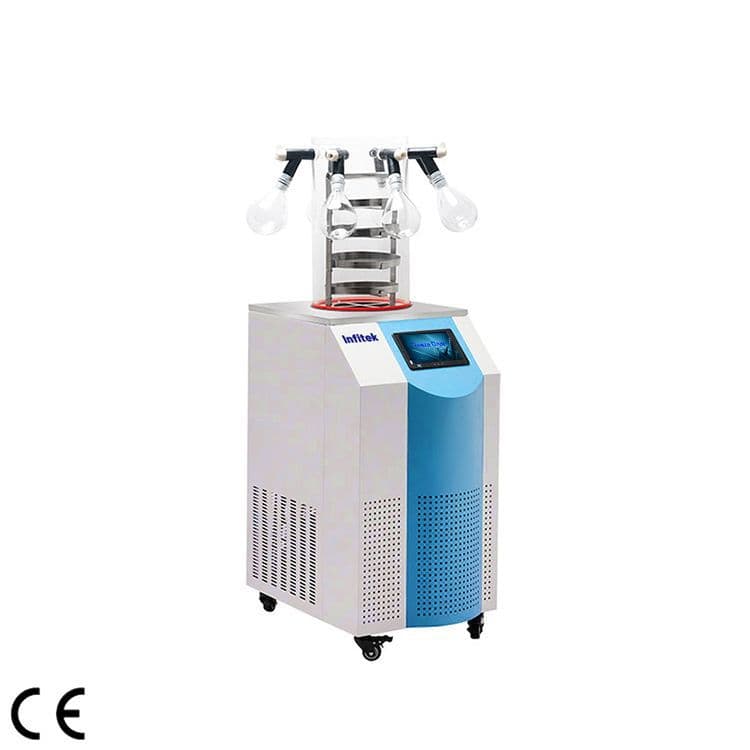

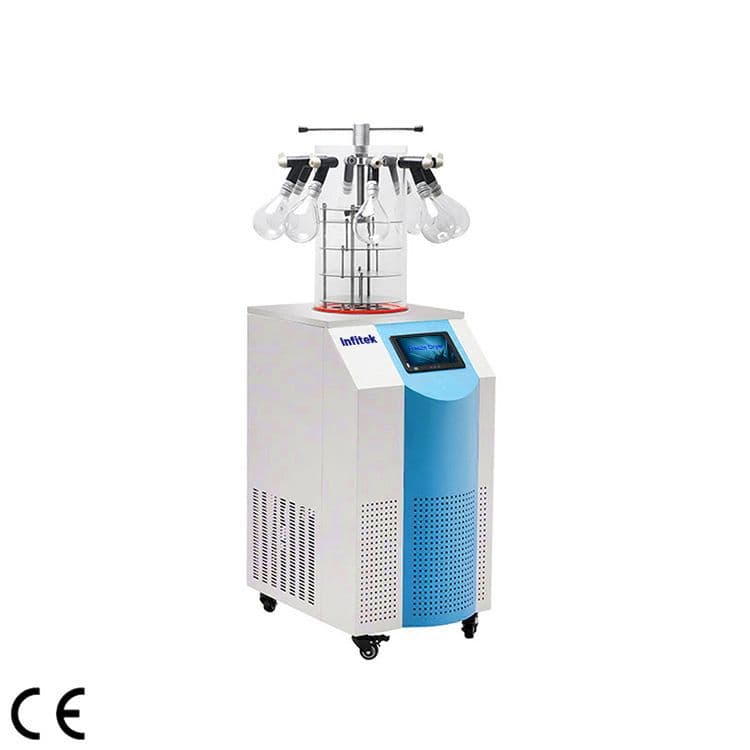

Floor Freeze Dryer LYO60V-2/LYO80V-2 Series memiliki suhu condenser akhir -55°C atau -80°C, luas area freeze drying 0.135–0.27 m², kapasitas ice condenser 6 kg/24 jam, kapasitas muat material 1350–2700 mL, serta sistem kendali microprocessor dengan layar sentuh besar.
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Geser tabel ke samping untuk melihat seluruh 4 varian model.
| Parameter | LYO60V-2S | LYO60V-2P | LYO60V-2T | LYO60V-2PT |
|---|---|---|---|---|
| Model | LYO80V-2S | LYO80V-2P | LYO80V-2T | LYO80V-2PT |
| Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold |
| Freeze Drying Area(m²) | 0.18~0.27 | 0.18~0.27 | 0.135 | 0.135 |
| Tray(Qty) | Standard configuration includes 4 layers, and up to 6 layers can be optionally selected | Standard configuration includes 4 layers, and up to 6 layers can be optionally selected | 3pcs | 3pcs |
| Tray Dimensions(Diameter*H)(mm) | Φ240*20 | Φ240*20 | Φ240*20 | Φ240*20 |
| Height Between Trays(mm) | 81/51 | 81/51 | 71(average) | 71(average) |
| Condenser Temperature (℃) | -60/-80 | -60/-80 | -60/-80 | -60/-80 |
| Condenser Capacity (L) | 28 | 28 | 28 | 28 |
| Condenser Dimensions(Diameter*H)(mm) | Φ300*420 | Φ300*420 | Φ300*420 | Φ300*420 |
| Vacuum Degree(no-loading) (Pa) | ≤5 | ≤5 | ≤5 | ≤5 |
| Ice Condenser Capacity (kg/24h) | 6 | 6 | 6 | 6 |
| Loading Capacity/ Shelf (mL) | 450 | 450 | 450 | 450 |
| Total Loading Capacity of Material Tray(mL) | 1800~2700 | 1800~2700 | 1350 | 1350 |
| Drying Chamber Dimensions(standard) | Circle:Φ300mm;Height:Φ450mm | Circle:Φ300mm;Height:Φ450mm | Circle:Φ300mm;Height:Φ450mm | Circle:Φ300mm;Height:Φ450mm |
| Total Qty. Of Vial Φ22 | 360 | 270 | 270 | 270 |
| Total Qty. Of Vial Φ16 | 740 | 555 | 555 | 555 |
| Total Qty. Of Vial Φ12 | 1320 | 990 | 990 | 990 |
| Refrigerant | CFC-free | CFC-free | CFC-free | CFC-free |
| Standard Accessories | Vacuum pump 4L/s,14.4m³/h,material tray,material rack,PC cover,nitrogen gas filling valve,oil mist filter(for all modes) Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 2P/PT) | Vacuum pump 4L/s,14.4m³/h,material tray,material rack,PC cover,nitrogen gas filling valve,oil mist filter(for all modes) Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 2P/PT) | Vacuum pump 4L/s,14.4m³/h,material tray,material rack,PC cover,nitrogen gas filling valve,oil mist filter(for all modes) Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 2P/PT) | Vacuum pump 4L/s,14.4m³/h,material tray,material rack,PC cover,nitrogen gas filling valve,oil mist filter(for all modes) Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 2P/PT) |
| Optional Function & Accessories | Electric defrost function(for all models) 800mL wide-mouth flask(only for model 2P/PT) | Electric defrost function(for all models) 800mL wide-mouth flask(only for model 2P/PT) | Electric defrost function(for all models) 800mL wide-mouth flask(only for model 2P/PT) | Electric defrost function(for all models) 800mL wide-mouth flask(only for model 2P/PT) |
| Consumption | 1.2kW(-60℃)/1.7kW(-80℃) | 1.2kW(-60℃)/1.7kW(-80℃) | 1.2kW(-60℃)/1.7kW(-80℃) | 1.2kW(-60℃)/1.7kW(-80℃) |
| Electricity | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz |
| External Dimensions(W*D*H)(mm) | 560*710*940/1390 | 560*710*940/1390 | 560*710*940/1450 | 560*710*940/1450 |
| Shipping Dimensions(W*D*H) — Main body | 790*630*1180mm | 790*630*1180mm | 790*630*1180mm | 790*630*1180mm |
| Shipping Dimensions(W*D*H) — Drying chamber | 410*410*640mm | 410*410*640mm | 410*410*640mm | 410*410*640mm |
| Shipping Dimensions(W*D*H) — Vacuum pump | 220*580*370mm | 220*580*370mm | 220*580*370mm | 220*580*370mm |
| Gross Weight | 150kg(-60℃)/170kg(-80℃) | 150kg(-60℃)/170kg(-80℃) | 150kg(-60℃)/170kg(-80℃) | 150kg(-60℃)/170kg(-80℃) |
Freeze dryer seri laboratorium ini cocok untuk uji freeze drying sampel biomedis laboratorium.
Banyak digunakan di industri obat, produk biologis, kimia, dan makanan.
Teknologi freeze-drying diterapkan pada zat yang sensitif terhadap panas seperti antibiotik, vaksin, produk darah, hormon, dan enzim jaringan biologis lainnya.
Tim sales kami akan mengirimkan quotation lengkap (harga, lead time, biaya instalasi) dalam 1×24 jam kerja.
