General Lab

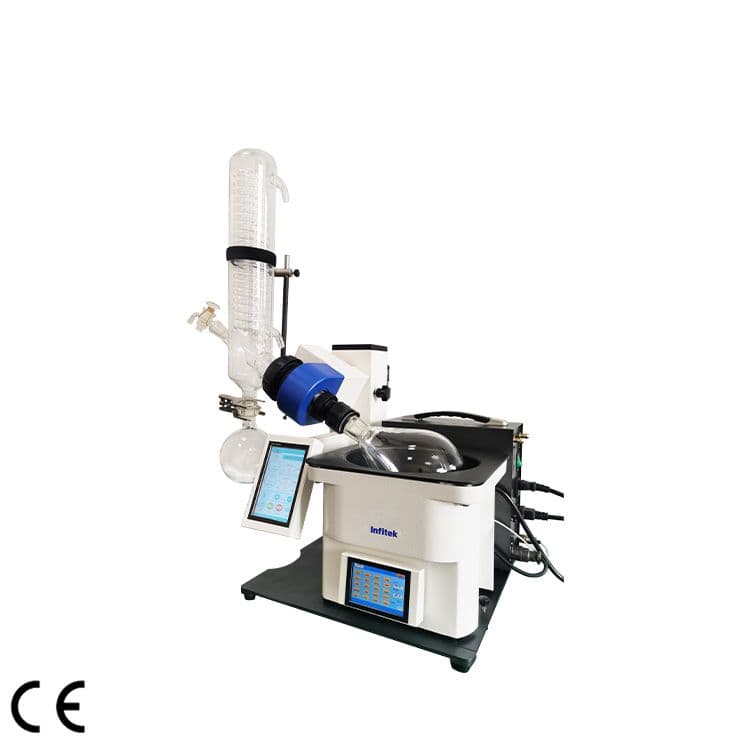

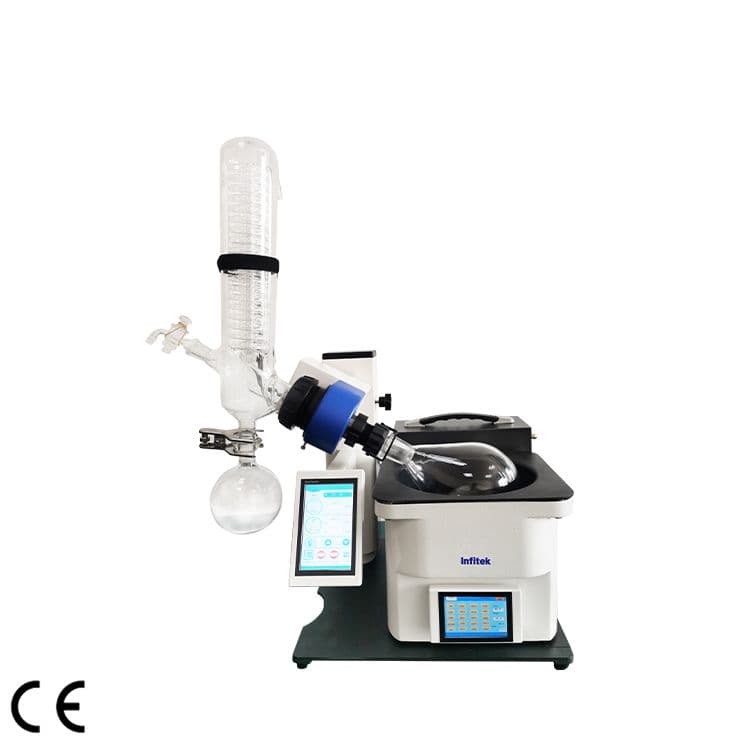

Rotary Evaporator, lab-scale, REV-1000AX
REV-1000AX
Rotary Evaporator lab-scale REV-1000AX memiliki volume evaporating flask 1L, mekanisme automatic lift, kecepatan rotasi 0~310RPM, dan rentang suhu RT.~210℃.
Yang akan anda dapatkan jika membeli Rotary Evaporator, lab-scale, REV-1000AX dari kami
- ✓
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
- ✓
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
- ✓
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
- ✓
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Spesifikasi Teknis
| Parameter | REV-1000AX |
|---|---|
| Use Range of Sample Bottle | 25~1000ml |
| Rotation Speed | Touch screen display, 0~310rpm |
| Vacuum Control | Vacuum control range; 0~-0.1Mpa (0~1013mbar); precision ±1Mpa (, vacuum degree can be controlled arbitrarily. Automatic pressure release at the end of the experiment, jog/one-key pressure release function; 10-stage gradient distillation program control, step-by-step control of vacuum degree during synthesis experiment chromatography vacuum distillation; commonly used 40 kinds of experimental data storage, one-key start, fast distillation. |
| Evaporation Capacity | Max.25mL/min(H₂O) |
| Equipment Vacuum | The vacuum inside the equipment can reach 2mbar. |
| Temperature Adjustment Range | Water and oil dual-purpose bath, water bath: room temperature ~99°C, ±0.5; oil bath: room temperature ~210°C, ±2°C; |
| Material of Heating Bath | One-time forming Teflon coating, easy to clean, corrosion resistance, high temperature resistance; heating pot with safety handle, shell heat insulation, prevent scald, moderate volume, rapid heating; equipped with a transparent protective cover: heat preservation, energy saving, explosion-proof, anti-corrosion splash. |
| Bath Dimension | φ20*11.5cm (approximately 3.5L), the sliding base of the heating bath can freely move 120mm to the right. |
| Sample Bottle | Forward rotation, reverse rotation, intermittent forward and reverse rotation, the intermittent time can be adjusted from 0 to 60s, which can be used for drying powder samples. |
| Temperature Control | Dual touch screen control system, digital display, over-temperature warning, automatic lifting, automatic pressure relief, and equipment shutdown functions. |
| Temperature Setting | Touch-type digital input setting, dual-screen control display, convenient and quick. |
| Safety Performance | Anti-dry over-temperature early warning, abnormal rotating motor early warning, automatic lifting of the sample bottle to the highest; Timing function (0~999min), when the preset time is reached, the equipment will automatically release the pressure, lift and lower the evaporating bottle automatically, and the equipment will be standby for early warning and protection. |
| Heater | Fully enclosed heater. Power 1kW |
| Sealing Parts | Imported PTFE special synthetic material is selected, and the abrasive tool is synthesized through special process technology to enhance sealing, corrosion resistance and wear resistance. |
| Condenser | Vertical, three-layer ball mill mouth serpentine condenser, condensation area 0.18m², with drop point and backflow design (effectively improve work efficiency). |
| Ambient Temperature | 5~40℃ |
| Electricity | AC220V/50Hz |
| External Dimensions | 55*36*64cm |
| Shipping Dimensions | 67*50*46.5cm |
| G.W, | 34kg |
| Factory Configuration | Sample bottle 1L*1; recovery bottle S35# ball mill mouth collection bottle 0.5L*1. |
Fitur Utama
- Layar sentuh berwarna besar menampilkan multi-data dengan antarmuka menu.
- Penyimpanan data eksperimen yang umum digunakan, start dengan satu tombol, distilasi cepat.
- Heating bath berlapis Teflon, mudah dibersihkan, tahan korosi, dan tahan suhu tinggi.
- Fungsi operasi aman dalam mode unattended, otomatis standby setelah eksperimen.
- Desain khusus knob bottle return membuat proses pengembalian botol sederhana dan praktis.
- Sistem kontrol vakum bawaan, pelepasan tekanan otomatis, pengaturan yang cepat dan praktis.
- Struktur yang ringkas dan kecil sehingga menghemat ruang.
- Automatic lifting dilengkapi fungsi safety stop dan desain fungsi pewaktu.
- Dilengkapi ekspor data melalui antarmuka USB dan fungsi pencetakan.
- Condenser tube vertikal dirancang dengan drip point dan perangkat anti-backflow.
- Glass shaft terintegrasi, start yang stabil, dapat beroperasi searah maupun berlawanan arah.
- Proteksi anti-dry, peringatan pemadaman akibat suhu berlebih, dan proteksi standby otomatis.
- Heating bath dirancang dengan pegangan aman untuk mencegah luka bakar.
- Bagian sealing: PTFE impor hasil proses cetak khusus.
- Heating pot berlapis Teflon, mudah dibersihkan, tahan korosi, dan tahan suhu tinggi.
- Desain khusus knob bottle return membuat proses pengembalian botol sederhana dan praktis.
