Foto produk resmi · 2 tampilan
General Lab

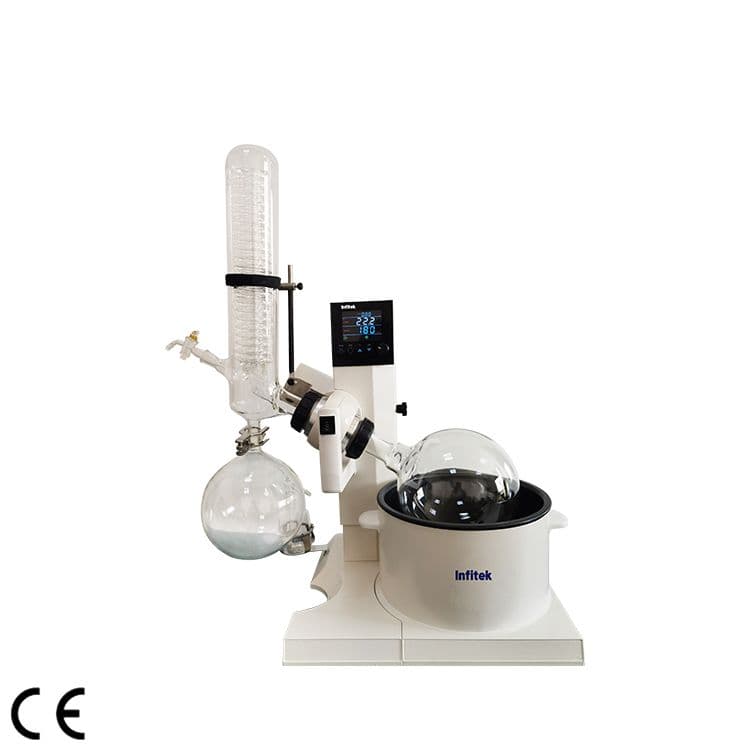

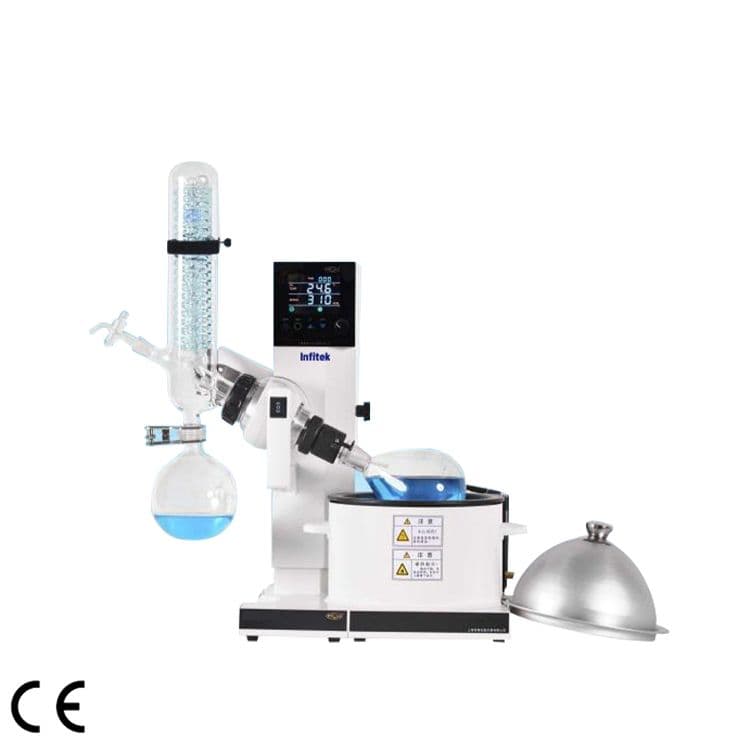

Rotary Evaporator lab-scale seri REV-2000AX, REV-3000AX, REV-5000AX memiliki volume evaporating flask 0.25-5L, mekanisme automatic lift, kecepatan rotasi 0~310rpm, rentang suhu water bath RT-99℃ dan oil bath RT-210℃, dengan tingkat proteksi IP42.
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.

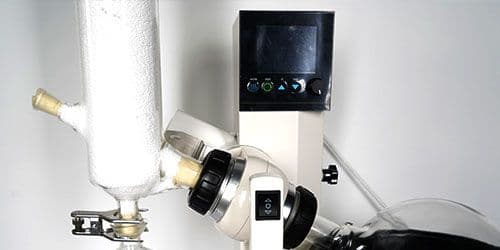

Rotary evaporator merupakan instrumen evaporasi di laboratorium yang terdiri atas motor, distillation bottle, heating pot, condenser tube, dan komponen lainnya.
Geser tabel ke samping untuk melihat seluruh 3 varian model.
| Parameter | REV-2000AX | REV-3000AX | REV-5000AX |
|---|---|---|---|
| Rotating Speed | Color LCD Screen; 0~310rpm | Color LCD Screen; 0~310rpm | Color LCD Screen; 0~310rpm |
| Evap. Capacity | Max.25ml/min (H2O) | Max.27ml/min (H2O) | Max.27ml/min (H2O) |
| Temp. range/precision | Microcomputer PID controller; Water Bath: RT.-99℃±0.5℃；Oil Bath: RT.-210℃±2℃ | Microcomputer PID controller; Water Bath: RT.-99℃±0.5℃；Oil Bath: RT.-210℃±2℃ | Microcomputer PID controller; Water Bath: RT.-99℃±0.5℃；Oil Bath: RT.-210℃±2℃ |
| Bath Material | Integral Teflon compound heating bath with safe handle, which prevents from scald; the medium sized bath volume makes distillation fast. | Integral Teflon compound heating bath with safe handle, which prevents from scald; the medium sized bath volume makes distillation fast. | Integral Teflon compound heating bath with safe handle, which prevents from scald; the medium sized bath volume makes distillation fast. |
| Bath Size | φ23*13cm(about 5.4L) | φ26*15cm(about 8L) | φ26*15cm(about 8L) |
| Positive&Negative Rotating | Intermittent positive and negative rotating function with timing function (0-60s) for drying process. | Intermittent positive and negative rotating function with timing function (0-60s) for drying process. | Intermittent positive and negative rotating function with timing function (0-60s) for drying process. |
| Lift | Automatic balance lifting which can be controlled by either button-press or Color LCD screen; the lifting length is 150mm, with fixed safety distance of 60mm, which prevents crashing. | Automatic balance lifting which can be controlled by either button-press or Color LCD screen; the lifting length is 150mm, with fixed safety distance of 60mm, which prevents crashing. | Automatic balance lifting which can be controlled by either button-press or Color LCD screen; the lifting length is 150mm, with fixed safety distance of 60mm, which prevents crashing. |
| Temp. Set | Rotating switch coding for temperature setting with big LCD screen display. | Rotating switch coding for temperature setting with big LCD screen display. | Rotating switch coding for temperature setting with big LCD screen display. |
| Safety | Anti-dry prevention function which makes flask automatic lifting; instrument will stop at the set timing (0-999min); automatic lifting and standby alarm protection in abnormal or over temperature state. | Anti-dry prevention function which makes flask automatic lifting; instrument will stop at the set timing (0-999min); automatic lifting and standby alarm protection in abnormal or over temperature state. | Anti-dry prevention function which makes flask automatic lifting; instrument will stop at the set timing (0-999min); automatic lifting and standby alarm protection in abnormal or over temperature state. |
| Heater Power | 1.5kW | 1.5kW | 1.5kW |
| Evaporating flask Volume | 0.25–2L | 0.25–3L | 0.25–3L |
| Sealing | Imported PTFE and special complex compounded with special technique, which ensures good sealing and improves the anti-corrosion and durability property. | Imported PTFE and special complex compounded with special technique, which ensures good sealing and improves the anti-corrosion and durability property. | Imported PTFE and special complex compounded with special technique, which ensures good sealing and improves the anti-corrosion and durability property. |
| Condenser | Vertical 3-layered coil condenser with big condensation area, equipped with drip point and backflow prevention, which effectively increases the evaporation efficiency. | Vertical 3-layered coil condenser with big condensation area, equipped with drip point and backflow prevention, which effectively increases the evaporation efficiency. | Vertical 3-layered coil condenser with big condensation area, equipped with drip point and backflow prevention, which effectively increases the evaporation efficiency. |
| Condense Area | 0.18㎡ | 0.21㎡ | 0.21㎡ |
| Environment Temp. | 5℃~40℃ | 5℃~40℃ | 5℃~40℃ |
| IP (Ingress Protection) | IP42 | IP42 | IP42 |
| Factory Configuration | 29# grinding mouth integrated rotating shaft *1； Sample Bottle: 29# Eggplant bottle 1L*1； Recycling Bottle: S35 ball grinding mouth collection bottle 1L*1 | Flange interface to 29# grinding interface*1； Sample Bottle: 3L flange mouth round bottom bottle *1, 29# eggplant bottle 1L*1； Recycling Bottle:S35 ball grinding mouth collection bottle 2L*1 | Flange interface to 29# grinding interface*1； Sample Bottle: 3L flange mouth round bottom bottle *1, 29# eggplant bottle 1L*1； Recycling Bottle:S35 ball grinding mouth collection bottle 2L*1 |
| Electricity | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz |
| Instrument Dimension(W*D*H)(mm) | 660*420*830 | 660*420*830 | 700*430*860 |
| Package Dimension(W*D*H)(mm) | 740*670*530 | 740*670*530 | 710*645*790 |
| G.W.(kg) | 30 | 30 | 35 |
| Optional: Vacuum controller for precise vacuum control. Warning: The protection cap is only for water bath experiment. Please do not use in oil bath experiment. | Optional: Vacuum controller for precise vacuum control. Warning: The protection cap is only for water bath experiment. Please do not use in oil bath experiment. | Optional: Vacuum controller for precise vacuum control. Warning: The protection cap is only for water bath experiment. Please do not use in oil bath experiment. | Optional: Vacuum controller for precise vacuum control. Warning: The protection cap is only for water bath experiment. Please do not use in oil bath experiment. |
Tim sales kami akan mengirimkan quotation lengkap (harga, lead time, biaya instalasi) dalam 1×24 jam kerja.
