Foto produk resmi · 4 tampilan
General Lab

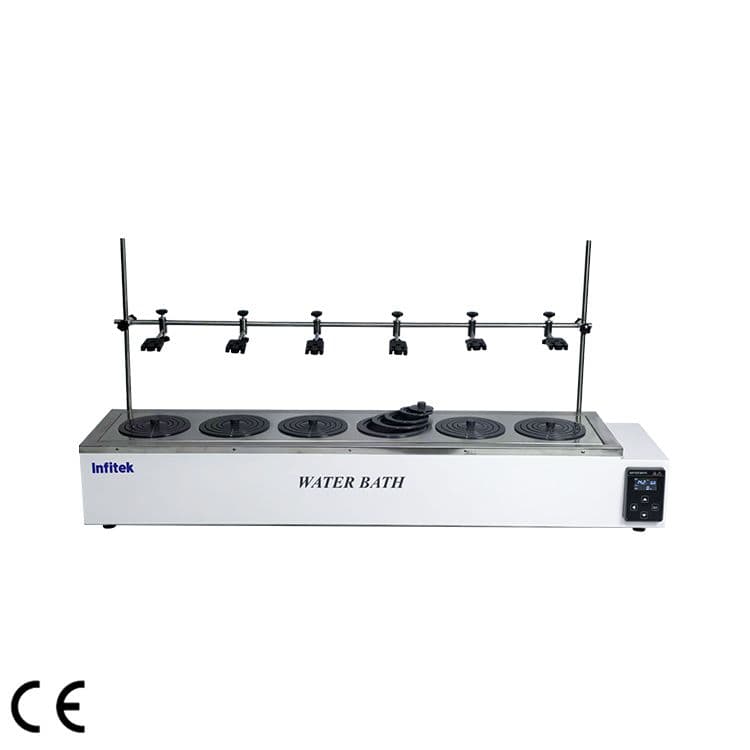

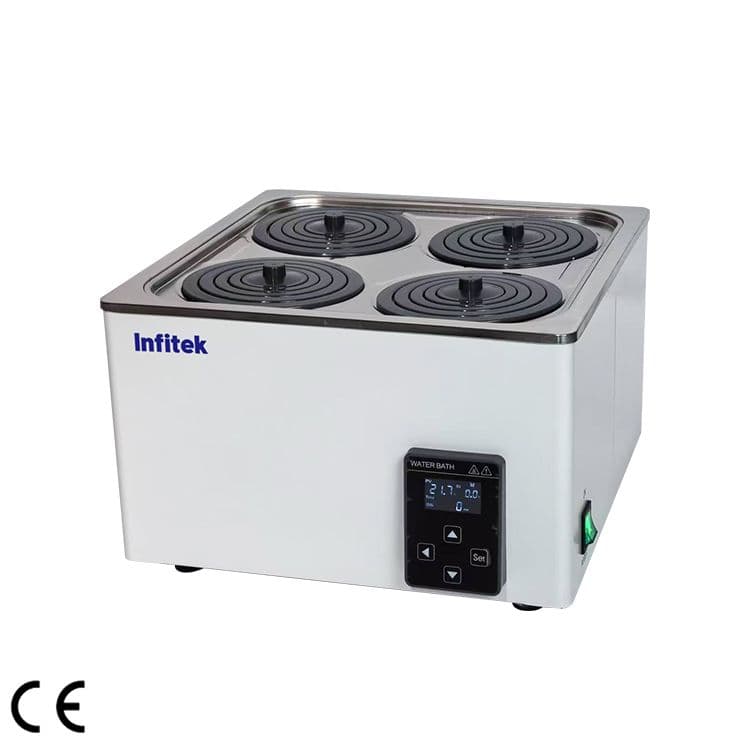

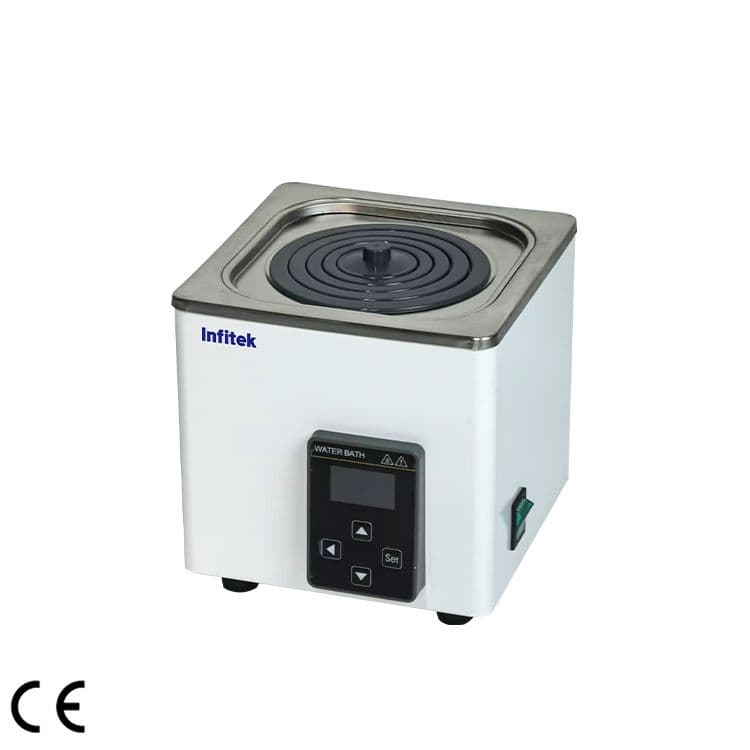

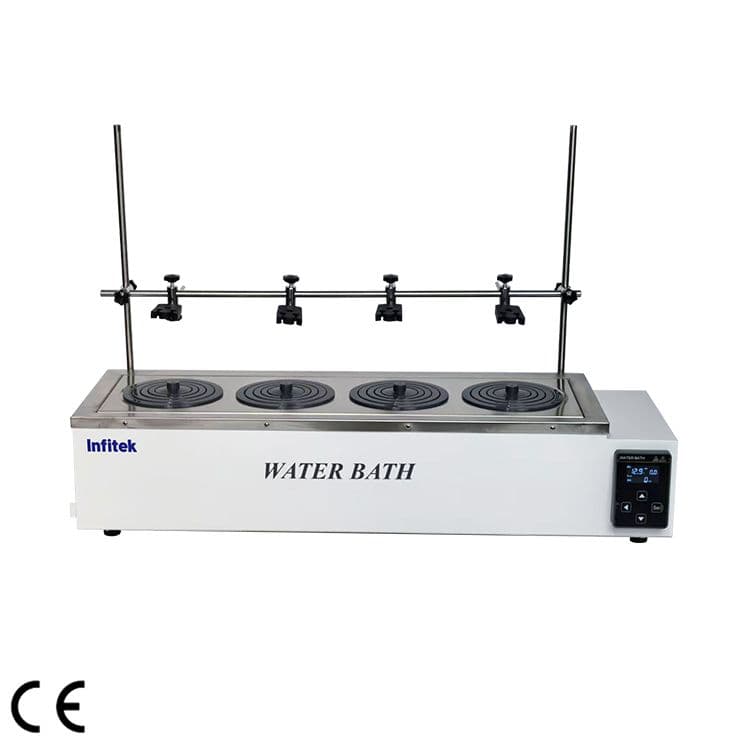

WB-S Series adalah Water Bath 1-2 baris dengan 1-12 lubang, volume 3,3L hingga 35,4L, rentang suhu RT hingga 99,9°C, fluktuasi suhu ±5°C, dan timing 0-999 menit (opsional) untuk distilasi, pengeringan, dan pemekatan bahan kimia atau biologis.
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Dirancang untuk digunakan dalam distilasi, pengeringan, pemekatan, dan pemanasan rendam bahan kimia atau produk biologis.
Geser tabel ke samping untuk melihat seluruh 9 varian model.
| Parameter | WB-S1 | WB-S2 | WB-S11.4 | WB-S11.6 | WB-S11.8 | WB-S4D | WB-S6D | WB-S8D | WB-S12D |
|---|---|---|---|---|---|---|---|---|---|
| Classification Specification | 1holes | 1holes | 2holes | 4holes | 4holes | 6holes | 6holes | 8holes | 2row& 4holes |
| Tank material | 304 stainless steel (one-piece seamless integrally formed tank) | 304 stainless steel (one-piece seamless integrally formed tank) | 304 stainless steel (one-piece seamless integrally formed tank) | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel (one-piece seamless integrally formed tank) |
| Cover | 4-hole concentric ring lid (1 set = 1 lid + 4 nested rings), outer diameter 120 mm; ring apertures: 97/77/58/40 mm | 4-hole concentric ring lid (1 set = 1 lid + 4 nested rings), outer diameter 120 mm; ring apertures: 97/77/58/40 mm | 4-hole concentric ring lid (1 set = 1 lid + 4 nested rings), outer diameter 120 mm; ring apertures: 97/77/58/40 mm | 4-hole concentric ring lid (1 set = 1 lid + 4 nested rings), outer diameter 120 mm; ring apertures: 97/77/58/40 mm | 4-hole concentric ring lid (1 set = 1 lid + 4 nested rings), outer diameter 120 mm; ring apertures: 97/77/58/40 mm | 4-hole concentric ring lid (1 set = 1 lid + 4 nested rings), outer diameter 120 mm; ring apertures: 97/77/58/40 mm | 4-hole concentric ring lid (1 set = 1 lid + 4 nested rings), outer diameter 120 mm; ring apertures: 97/77/58/40 mm | 4-hole concentric ring lid (1 set = 1 lid + 4 nested rings), outer diameter 120 mm; ring apertures: 97/77/58/40 mm | 4-hole concentric ring lid (1 set = 1 lid + 4 nested rings), outer diameter 120 mm; ring apertures: 97/77/58/40 mm |
| Display | LCD display | LCD display | LCD display | LCD display | LCD display | LCD display | LCD display | LED display | LCD display |
| Available Diameter (D) | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Available Height (H) | 110 | 110 | 110 | 90 | 90 | 90 | 90 | 90 | 110 |
| Power (W) | 300 | 300 | 500 | 1200 | 1200 | 1800 | 1800 | 2200 | 1000 |
| Working Chamber (mm) | 160*160*140 | 160*160*140 | 300*160*140 | 610*160*130 | 610*160*130 | 900*160*130 | 900*160*130 | 1200*160*130 | 300*300*140 |
| volume (L) | 3.3 | 3.3 | 6.7 | 12.6 | 12.6 | 18.7 | 18.7 | 24.9 | 12.6 |
| Temperature Range (℃) | RT.-99.9 | RT.-99.9 | RT.-99.9 | RT.-99.9 | RT.-99.9 | RT.-99.9 | RT.-99.9 | RT.-99.9 | RT.-99.9 |
| Temperature Fluctuation (℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Timing Range ( minutes ) | 0~ 999 | 0~ 999 | 0~ 999 | 0~ 999 | 0~ 999 | 0~ 999 | 0~ 999 | 0~ 999 | 0~ 999 |
| Electricity | 220V±10%, 50/60Hz; 110V,60Hz (Optional) | 220V±10%, 50/60Hz; 110V,60Hz (Optional) | 220V±10%, 50/60Hz; 110V,60Hz (Optional) | 220V±10%, 50/60Hz; 110V,60Hz (Optional) | 220V±10%, 50/60Hz; 110V,60Hz (Optional) | 220V±10%, 50/60Hz; 110V,60Hz (Optional) | 220V±10%, 50/60Hz; 110V,60Hz (Optional) | 220V±10%, 50/60Hz; 110V,60Hz (Optional) | 220V±10%, 50/60Hz; 110V,60Hz (Optional) |
| External Dimension (mm) | 200*200*220 | 345*210*220 | 345*210*220 | 345*210*220 | 770*230*170 | 770*230*170 | 1060*230*170 | 1380*250*170 | 1380*250*170 |
| N.W./G.W.(kg) | 2/3 | 4/5 | 4/5 | 4/5 | 10/11 | 10/11 | 13/14.5 | 18/20 | 18/20 |
| Shipping Dimension (mm) | 260*260*280 | 400*260*280 | 400*260*280 | 400*260*280 | 830*300*230 | 830*300*230 | 1150*300*230 | 1460*300*230 | 1460*300*230 |
Tim sales kami akan mengirimkan quotation lengkap (harga, lead time, biaya instalasi) dalam 1×24 jam kerja.
