Deskripsi Produk:
Mode pengaturan suhu elektronik dengan kecepatan yang dapat disesuaikan secara stepless (tanpa jenjang)

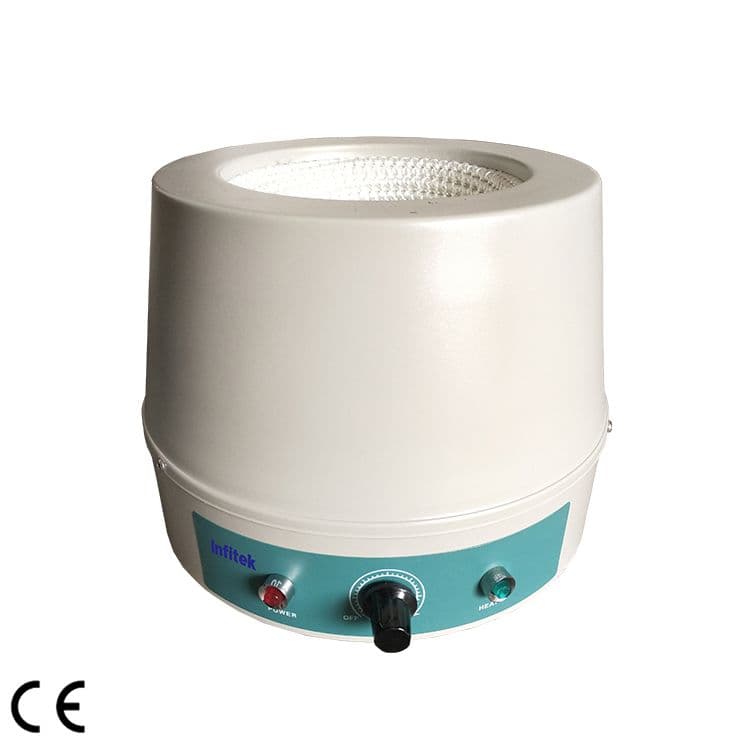

Foto produk resmi · 2 tampilan
General Lab
Electronic Control Heating Mantle, HMA Series
HMA-1HMA-2HMA-5HMA-10HMA-20HMA-40HMA-60HMA-100HMA-200HMA-400
Heating Mantle HMA Series memiliki kapasitas 50–20.000 ml, suhu permukaan maksimum 450°C, elemen pemanas kawat nichrome, dan mode pemanasan konduksi permukaan (surface heat-conduction).
Yang akan anda dapatkan jika membeli Electronic Control Heating Mantle, HMA Series dari kami
- ✓
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
- ✓
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
- ✓
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
- ✓
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Spesifikasi Teknis
Geser tabel ke samping untuk melihat seluruh 10 varian model.
| Parameter | HMA-1 | HMA-2 | HMA-5 | HMA-10 | HMA-20 | HMA-40 | HMA-60 | HMA-100 | HMA-200 | HMA-400 |
|---|---|---|---|---|---|---|---|---|---|---|
| Capacity(ml) | 50 | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 |
| Heating Mode | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction |
| Surface Max. Temp.(℃) | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
| Heating element | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire |
| Thermal insulation cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton |
| Shell | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying |
| Heat power (kW) | 0.08 | 0.1 | 0.15 | 0.25 | 0.35 | 0.45 | 0.6 | 0.8 | 1.2 | 2.5 |
| Working Mode | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous |
| Exterior Size (mm) | ϕ220×165 | ϕ220×165 | ϕ220×165 | ϕ220×165 | ϕ280×220 | ϕ330×230 | ϕ340×245 | ϕ350×250 | ϕ425×320 | ϕ470×340 |
| Packing Size (mm) | 250*250*240 | 250*250*240 | 250*250*240 | 250*250*240 | 290x290x300 | 340x340x350 | 360*360*310 | 390x390x310 | 430x430x350 | 510x510x380 |
| Voltage(V) | 100 ~ 120V or 200 ~ 240V | 100 ~ 120V or 200 ~ 240V | 100 ~ 120V or 200 ~ 240V | 100 ~ 120V or 200 ~ 240V | 100 ~ 120V or 200 ~ 240V | 100 ~ 120V or 200 ~ 240V | 200 ~240V | 200 ~240V | 200 ~240V | 200 ~240V |
| N.W.(Kg) | 2.5 | 2.5 | 2.5 | 2.5 | 5.5 | 6.5 | 7.5 | 8 | 9.8 | 16 |
| G.W. (Kg) | 2.8 | 2.8 | 2.8 | 2.8 | 6 | 7 | 8 | 9.2 | 12 | 20 |
Butuh penawaran resmi untuk produk ini?
Tim sales kami akan mengirimkan quotation lengkap (harga, lead time, biaya instalasi) dalam 1×24 jam kerja.
