General Lab

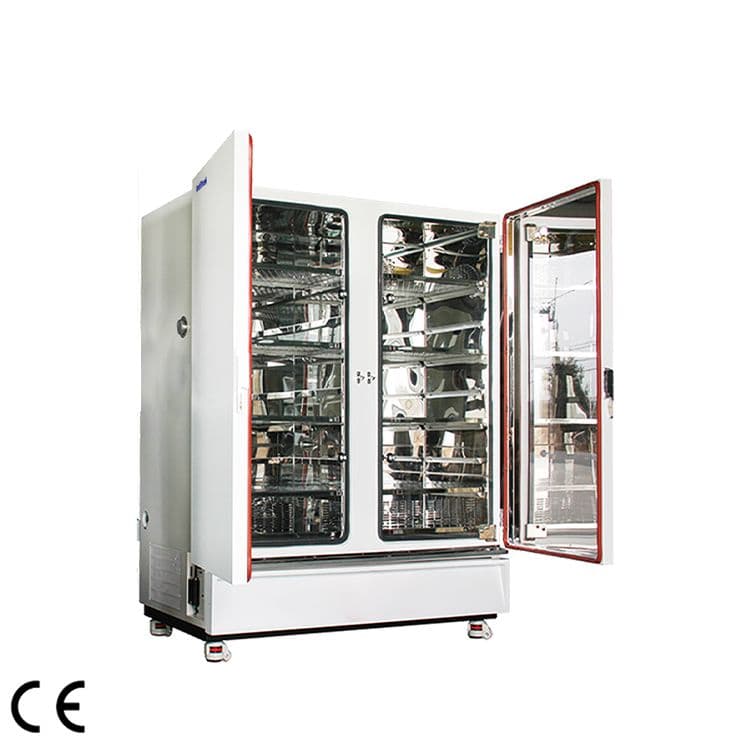

Medicine Stability Testing Chamber, ICB-MS-HL Series
Medicine Stability Testing Chamber ICB-MS-HL Series tersedia dalam kapasitas 150L, 250L, 400L, 500L, dan 1000L, dengan rentang suhu 10–65°C dan kelembapan 15–95%RH. Menggunakan teknologi pendinginan inverter canggih dan lima lapis proteksi, termasuk proteksi kebocoran arus kritis.
Yang akan anda dapatkan jika membeli Medicine Stability Testing Chamber, ICB-MS-HL Series dari kami
- ✓
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
- ✓
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
- ✓
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
- ✓
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Spesifikasi Teknis
Geser tabel ke samping untuk melihat seluruh 5 varian model.
| Parameter | ICB-MS150-HL | ICB-MS250-HL | ICB-MS400-HL | ICB-MS500-HL | ICB-MS1000-HL |
|---|---|---|---|---|---|
| Type | Single-door | Single-door | Single-door | Single-door | Double-door |
| Shelf (Standard) | 3/6 | 3/7 | 3/10 | 4/11 | 4/8 |
| Capacity (L) | 150 | 250 | 400 | 500 | 1000 |
| Temperature Range (℃) | 10～65 | 10～65 | 10～65 | 10～65 | 10～65 |
| Temperature Fluctuation (℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Temperature Uniformity (℃) | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 |
| Humidity Range (RH) | 15～95% | 15～95% | 15～95% | 15～95% | 15～95% |
| Humidity Fluctuation | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% |
| Humidity Uniformity | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% |
| Electricity | 220V, 50Hz/60Hz | 220V, 50Hz/60Hz | 220V, 50Hz/60Hz | 220V, 50Hz/60Hz | 220V, 50Hz/60Hz |
| Power (kW) | 1.5 | 1.8 | 2.0 | 2.2 | 3.0 |
| Water Source | Purified water, Resistivity≥0.5MΩ·cm | Purified water, Resistivity≥0.5MΩ·cm | Purified water, Resistivity≥0.5MΩ·cm | Purified water, Resistivity≥0.5MΩ·cm | Purified water, Resistivity≥0.5MΩ·cm |
| Ambient Temperature (℃) | 5 ~35 | 5 ~35 | 5 ~35 | 5 ~35 | 5 ~35 |
| Network | Connection via network port | Connection via network port | Connection via network port | Connection via network port | Connection via network port |
| Internal Dimensions (W*D*H) (mm) | 600*405*625 | 600*500*830 | 600*700*950 | 680*680*1080 | 1400*510*1400 |
| External Dimensions (W*D*H) (mm) | 780*830*1480 | 780*880*1650 | 780*1060*1750 | 860*1050*1850 | 1615*925*1975 |
Hardware Configuration
| Compressor | Imported variable frequency compressor, energy saving over 50% |
|---|---|
| Evaporator | Coating process with doubled corrosion resistance |
| Humidifier | Adopts PTC heating element and features automatic protection function |
| Controller | 7-inch color programmable touch screen |
| Controller | Three-level authority: Configurable for more levels |
| Controller | Audit trail: Storage of operation records |
| Controller | Frequency conversion: Display the frequency output |
| Controller | Prompt Reminder: Periodic maintenance reminders |
| Humidity Sensor | High-precision capacitive |
| Humidity Sensor | Genuine imported |
| Water System | Automatic water circulation |
| Water System | Equipped with water level scale |
| Alarm System | On-site audible and visual alarm |
| Structural Material | Interior: 304 stainless steel |
| Structural Material | Polyurethane foam insulation |
| Double Door | Inner door: Tempered glass |
| Double Door | With door heating to prevent condensation |
| Safety Protection | Five layers of protection |
| Safety Protection | Including independent over-temperature protection |
Software Configuration
| Data Storage | Built-in storage hard drive, USB export |
|---|---|
| Data Storage | More than 5 years |
| Data Printing | Dot matrix micro-printer |
| Data Printing | Long-term storage |
| Data Network Version | Server version |
| Data Network Version | Complies with FDA 21 CFR Part 11 |
Fitur Utama
- Performa: Keseragaman suhu yang unggul membuat chamber ini tetap memenuhi persyaratan uji stabilitas ICH pada beban penuh bahkan setelah bertahun-tahun pemakaian.
- Keandalan: Menawarkan fluktuasi dan keseragaman suhu yang unggul.
- Kecerdasan: Selain kendali yang lebih stabil, dilengkapi pengingat perawatan yang lebih lengkap.
- Efisiensi: Dengan teknologi pendinginan inverter canggih, konsumsi energi berkurang lebih dari 50% dibandingkan generasi sebelumnya.
- Keamanan: Lima lapis proteksi, termasuk proteksi kebocoran arus kritis.
Butuh penawaran resmi untuk produk ini?
Tim sales kami akan mengirimkan quotation lengkap (harga, lead time, biaya instalasi) dalam 1×24 jam kerja.
