Medicine Stability Testing Chamber, ICB-MS-HLL Series — Inkubator Laboratorium

Foto produk resmi · 3 tampilan

General Lab

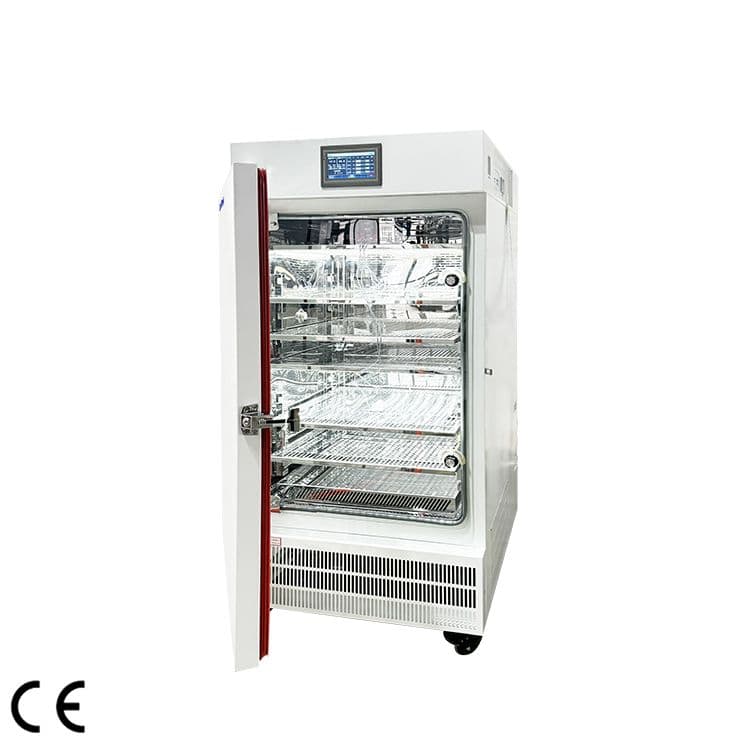

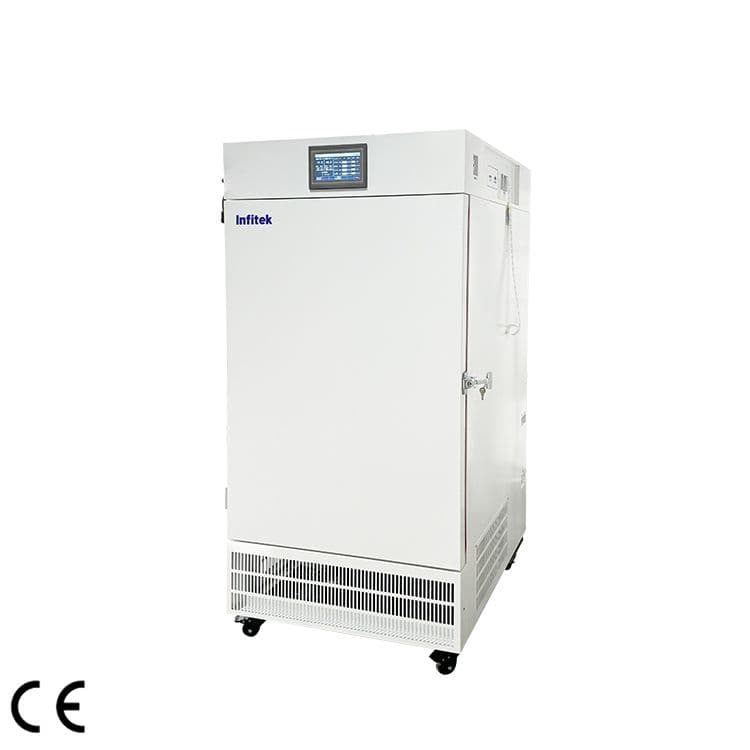

Medicine Stability Testing Chamber, ICB-MS-HLL Series

ICB-MS150-HLLICB-MS250-HLLICB-MS400-HLLICB-MS500-HLL

Medicine Stability Testing Chamber ICB-MS-HLL Series tersedia dalam kapasitas 150L, 250L, 400L, dan 500L, dengan rentang suhu 15–65°C dan kelembapan 20–95%RH, dilengkapi cahaya tampak dan UVA.

Yang akan anda dapatkan jika membeli Medicine Stability Testing Chamber, ICB-MS-HLL Series dari kami

  • ✓

    Garansi Resmi Prinsipal

    Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.

  • ✓

    Instalasi & Training

    Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.

  • ✓

    Dukungan Teknis & Sparepart

    Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.

  • ✓

    Opsi Kalibrasi

    Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.

Tanya via WhatsAppMinta Quotation

Spesifikasi Teknis

Geser tabel ke samping untuk melihat seluruh 4 varian model.

ParameterICB-MS150-HLLICB-MS250-HLLICB-MS400-HLLICB-MS500-HLL
Capacity (L)150250400500
Shelf (Standard)3/63/73/104/11
Temperature Range (℃)15～6515～6515～6515～65
Temperature Fluctuation (℃)±1±1±1±1
Temperature Uniformity (℃)±2±2±2±2
Humidity Range (RH)20~95%20~95%20~95%20~95%
Visible LightIlluminance Range: 100~8,000 LuxIlluminance Range: 100~8,000 LuxIlluminance Range: 100~8,000 LuxIlluminance Range: 100~8,000 Lux
Visible LightIlluminance Uniformity: 4,500 ± 500 LuxIlluminance Uniformity: 4,500 ± 500 LuxIlluminance Uniformity: 4,500 ± 500 LuxIlluminance Uniformity: 4,500 ± 500 Lux
Visible LightTotal Illuminance: ≥ 1.2 × 10⁶ Lux·hrTotal Illuminance: ≥ 1.2 × 10⁶ Lux·hrTotal Illuminance: ≥ 1.2 × 10⁶ Lux·hrTotal Illuminance: ≥ 1.2 × 10⁶ Lux·hr
UVAIrradiance Range: 0.84~1.0 W/m²Irradiance Range: 0.84~1.0 W/m²Irradiance Range: 0.84~1.0 W/m²Irradiance Range: 0.84~1.0 W/m²
UVATotal UVA: ≥ 200 W·hr/m²Total UVA: ≥ 200 W·hr/m²Total UVA: ≥ 200 W·hr/m²Total UVA: ≥ 200 W·hr/m²
Electricity220V, 50Hz/60Hz220V, 50Hz/60Hz220V, 50Hz/60Hz220V, 50Hz/60Hz
Power (kW)1.51.82.02.2
Ambient Temperature (℃)5 ~355 ~355 ~355 ~35
NetworkConnection via network portConnection via network portConnection via network portConnection via network port
Internal Dimensions (W*D*H) (mm)600*405*625600*500*830600*700*950680*680*1080
External Dimensions (W*D*H) (mm)780*830*1480780*880*1650780*1060*1750860*1050*1850

Hardware Configuration

CompressorImported fully enclosed compressor
CompressorHigh efficiency, low noise
EvaporatorCoating process with doubled corrosion resistance
Controller7-inch color programmable touch screen
ControllerThree-level authority: Configurable for more levels
ControllerAudit trail: Storage of operation records
ControllerFrequency conversion: Display the frequency output
ControllerPrompt Reminder: Periodic maintenance reminders
Alarm SystemOn-site audible and visual alarm
Alarm SystemRemote information alarm (optional)
Structural MaterialInterior: 304 stainless steel
Structural MaterialPolyurethane foam insulation
Double DoorInner door: Tempered glass
Double DoorInner wall of outer door: SUS304 stainless steel
Safety ProtectionFive layers of protection
Safety ProtectionIncluding independent over-temperature protection

Software Configuration

Data StorageBuilt-in storage hard drive, USB export
Data Storage5 years
Data PrintingDot matrix micro-printer
Data PrintingLong-term storage
Data Network VersionServer version
Data Network VersionComplies with FDA 21 CFR Part 11
