Foto produk resmi · 3 tampilan
General Lab

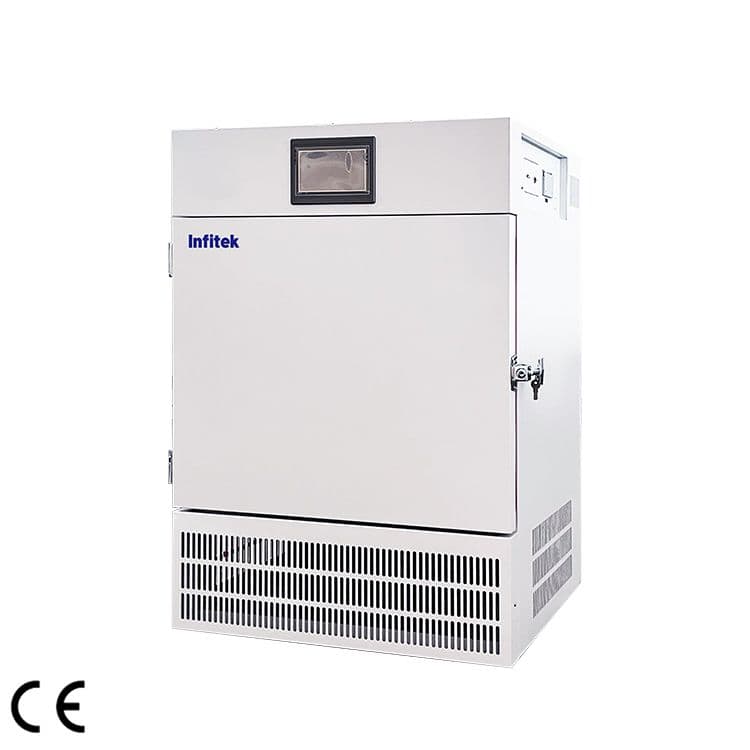

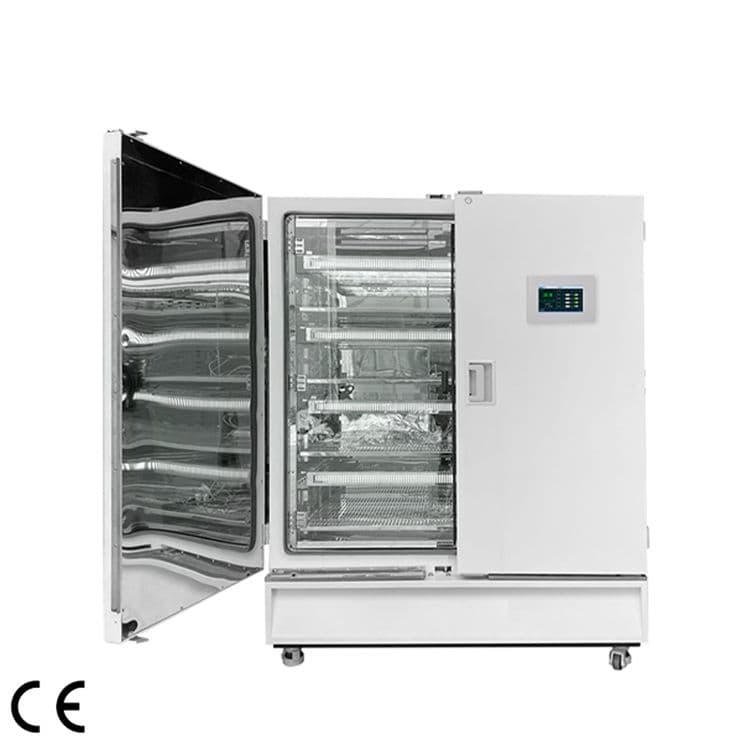

Medicine Stability Testing Chamber, ICB-MS-LL Series
Medicine Stability Testing Chamber ICB-MS-LL Series tersedia dalam kapasitas 150L, 500L, dan 1000L dengan rentang suhu 15–50°C, dilengkapi cahaya tampak dan UVA. Iluminasi tiap rak dapat disetel secara independen, didukung tiga lapis proteksi keamanan termasuk proteksi kebocoran arus kritis.
Yang akan anda dapatkan jika membeli Medicine Stability Testing Chamber, ICB-MS-LL Series dari kami
- ✓
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
- ✓
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
- ✓
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
- ✓
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Spesifikasi Teknis
Geser tabel ke samping untuk melihat seluruh 3 varian model.
| Parameter | ICB-MS150-LL | ICB-MS500-LL | ICB-MS1000-LL |
|---|---|---|---|
| Capacity (L) | 150 | 500 | 1000 |
| Temperature Range (℃) | 15～50 | 15～50 | 15～50 |
| Temperature Fluctuation (℃) | ±1 | ±1 | ±1 |
| Temperature Uniformity (℃) | ±2 (same level) | ±2 (same level) | ±2 (same level) |
| Visible Light | Illuminance Range: 100~8,000 Lux | Illuminance Range: 100~8,000 Lux | Illuminance Range: 100~8,000 Lux |
| Visible Light | Illuminance Uniformity: 4,500 ± 500 Lux | Illuminance Uniformity: 4,500 ± 500 Lux | Illuminance Uniformity: 4,500 ± 500 Lux |
| Visible Light | Total Illuminance: ≥ 1.2 × 10⁶ Lux·hr | Total Illuminance: ≥ 1.2 × 10⁶ Lux·hr | Total Illuminance: ≥ 1.2 × 10⁶ Lux·hr |
| UVA | Irradiance Range: 0.84~5 W/m² | Irradiance Range: 0.84~5 W/m² | Irradiance Range: 0.84~5 W/m² |
| UVA | Total UVA: ≥ 200 W·hr/m² | Total UVA: ≥ 200 W·hr/m² | Total UVA: ≥ 200 W·hr/m² |
| UVA | UVA Spectral Range: 320 ~ 400nm | UVA Spectral Range: 320 ~ 400nm | UVA Spectral Range: 320 ~ 400nm |
| Electricity | 220V, 50Hz/60Hz | 220V, 50Hz/60Hz | 220V, 50Hz/60Hz |
| Power (kW) | 1.5 | 2.1 | 2.5 |
| Ambient Temperature (℃) | 5 ~35 | 5 ~35 | 5 ~35 |
| Network | Connection via network port | Connection via network port | Connection via network port |
| Internal Dimensions (W*D*H) (mm) | 650*490*500 | 680*680*1080 | 1360*490*1360 |
| External Dimensions (W*D*H) (mm) | 830*790*1250 | 860*1050*1850 | 1620*910*1990 |
| Remarks | 1 layer of light, Visible Light + UVA | 3 layers of light, Visible Light + UVA | 3 layers of light, Visible Light + UVA |
Hardware Configuration
| Compressor | Imported fully enclosed compressor; High efficiency, low noise |
|---|---|
| Evaporator | Coating process with doubled corrosion resistance |
| Controller | 7-inch color programmable touch screen; Three-level authority: Configurable for more levels; Audit trail: Storage of operation records; Frequency conversion: Display the frequency output; Prompt Reminder: Periodic maintenance reminders |
| Alarm System | On-site audible and visual alarm; Remote information alarm (optional) |
| Structural Material | Interior: 304 stainless steel; Polyurethane foam insulation |
| Double Door | Inner door: Tempered glass; Inner wall of outer door: SUS304 stainless steel |
| Safety Protection | Three layers of protection; Including independent over-temperature protection |
Software Configuration
| Data Storage | Built-in storage hard drive, USB export |
|---|---|
| Data Storage | 5 years |
| Data Printing | Dot matrix micro-printer |
| Data Printing | Long-term storage |
| Data Network Version | Server version |
| Data Network Version | Complies with FDA 21 CFR Part 11 |
Fitur Utama
- Kendali Zona Independen: iluminasi tiap rak dapat disetel secara terpisah.
- Proteksi Keamanan Menyeluruh: tiga lapis proteksi keamanan, termasuk proteksi kebocoran arus kritis.
