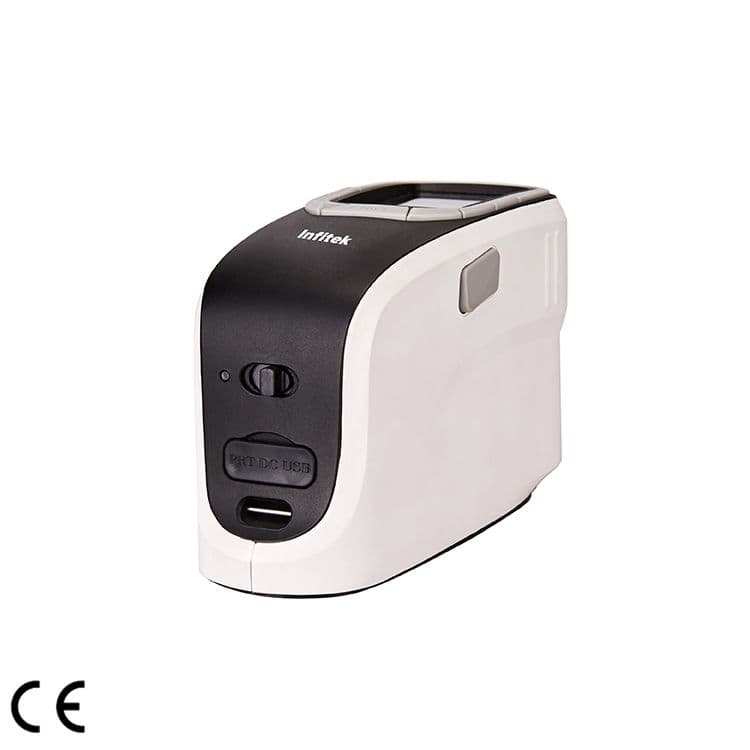

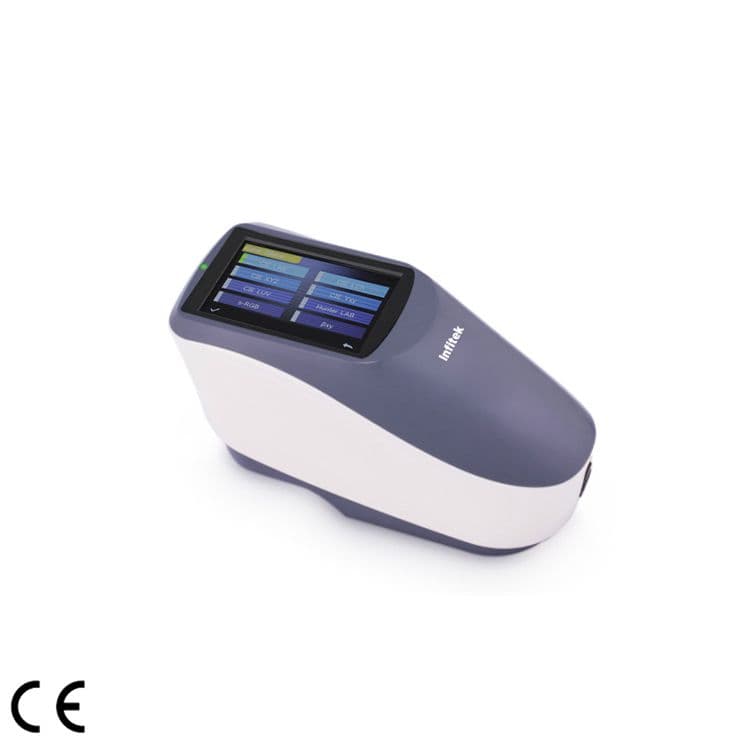

Grating Portable Spectrophotometer, SP-CLR456
SP-CLR456
SP-CLR456 adalah grating portable spectrophotometer dengan perangkat pemisah spektral concave grating, rentang panjang gelombang 400~700nm, pitch panjang gelombang 10nm, dan optik geometris 45/0.
Yang akan anda dapatkan jika membeli Grating Portable Spectrophotometer, SP-CLR456 dari kami
- ✓
Garansi Resmi Prinsipal
Unit didistribusikan resmi dengan garansi prinsipal sesuai ketentuan pabrikan.
- ✓
Instalasi & Training
Teknisi kami membantu instalasi dan pelatihan penggunaan alat di lokasi Anda.
- ✓
Dukungan Teknis & Sparepart
Layanan purna jual, konsultasi teknis, dan ketersediaan suku cadang.
- ✓
Opsi Kalibrasi
Tersedia layanan kalibrasi tertelusur untuk menjaga akurasi instrumen.
Spesifikasi Teknis
| Parameter | SP-CLR456 |
|---|---|
| Illumination/Observation system | SP-CLR456(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833 |
| Features | High accruacy spectrophotometer is used for accurate analysis and transmission of laboratory color.Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control, also for Fluorescence sample color measurement. It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually. |
| Integrating Sphere Size | Φ48mm |
| Light Source | Combined LED Light, UV Light |
| Spectral separation device | Concave Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | MAV:Φ8mm/Φ10mm; SAV:Φ4mm/Φ5mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE (Hunter) |
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO,AATCC,Hunter)， YI(ASTM D1925, ASTM 313), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, Supporting Colorimetric Polygon Tolerance |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30) |
| Display Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Measurement Time | About 1.5s |
| Repeatability | Spectral reflectance: MAV,Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | Within ΔE*ab 0.15(Average for 12 BCRA Series II color tiles) |
| Measurement mode | Single Measurement, Average Measurement(2-99) |
| Size(L*W*H) | 184*77*105mm |
| Weight | About 600g |
| Power source | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth 4.0 |
| Data memory | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Chinese,English |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover. |
| Optional Accessory | Micro Printer, Powder Test Box, Universal test components, Locating Plate |
| Notes: The specifications are subject to change without notice. | Notes: The specifications are subject to change without notice. |
Fitur Utama
- Tampilan menarik yang berpadu sempurna dengan desain struktur ergonomis;
- Optik geometris 45/0, sesuai dengan standar CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833;
- Menggunakan sumber cahaya LED kombinasi berusia pakai panjang dan berdaya rendah, termasuk UV/tanpa UV (including UV/excluding UV);
- Aperture opsional 4mm/8mm, menyesuaikan dengan lebih banyak jenis sampel uji;
- Mengukur spektra sampel dengan data Lab yang akurat, dapat digunakan untuk color matching dan transmisi warna yang presisi;
- Konfigurasi hardware elektronik tinggi: TFT color LCD 3,5 inci, capacitive touch screen, concave grating, CMOS image sensor double arrays 256 image element;
- Port USB yang serbaguna;
- Standard white calibration plate yang sangat tahan noda dan stabil;
- Ruang penyimpanan berkapasitas besar, lebih dari 30.000 data pengukuran;
- Dua standard observer angle, beragam illuminant, beragam color index, sesuai dengan beragam data kolorimetri standar, memenuhi berbagai kebutuhan pelanggan untuk pengukuran warna;
- PC software memiliki ekstensi fungsi yang andal.
- Dilengkapi pengaturan standard polygon tolerance bawaan dan gamut khusus untuk traffic sign; satu tombol untuk mengukur traffic road sign, marking line, brightness factor reflective film, dan chromaticity coordinate;
